67 61 007 Replacing Electric Motor With Gearbox (Rear) to Operate the Slide/Tilt Sunroof

67 61 007 Replacing Electric Motor With Gearbox (rear) To Operate The Slide/tilt Sunroof







Necessary preliminary work:
- Remove rear grab handles
- Remove trim panel for rear left and right roof pillar (C-pillar)
- Remove trim panel for rear left and right roof pillar (D-pillar)
- Remove complete interior roof light
- Detach edge protection in area of headliner

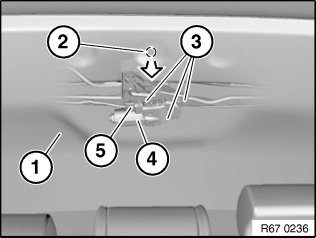

IMPORTANT: Do not under any circumstance kink headliner (1).

Unclip headliner (1) at retaining point (2) towards bottom and lower.

NOTE: Secure electric motor drive with gearbox (4) from falling out.

Release screws (3).

Tightening torque 54 13 01AZ.

NOTE: Screws (3) are microencapsulated and must replaced.

Remove electric motor with gearbox (4).

Unlock plug connection (5) and disconnect.







Installation note:

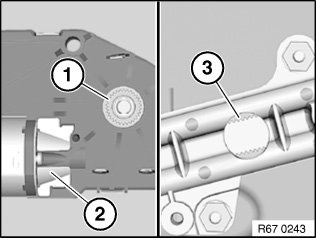

Insert gear wheel (1) of electric motor with gearbox (2) exactly in gearing (3).







Installation note:
- Initialise slide/tilt sunroof.
