37 14 511 Replacing Front Ride-Height Sensor

37 14 511 Replacing ride height sensor at front (all-wheel drive vehicle)







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).

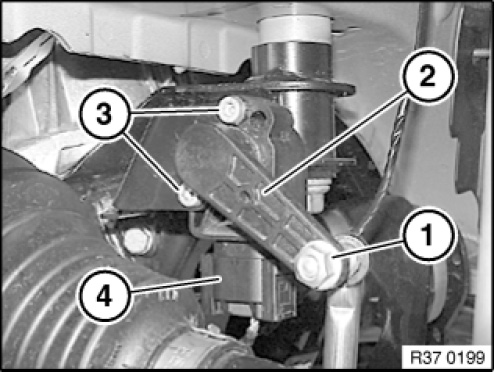

Release nut (1) and disconnect jointed rod.
Tightening torque 37 14 3AZ.

Installation note:
Replace nut.

Release screws (3), remove ride height sensor and disconnect plug connection (4).
Tightening torque 37 14 1AZ.

Installation note:
Sensor lever (2) must point from ride height sensor to left front wheel.







After installation:
- Check headlight adjustment, correct if necessary.
