Home >> BMW >> 2010 >> 335xi Coupe AWD (E92) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Restraints and Safety Systems >> Diagrams >> Electrical Diagrams >> Airbag Sensors

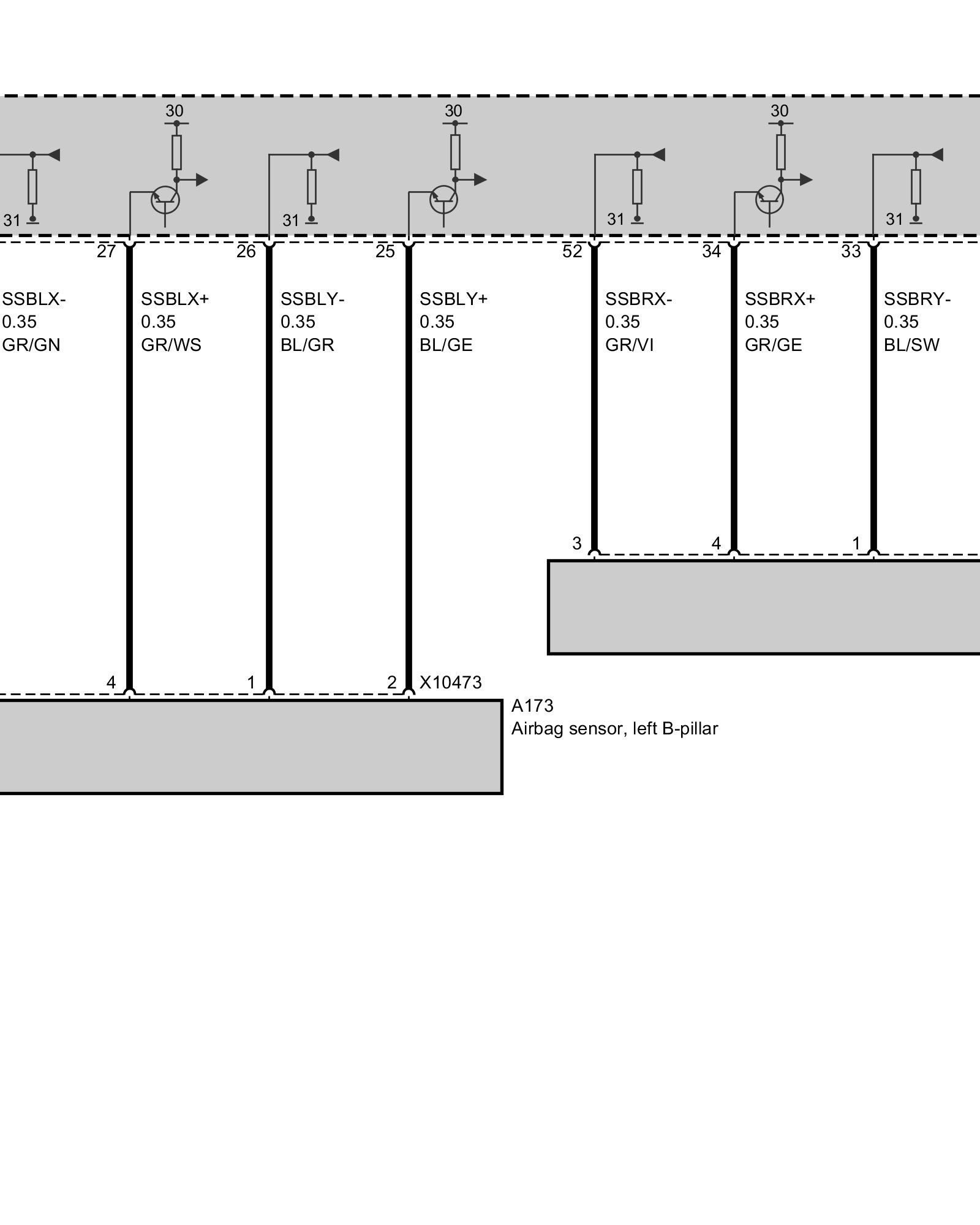

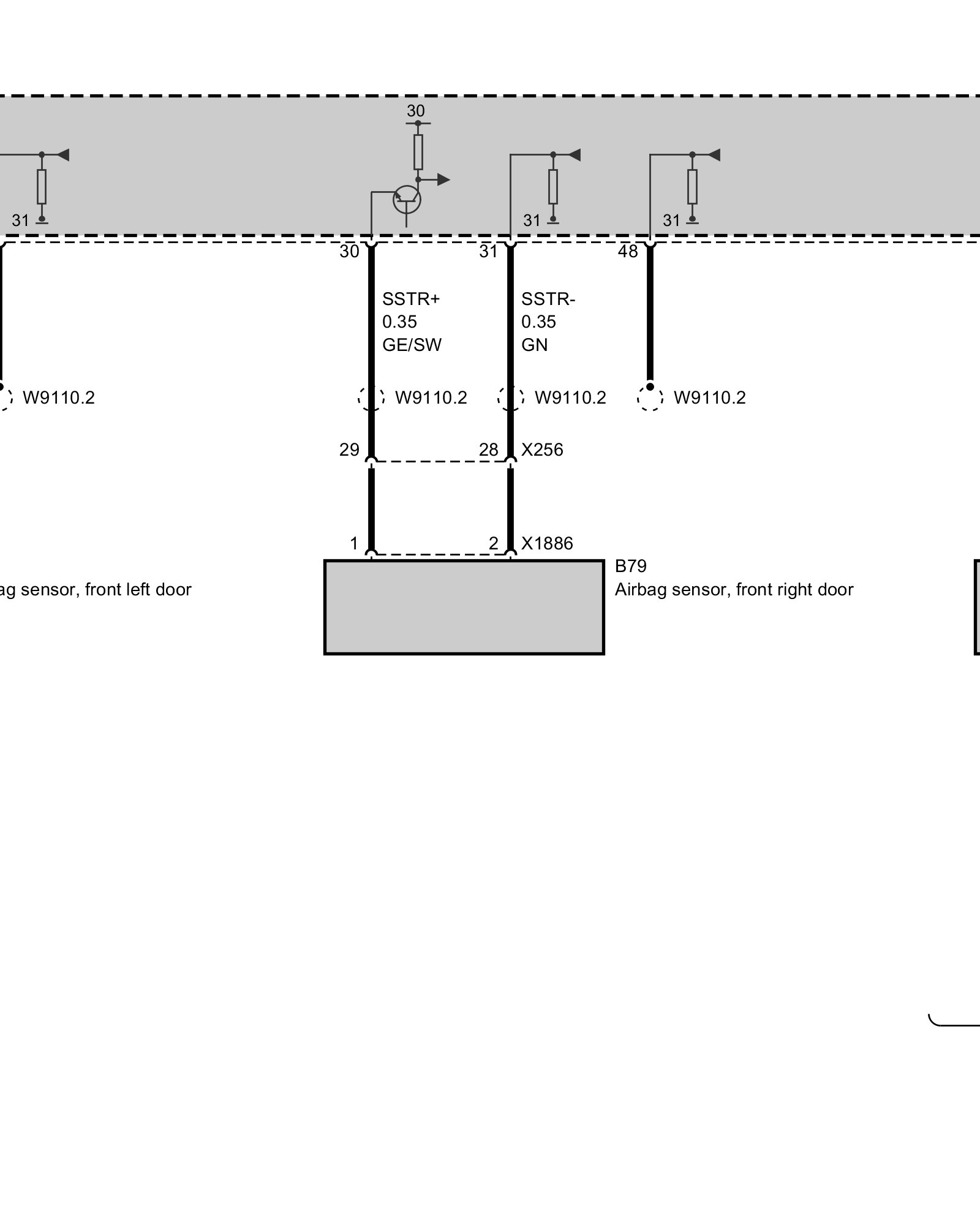

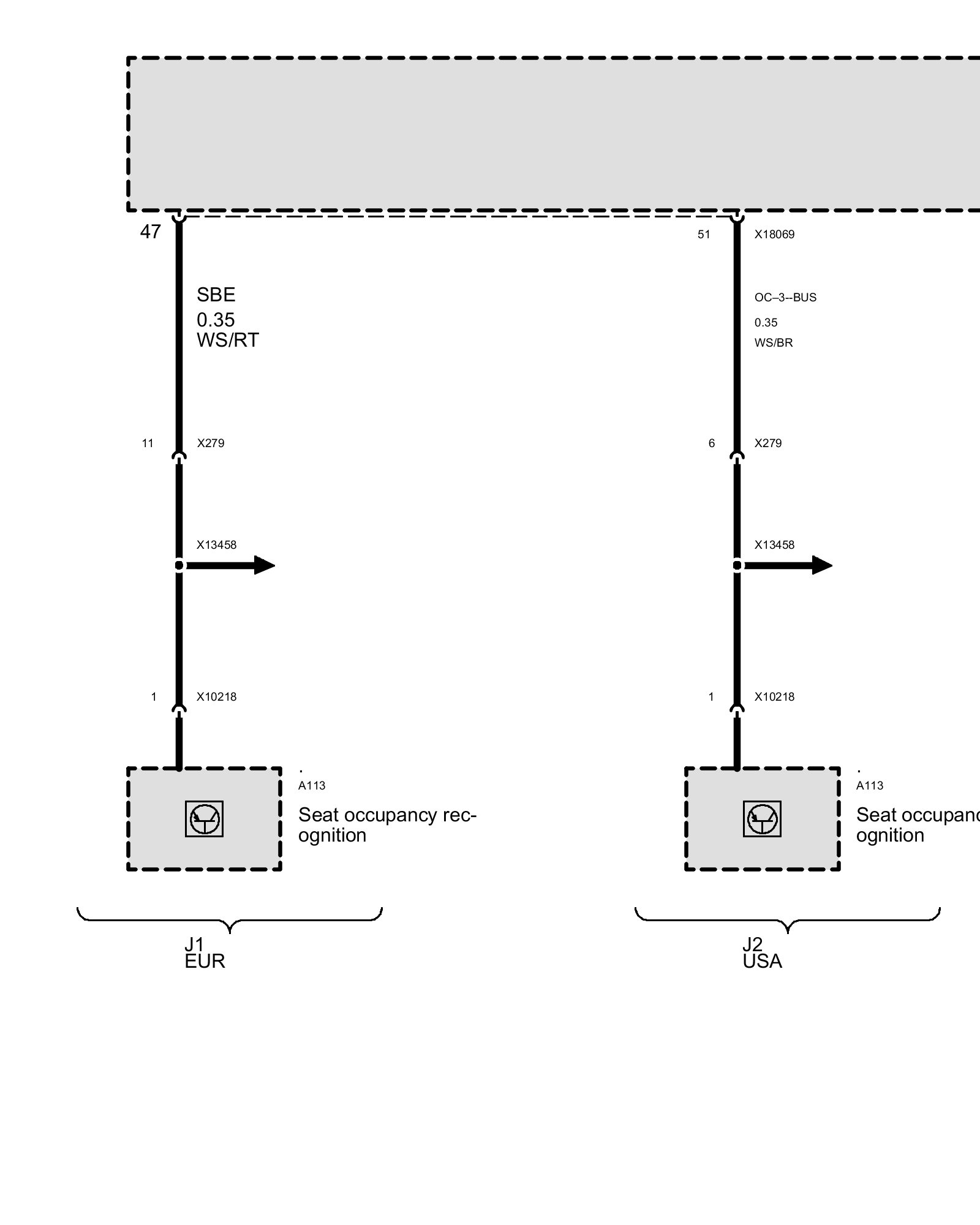

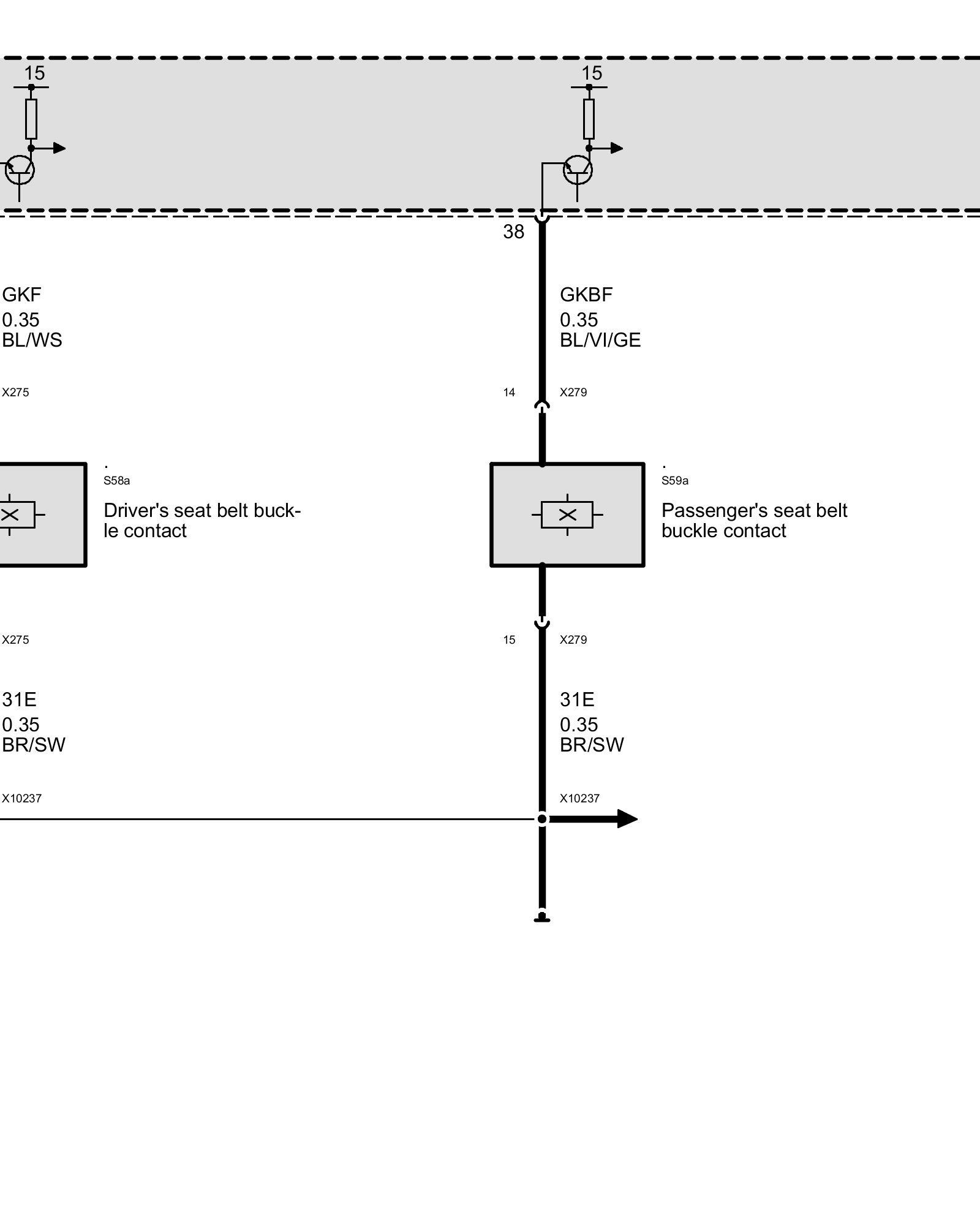

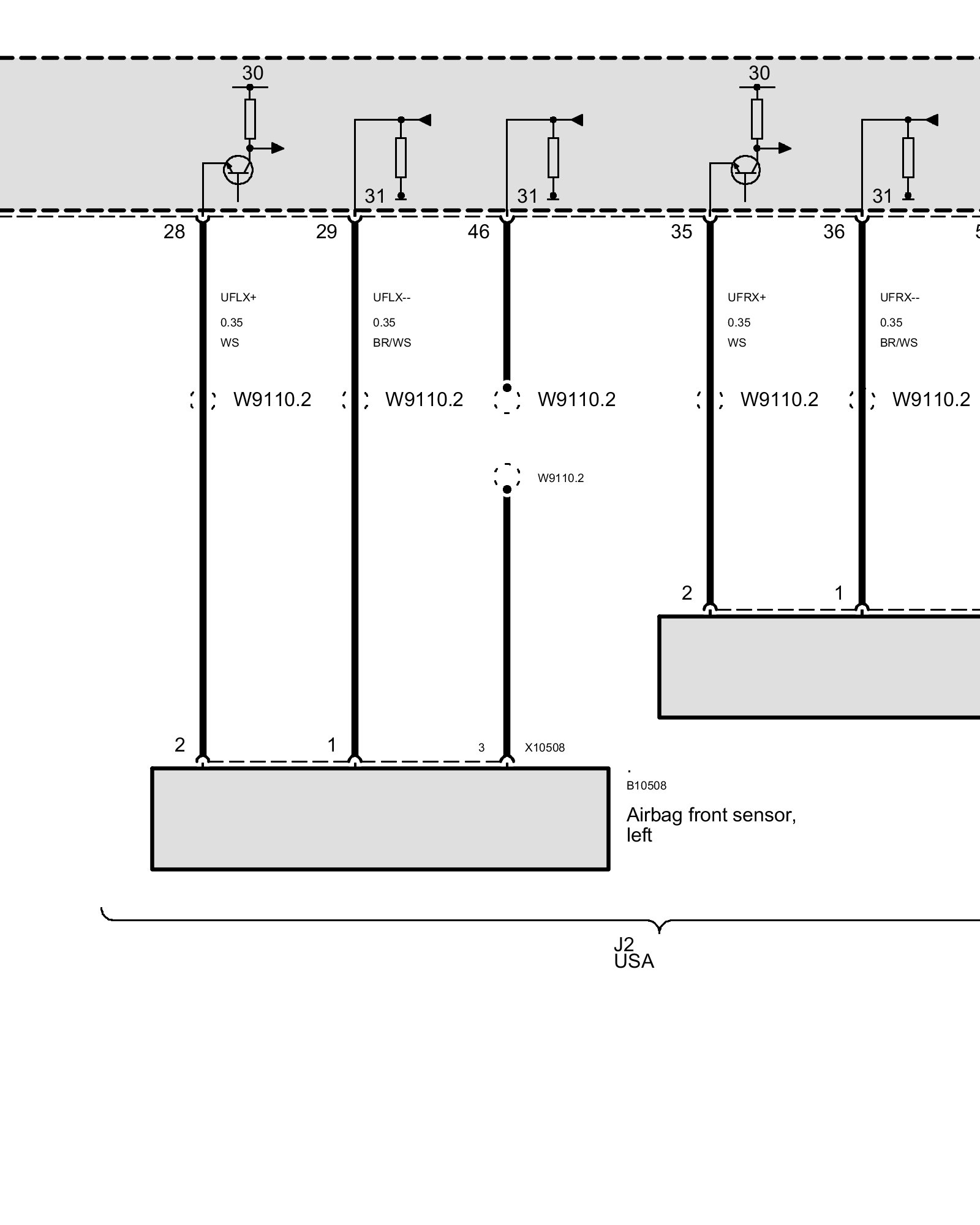

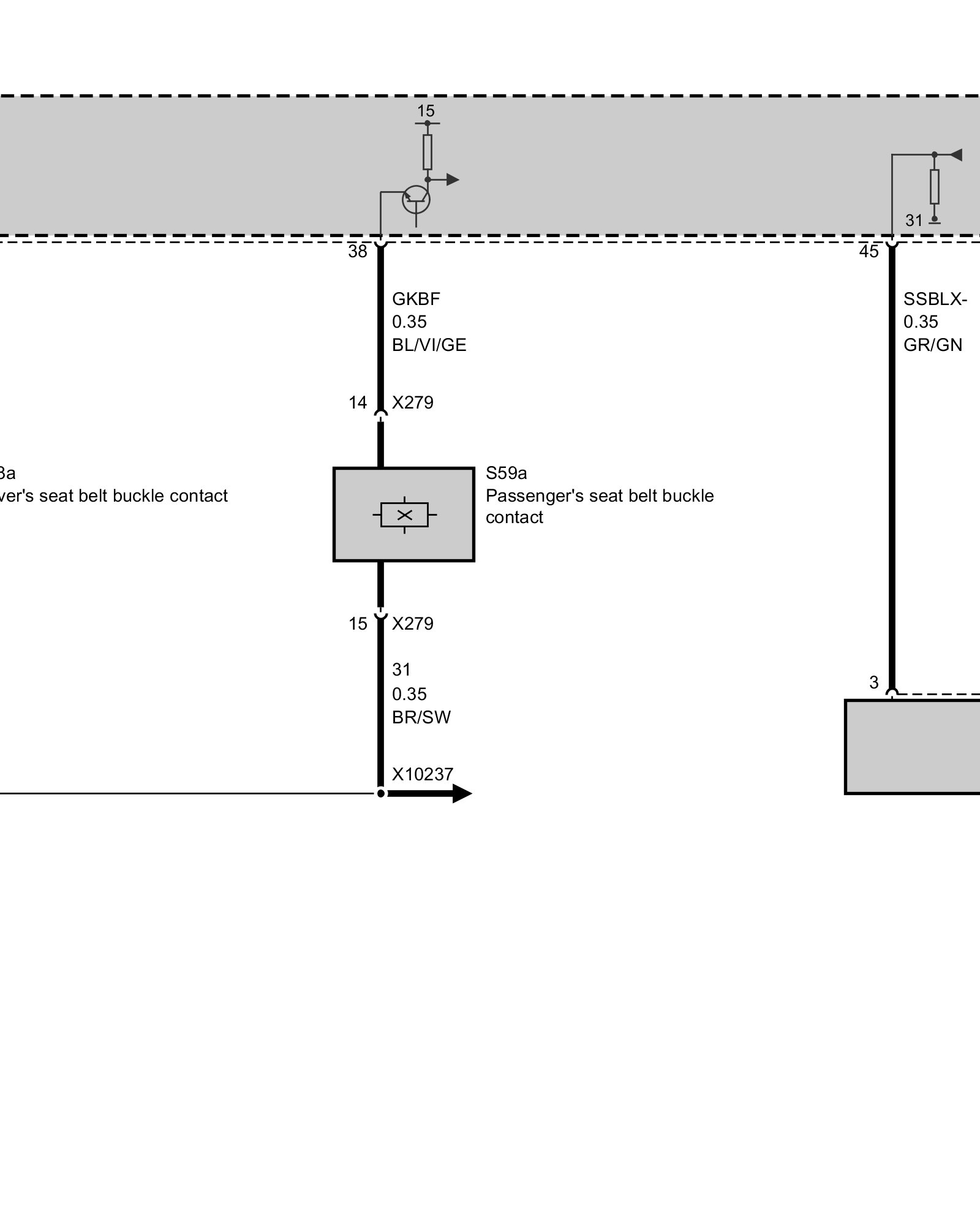

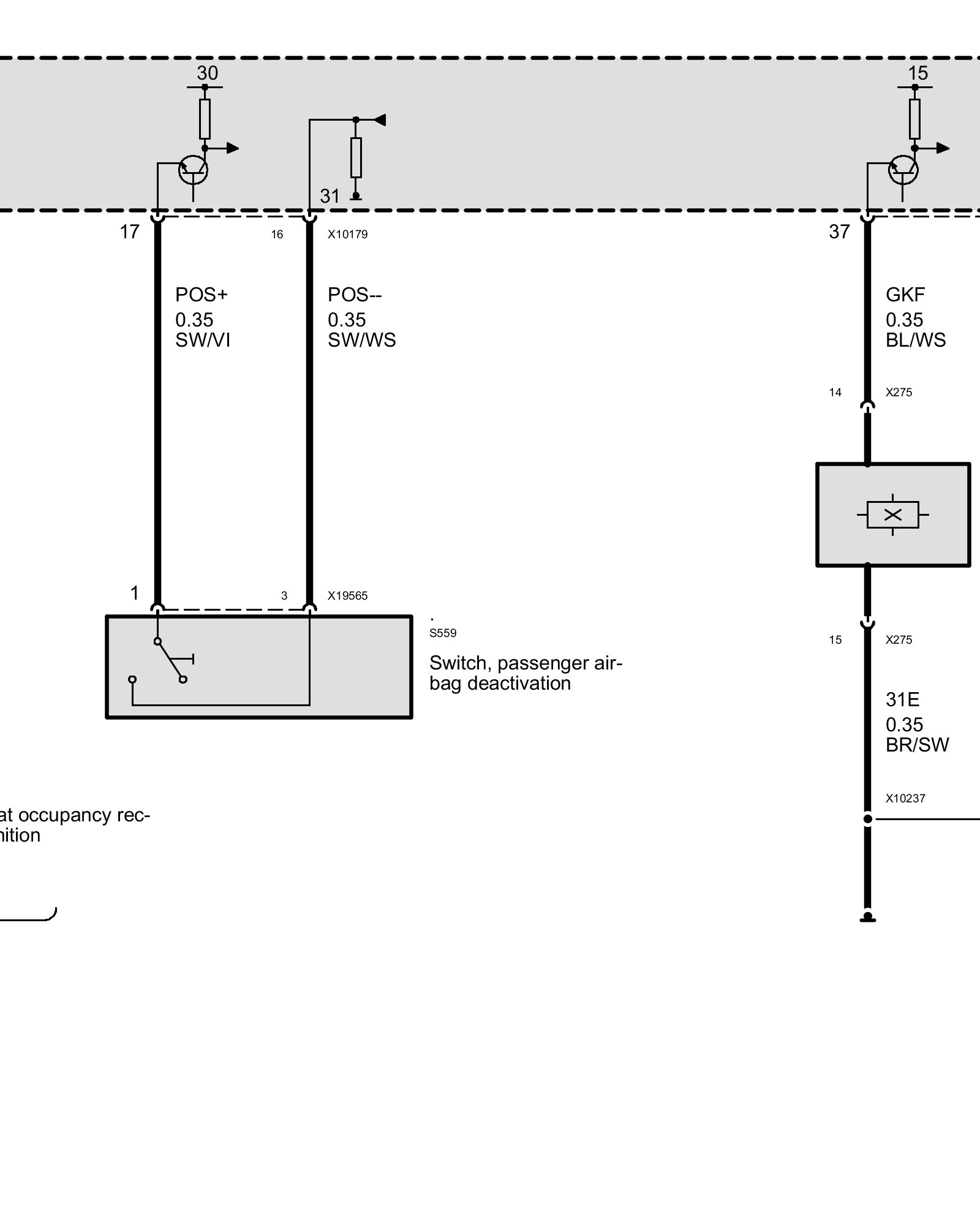

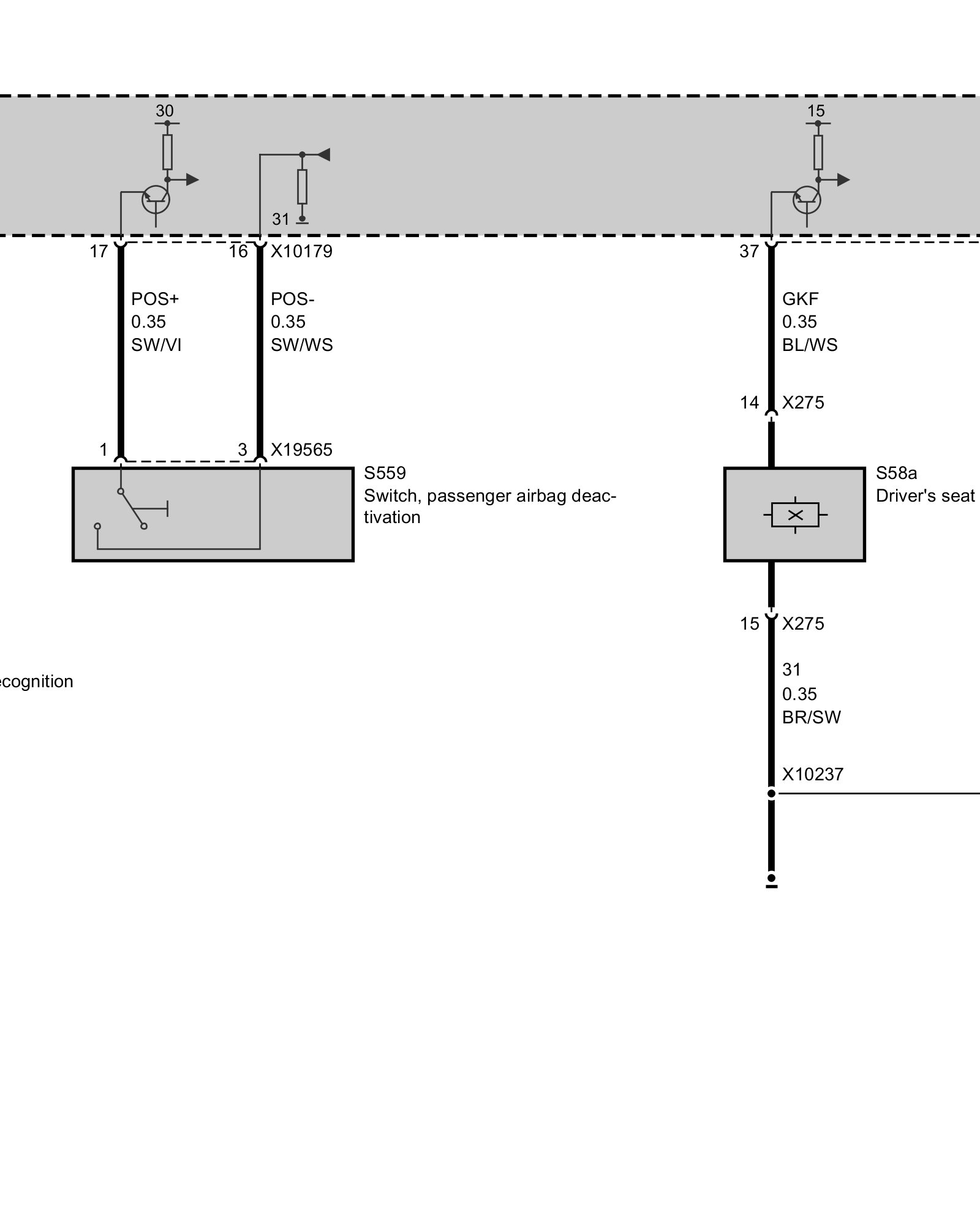

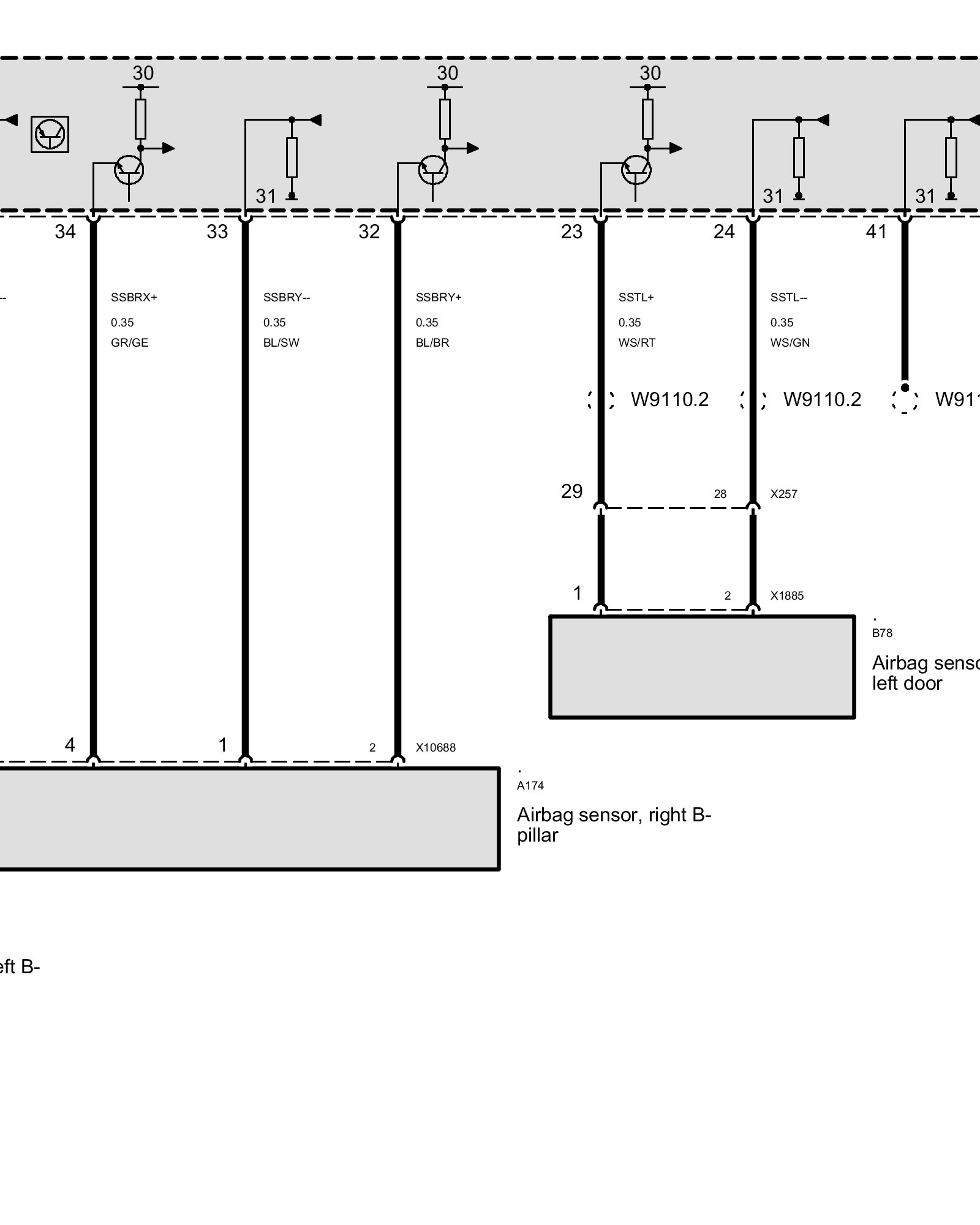

Airbag Sensors



Airbag Sensors


Up to 03/06





























As of 03/06
