Parking Assist Control Module: Service and Repair

66 20 508 - Removing and installing (replacing) control unit (Park Distance Control)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove trim from rear apron 51 46 050 Removing and Installing/Replacing Top Trim on Rear Apron
- Remove right luggage compartment trim panel

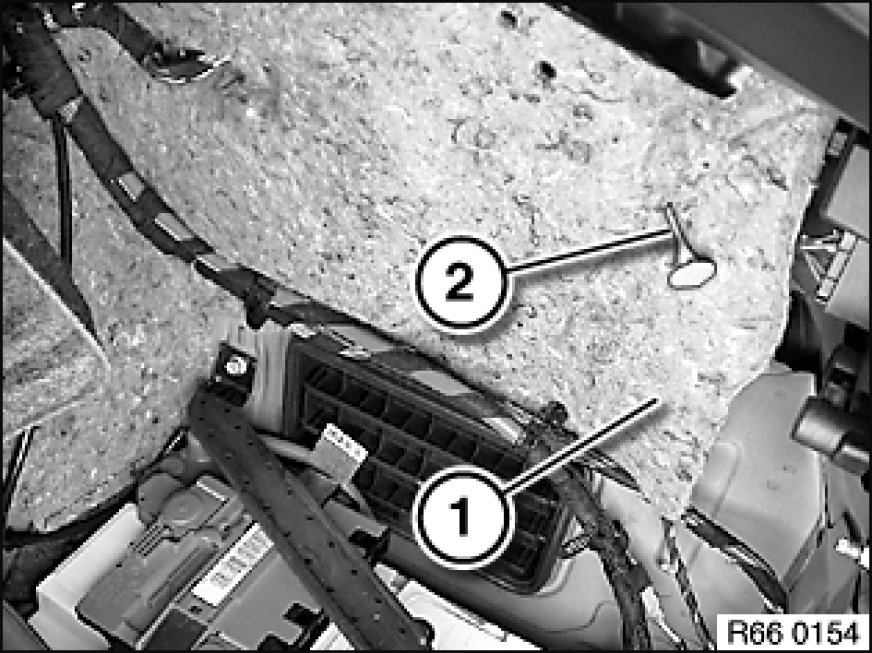

Partly detach insulating mat (1) and feed out cable (2).

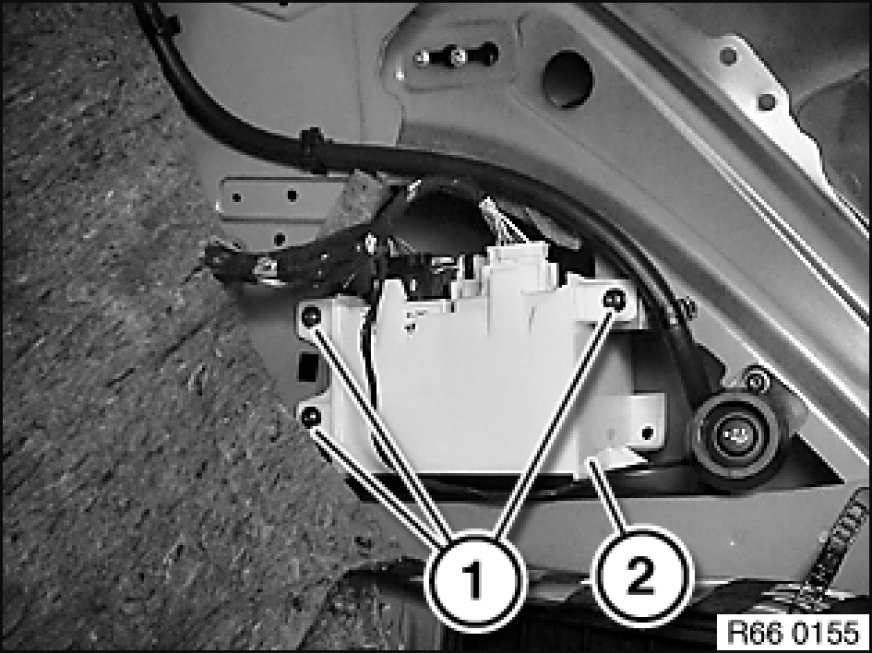

Release screws (1).
Feed out equipment carrier (2).

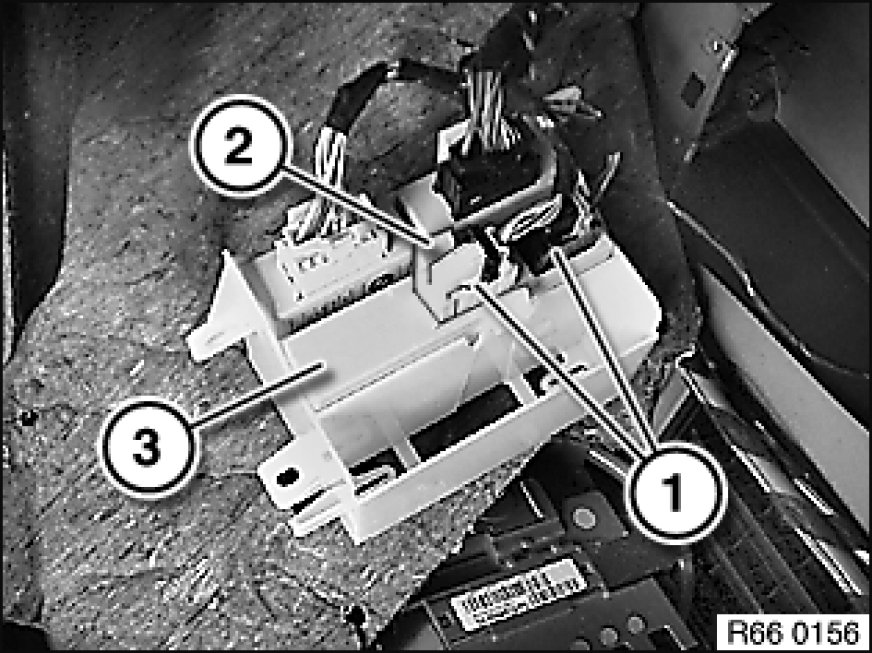

Disconnect plug connection (1) and unlock catch (2).
Remove control unit (3).





Replacement:
Carry out programming/coding Programming and Relearning.
