Home >> BMW >> 2010 >> 335xi Coupe AWD (E92) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Police / Special Vehicle Options >> RTK-7 With Controls

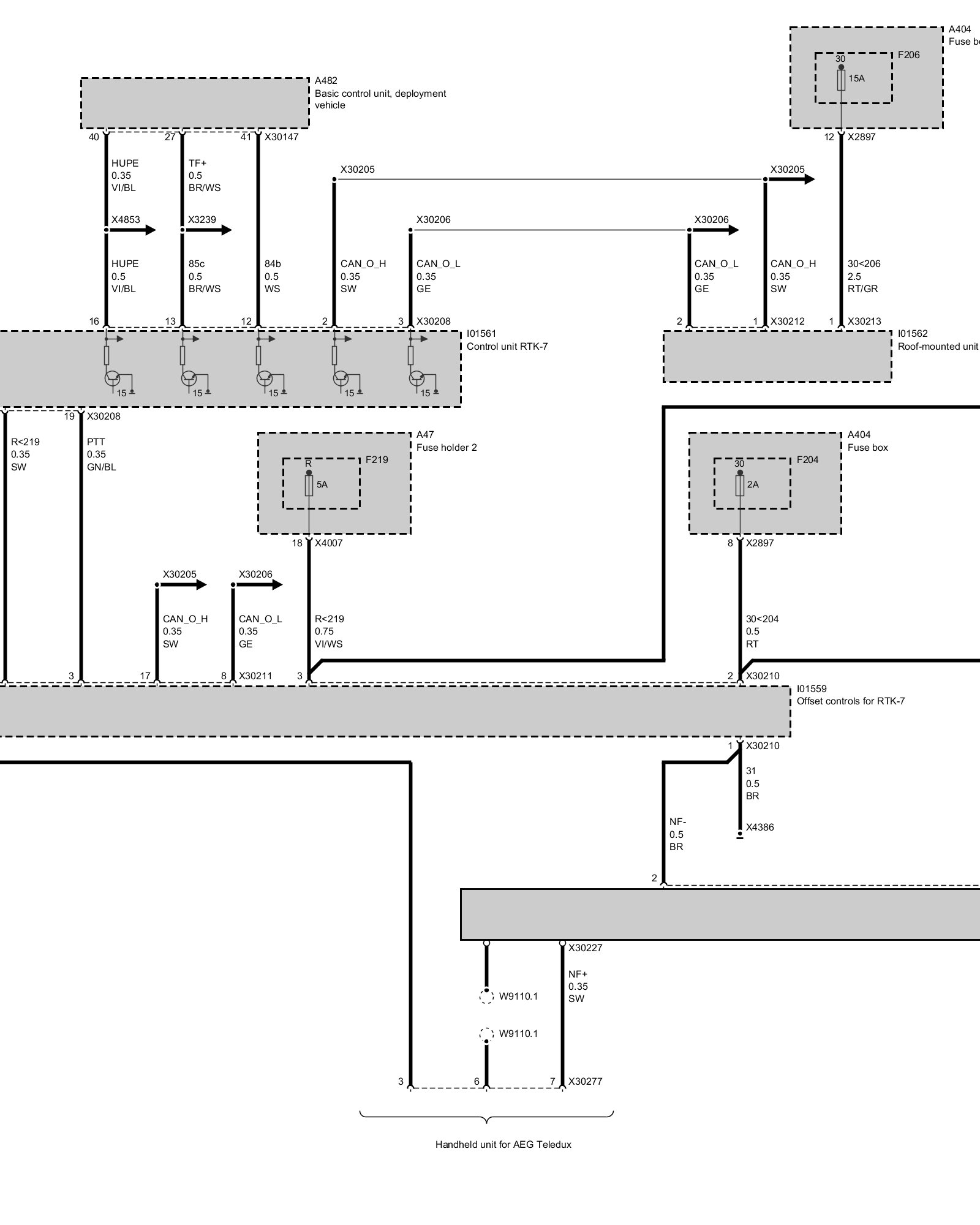

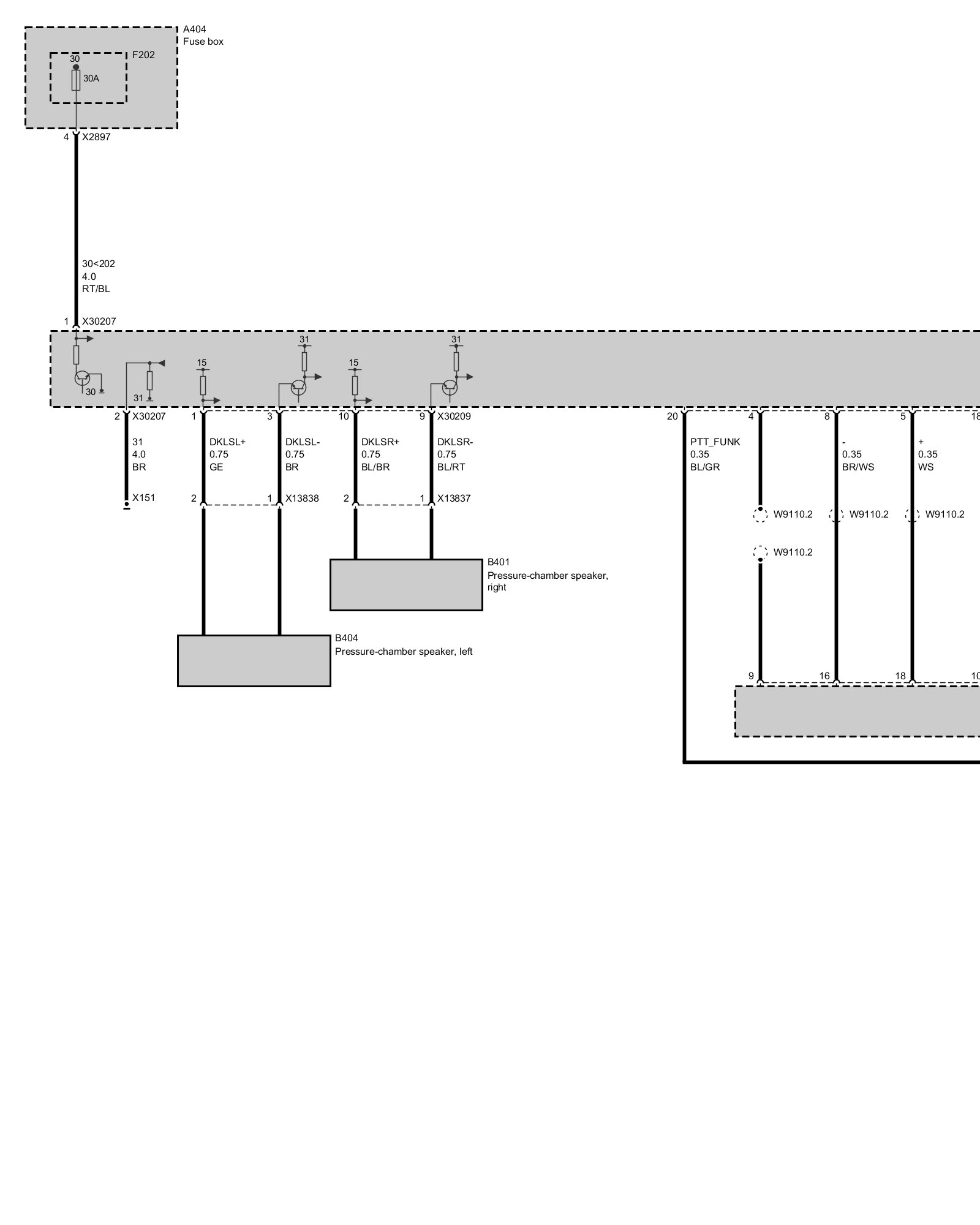

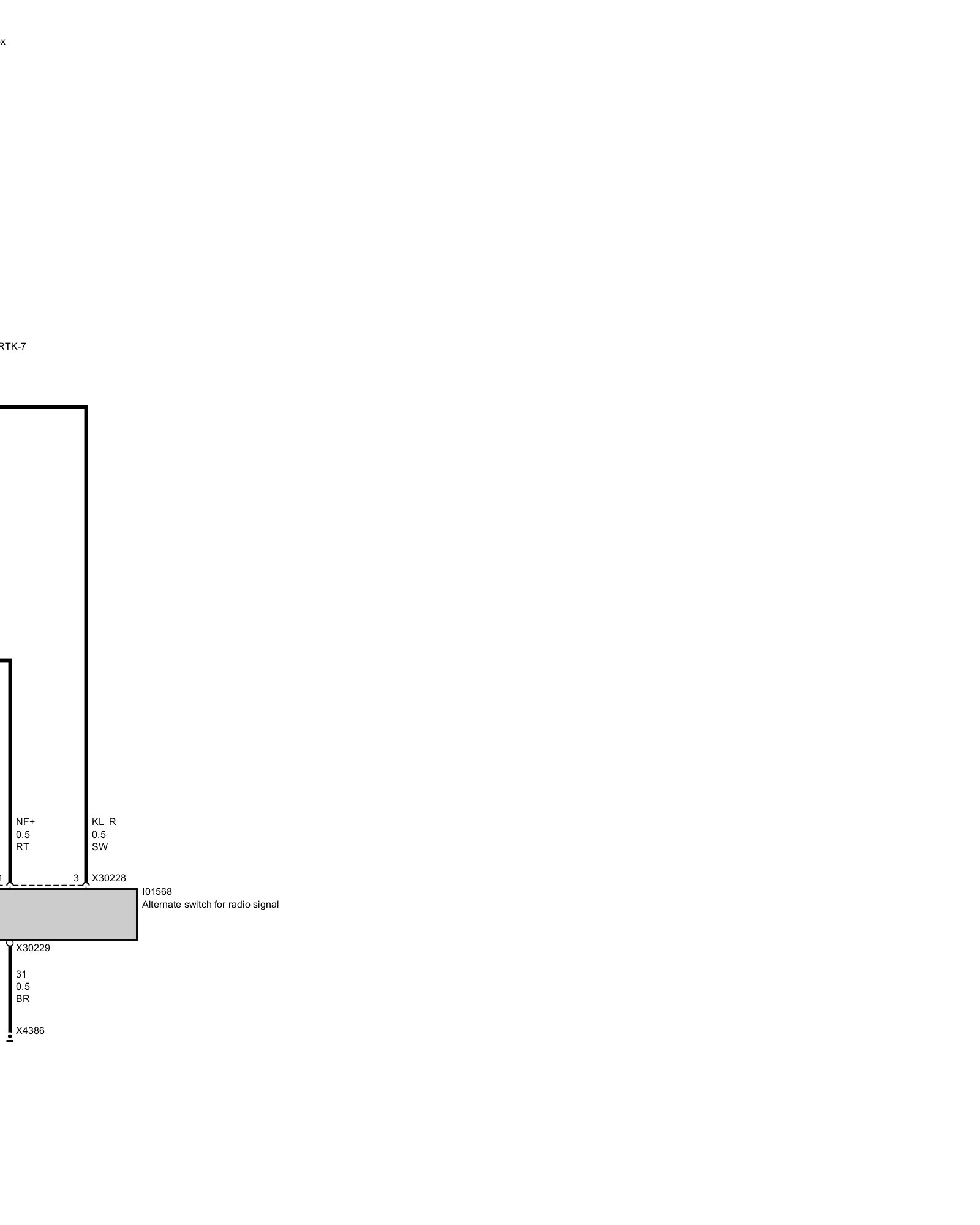

RTK-7 With Controls



RTK-7 With Controls
