Replacing Left Engine Support Arm

22 11 110 - Replacing left engine support arm (M57T2)





Necessary preliminary tasks:
- Remove underbody protection at front and rear.
- Secure engine in installation position Securing Engine In Installation Position.

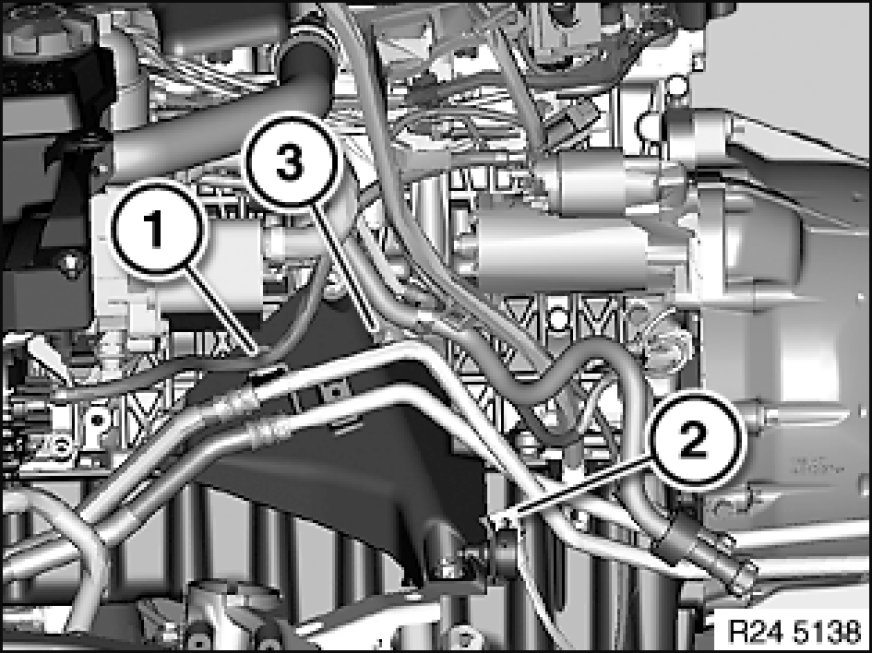

Unclip cable (1) from holder.
Release screw (2) on grounding strap.
Release screw (3) on bracket.

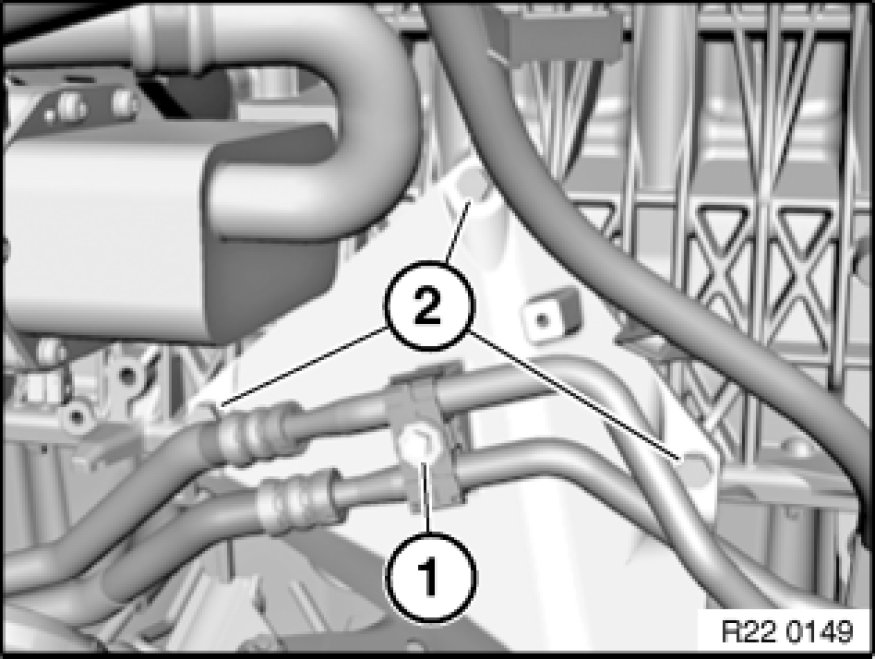

Release screw (1).
Release screws (2).
Remove engine support arm.
Tightening torque 22 11 3AZ Specifications
