Flywheel: Service and Repair

11 22 500 Removing and installing/replacing flywheel (N54, N54T)

Special tools required:







Necessary preliminary tasks:
- Remove transmission.
- Remove clutch (except Automatic and DKG).

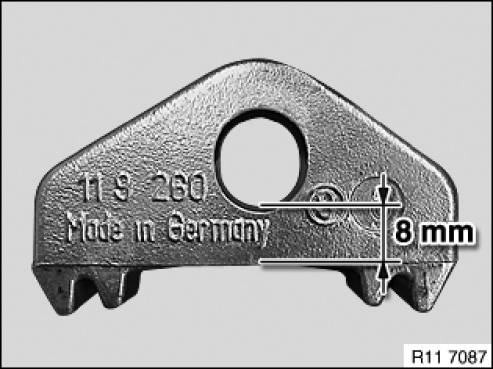

Enlarge special tool 11 9 260 with an elongated hole.
Enlarge elongated hole on special tool 11 9 260 to 8 mm.

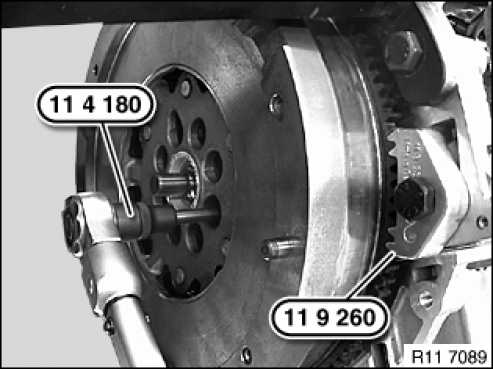

For vehicles with manual gearboxes:
Secure flywheel with special tool 11 9 260 .
Release flywheel bolts with special tool 11 4 180 /
Tightening torque 11 22 2AZ.

Installation note:
The flywheel is secured with a dowel pin.
Fit new flywheel bolts.

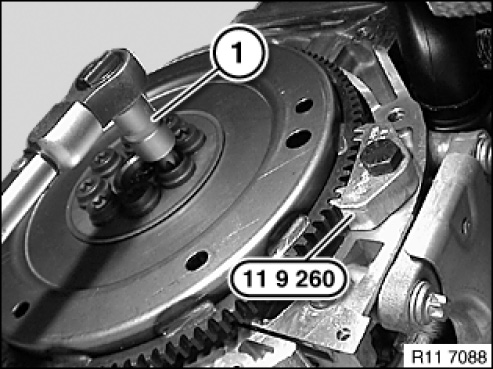

For vehicles with automatic transmissions:
Secure flywheel with special tool 11 9 260 .
Release flywheel screws with a suitable tool (1).
Tightening torque 11 22 1AZ.

Installation note:
The flywheel is secured with a dowel pin.

Fit new flywheel bolts.







Assemble engine.
