Throttle Body: Service and Repair

13 54 030 - Removing and installing/sealing throttle valve assembly (N54)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Switch off ignition
- Remove charge-air duct 11 61 368 Removing and Installing/Replacing Rear Left Charge-Air Duct

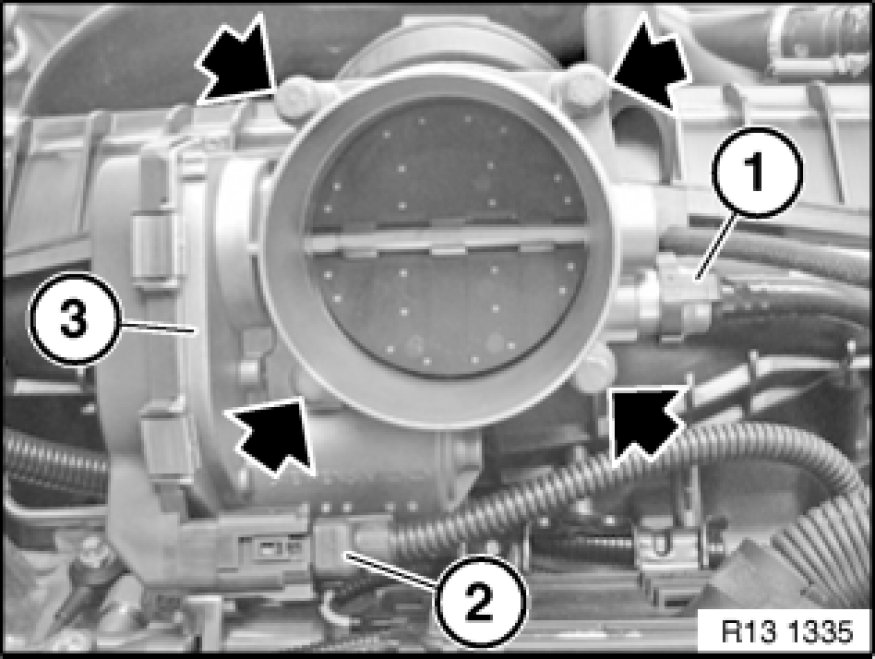

Unlock and disconnect line (1).
Unlock connector (2) and remove.
Release screws.
Tightening torque 13 54 1AZ 13 54 Throttle and Actuator.
Remove throttle assembly (3).






Installation:

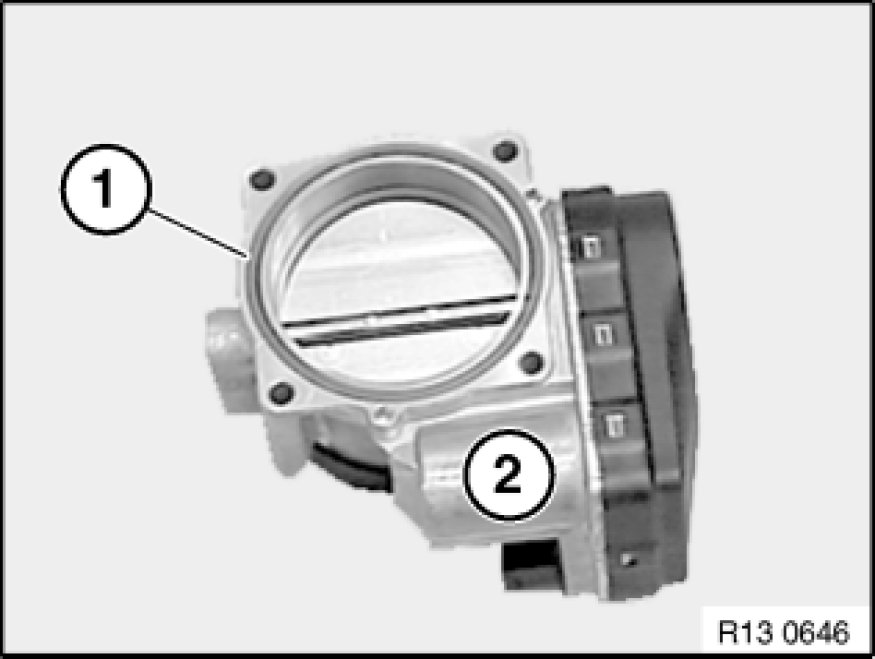

Replace sealing ring (1) of throttle assembly (2).





Installation Note:
Check stored fault messages.
Now clear the fault memory.
