16 12 010 Removing and Installing/Replacing Carbon Canister (with Tank Leakage Diagnosis Module)

16 12 010 - Removing and installing/replacing carbon canister (with tank leakage diagnosis module N54)





Necessary preliminary tasks:
- Remove cover for carbon canister Removing and Installing/Replacing Cover for Carbon Canister
- If necessary, press exhaust system heat shield to one side slightly

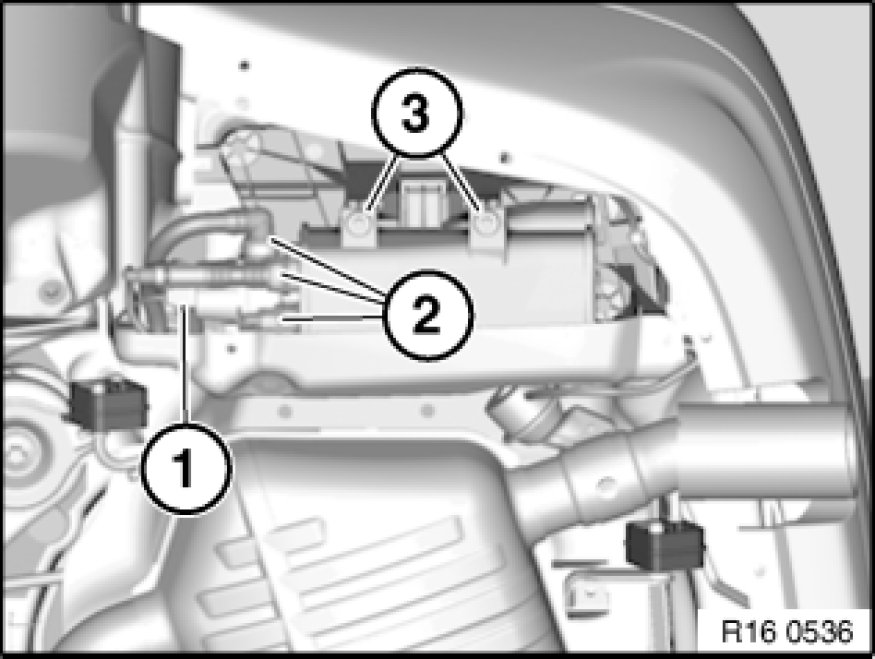

Disconnect plug connection (1).
Unlock and detach quick-connect couplings (2).
Release screws (3) and remove carbon canister with tank leakage diagnosis module.

Installation:
Tightening torque 16 13 2AZ 16 13 Tank Ventilation.
