54 10 170 Removing and Installing Front Glass Slide/Tilt Sunroof Cover





54 10 170 Removing And Installing Front Glass Slide/Tilt Sunroof Cover







Necessary preliminary work:
- Remove gaiter

NOTE:
- The following steps can be carried out inside the vehicle with the glass roof panel fully closed.
- Open floating headlining fully.
- Make sure that grease at the ends of the rail do not come into contact with the roofliner.

Not necessary for replacement:
Before removing the Torx screws, make a mark around the washers in order to ensure correct alignment during installation.

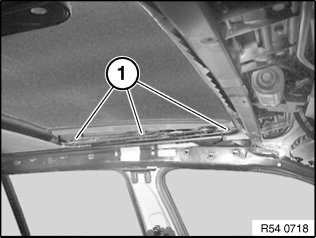

Remove and dispose of the Torx screws (1) securing the glass slide/tilt sunroof cover to the mechanism.

Installation note:
Insert new Torx screws with Loctite and align washers to markings.

Tightening torque 54 12 01AZ.







IMPORTANT: A second person is required to help in removing and installing the glass slide/tilt sunroof cover.

Lift out glass slide/tilt sunroof cover (1).

Installation note:
Tape off installation area on left and right at roof aperture with fabric adhesive tape.

Ensure correct seat of glass slide/tilt sunroof cover slider.

Install glass slide/tilt sunroof cover carefully (twist in) as gasket can be damaged during installation.

Check glass slide/tilt sunroof cover for correct alignment and adjust if necessary.
