54 13 105 Removing and Installing/Replacing Rear Water Channel

54 13 105 Removing And Installing/Replacing Rear Water Channel







Necessary preliminary work:
- Remove complete glass slide/tilt sunroof
- Remove glass slide/tilt sunroof cover at rear

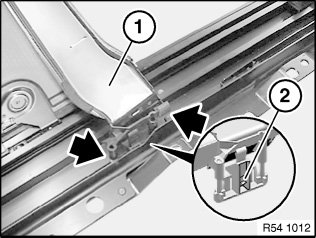

Unlock tab (2) and remove water channel (1) toward the top.

NOTE: 2 springs are loosely connected to the guide for the water channel.

Installation note:
Make sure that the springs are reinstalled on the supports for the water channel.

Removing supports for water channel:

NOTE: Water channel support cannot be removed without incurring damage.







Break out tabs with a screwdriver and lever out support.

Installation note:
Replace water channel support and hook into place.
