Throttle Body: Service and Repair
13 54 030 Removing and Installing/Sealing Throttle Body (N51, N52, N52K, N53)
Read and comply with notes on protection against electrostatic damage (ESD protection).
Necessary preliminary tasks:
- Turn off ignition
- Remove air intake hose

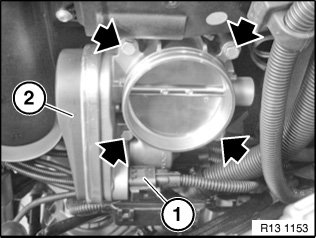

Unlock plug (1) and remove.
Release screws.

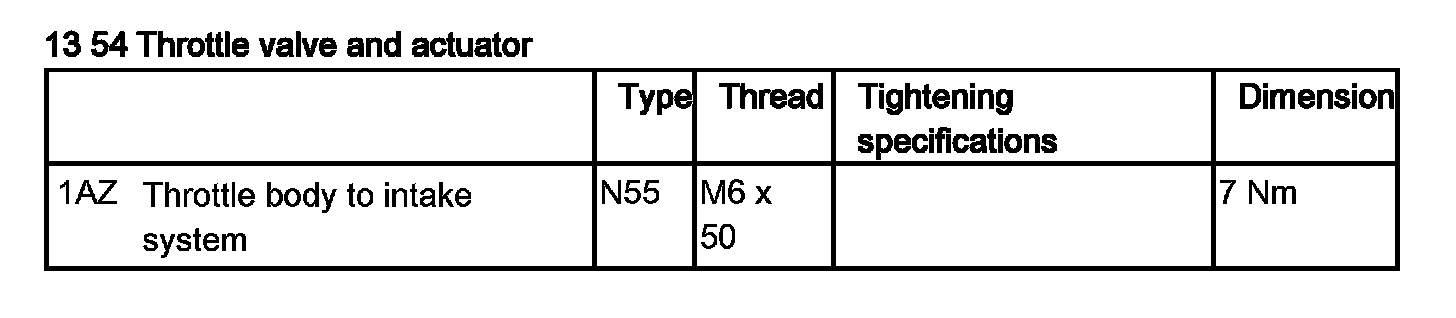

Tightening torque 13 54 1AZ.
Remove throttle assembly (2).
Installation:

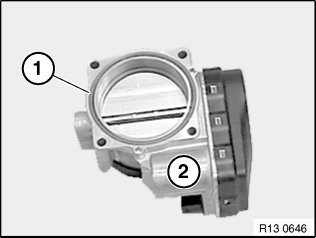

Replace sealing ring (1) of throttle assembly (2).
Installation:
Check stored fault messages.
Delete fault memory.
