Replacing Left Engine Support Arm

22 11 110 - Replacing left engine support arm (N51/N52/N52K/N53)





Necessary preliminary tasks:
- Remove underbody protection at front and rear
- Secure engine in installation position Securing Engine In Installation Position
- Remove intake filter housing Service and Repair
- Remove reinforcement strut Removing and Installing/Replacing Reinforcement Brace (E90/91/92 only)
- Remove V-strut 51 61 011 - Removing and installing/replacing V-strut, front axle carrier, left or right (E93 only)





Release grounding strap from engine support arm.
Release clamp from fuel hose of engine support arm.

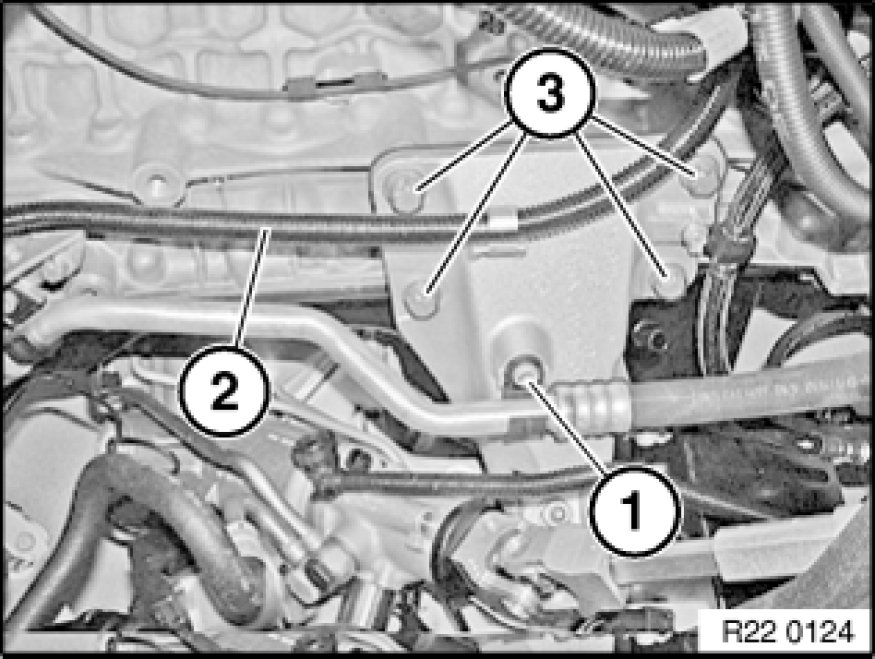

If necessary, release screw (1).
Release corrugated tube (2) from retainer.
Release screws (3).
Remove engine support arm.

Installation:
Aluminium screws/bolts must be replaced.

Tightening torque 22 11 3AZ Specifications
