Radiator: Testing and Inspection

17 00 515 - Radiator function check





Special tools required:
- 13 3 010 13 3 010 Hose Clip






Warning!
Scalding hazard!

Only carry out work on the cooling system after the engine has cooled down!





Necessary preliminary tasks:
- Switch off ignition
- Remove air duct

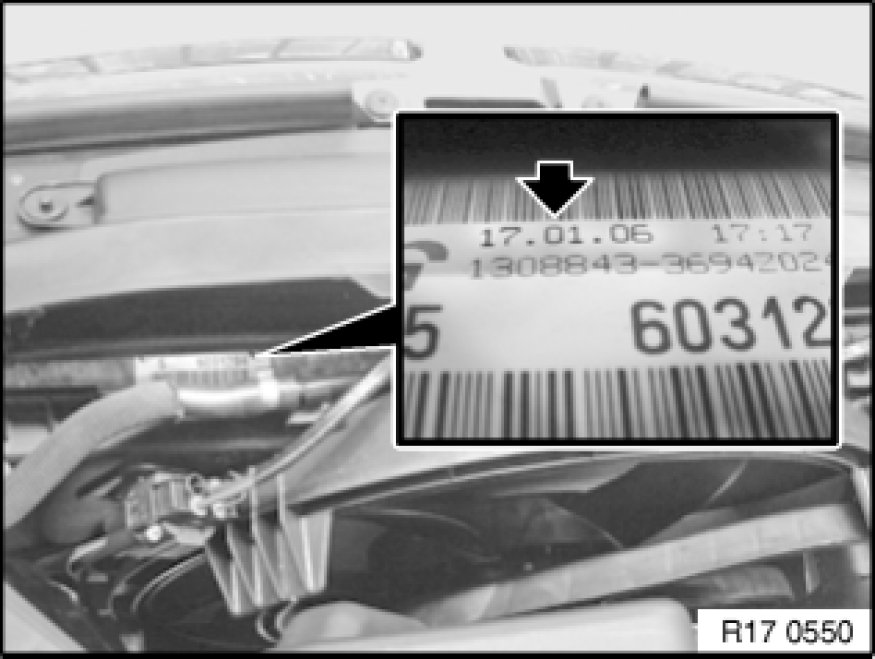

Check date of manufacture.

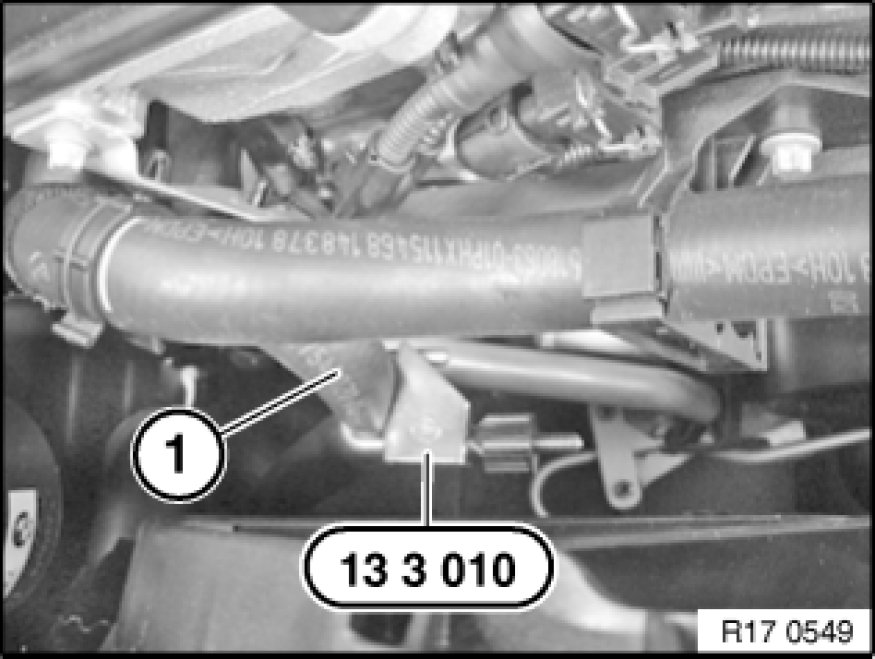

Secure special tool 13 3 010 13 3 010 Hose Clip to coolant hose (1).

Carry out function check sing BMW diagnosis test system.

Note:
Check coolant hose (1) for damage and replace if necessary.
