Convenient Start ((N52 or N51 Engine) Without EWS4)
Convenient Start ((N52 or N51 Engine) Without EWS4)

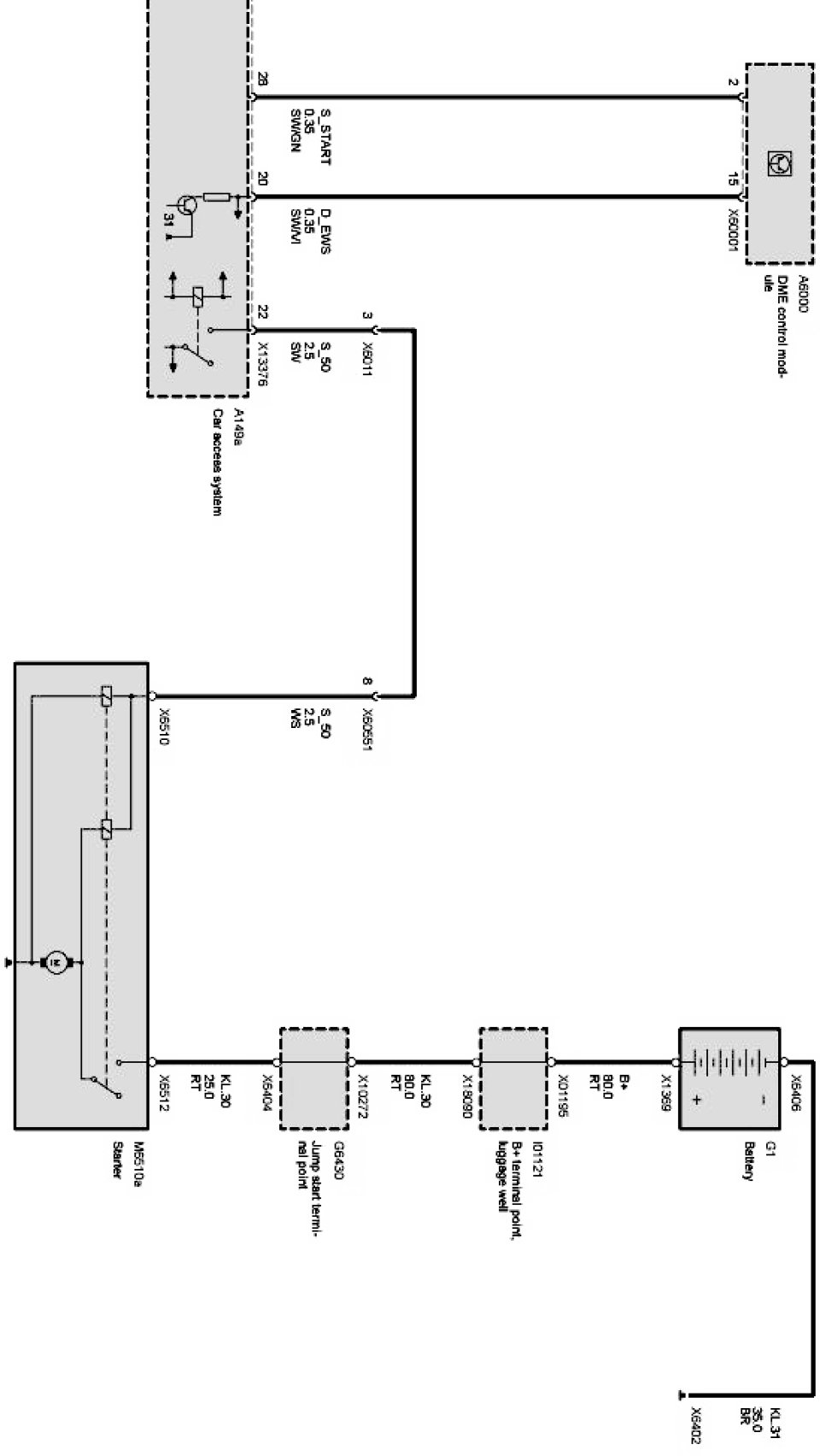

Convenient start Part 1:

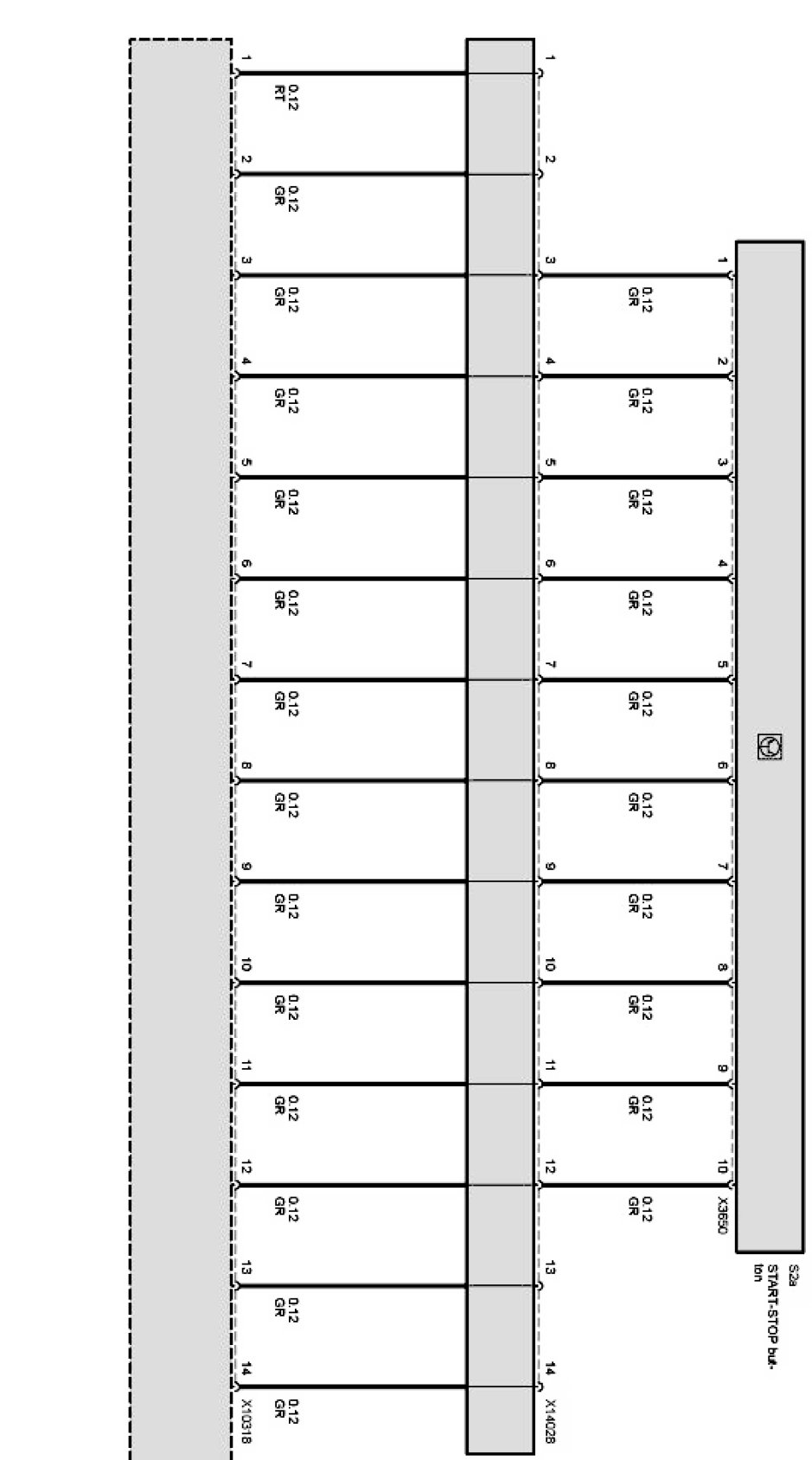

Convenient start Part 2:

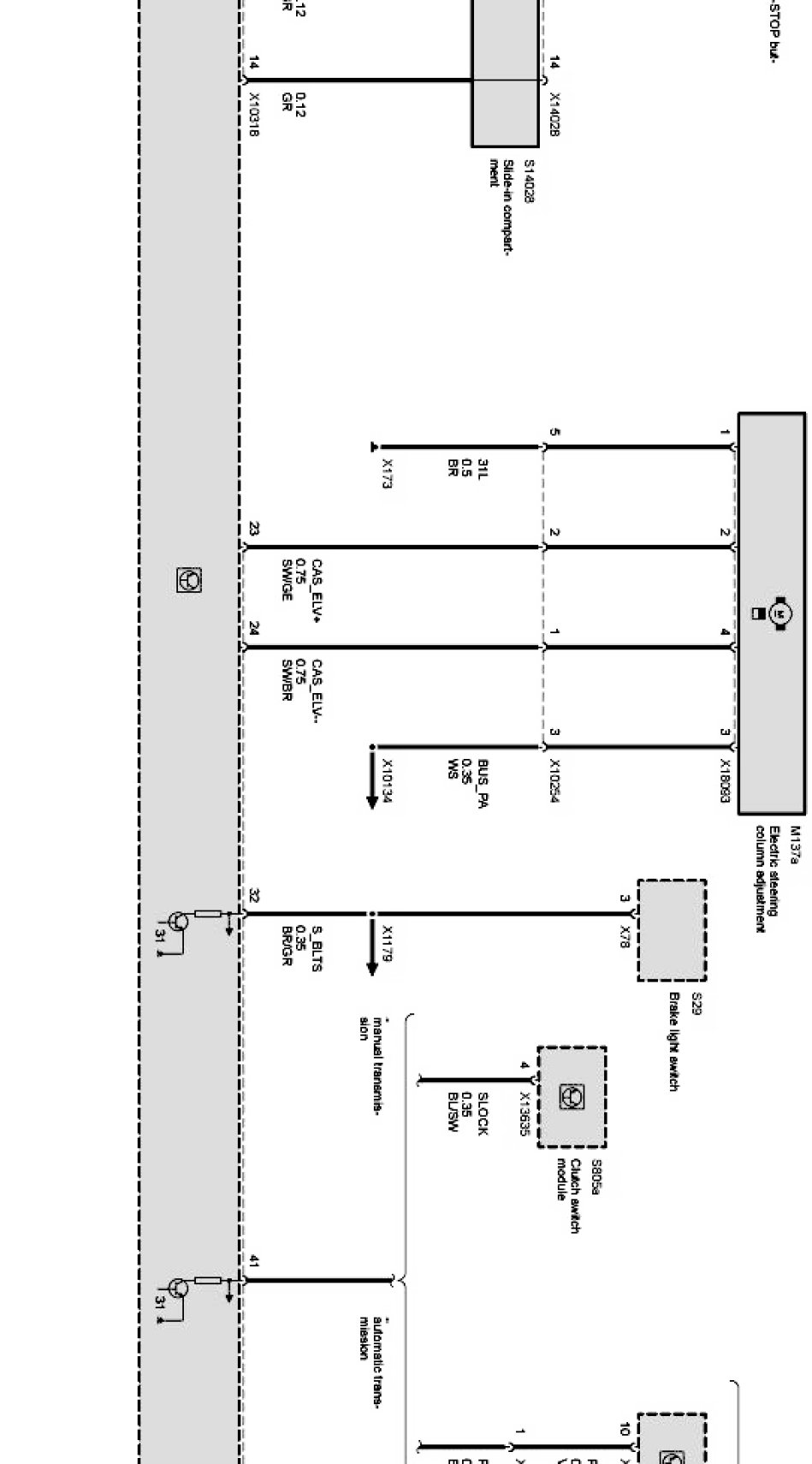

Convenient start Part 3:

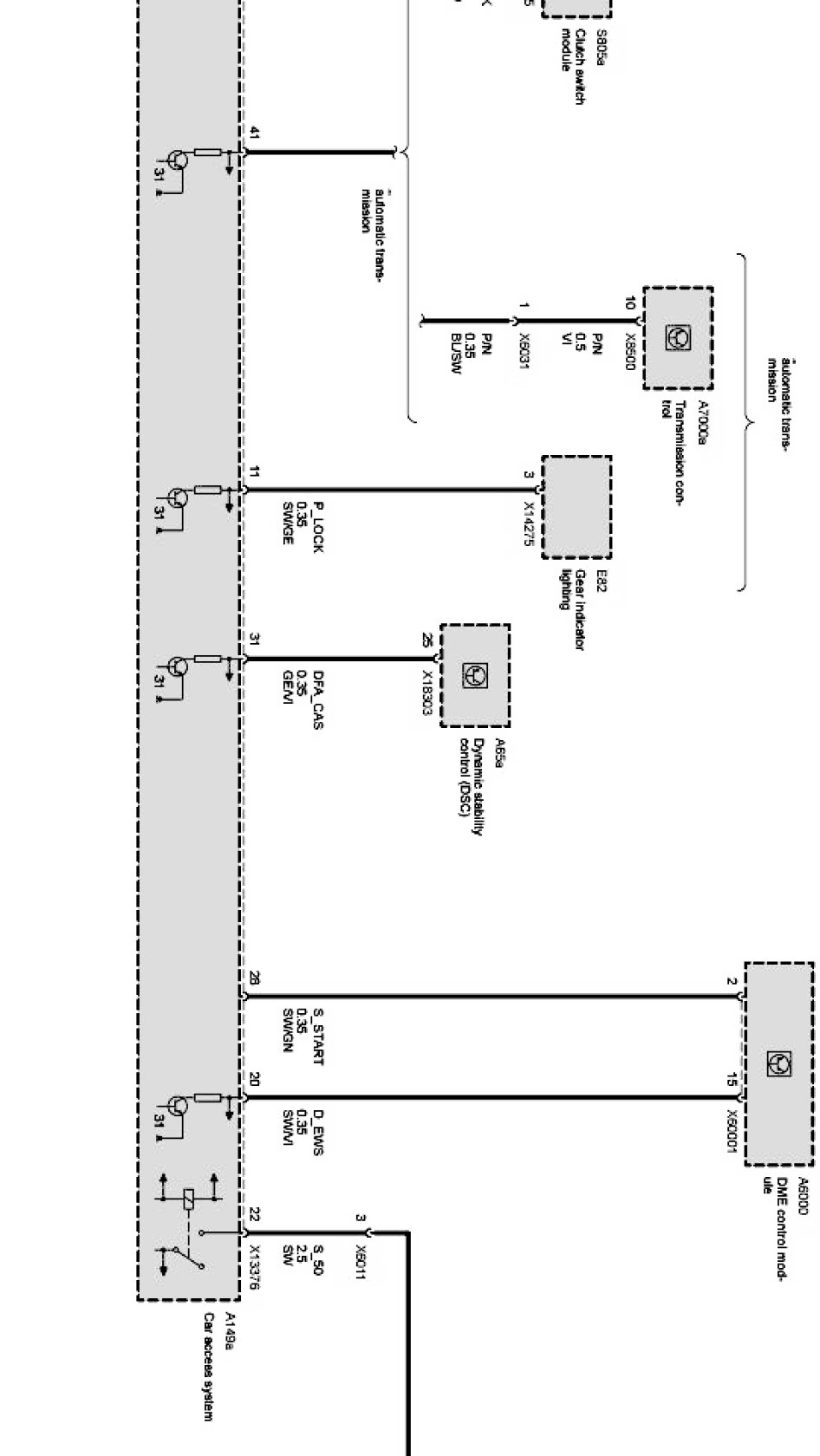

Convenient start Part 4:
