32 41 250 Removing and Installing/Replacing Fluid Reservoir For Power Steering

32 41 250 Removing and installing/replacing fluid reservoir for hydraulic steering

Special tools required:





Warning!
Danger of poisoning if oil is ingested/absorbed through the skin!
Danger of injury if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable expansion tank.
Observe country-specific waste disposal regulations





Necessary preliminary work:
^ Draw off and dispose of hydraulic fluid from fluid reservoir

N45, N46,N46T,M47T2:
^ Remove intake port if necessary with gaiter

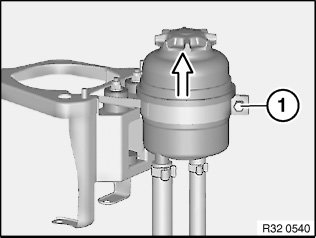

Release screw (1).

Tightening torque 32 41 1AZ.

Note:
If necessary, raise and/or turn fluid reservoir in order to gain better access to hose clamps.

Remove hose clamps if necessary with special tool 32 1 260.

Disconnect intake pipe and radiator return line from fluid reservoir.

Lift out oil reservoir.





After installation:
^ Fill and bleed hydraulic system
^ Check line connections for leaks

!
:
