51 12 ... Removing and Installing/Replacing Lower Cover on Rear Bumper

51 12 ... - Removing and installing/replacing lower cover on rear bumper





Note:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

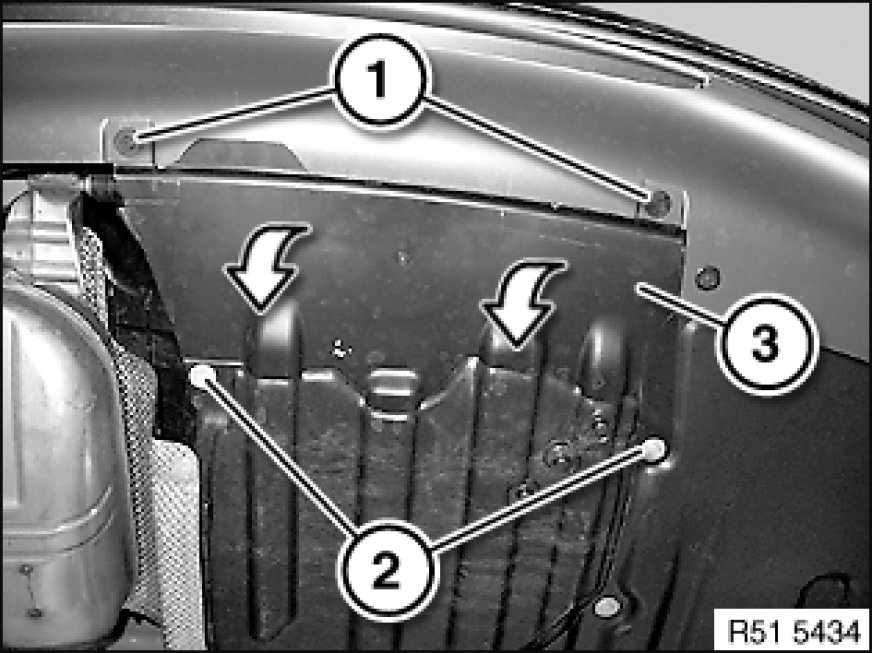

Release screws (1 and 2).
Feed out cover (3) towards rear and remove.

Installation:
Make sure cover (3) is correctly seated.





Replacement:
- Modify sheet nuts, replace faulty sheet nuts if necessary.
