65 20 300 Removing and Installing/Replacing Bumper Antenna

65 20 300 - Removing and installing/replacing bumper aerial (FM)





Necessary preliminary tasks:
- Remove rear bumper trim

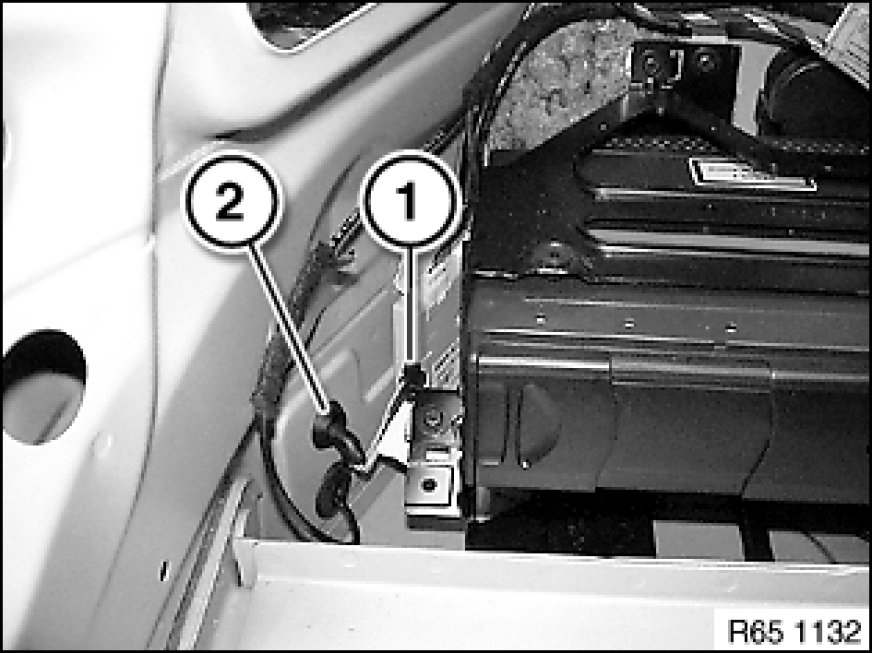

Disconnect plug connection (1).
Pull out grommet (2) and feed out aerial cable.

Installation:
Make sure grommet (2) is correctly seated so as to avoid water ingress.





Installation:

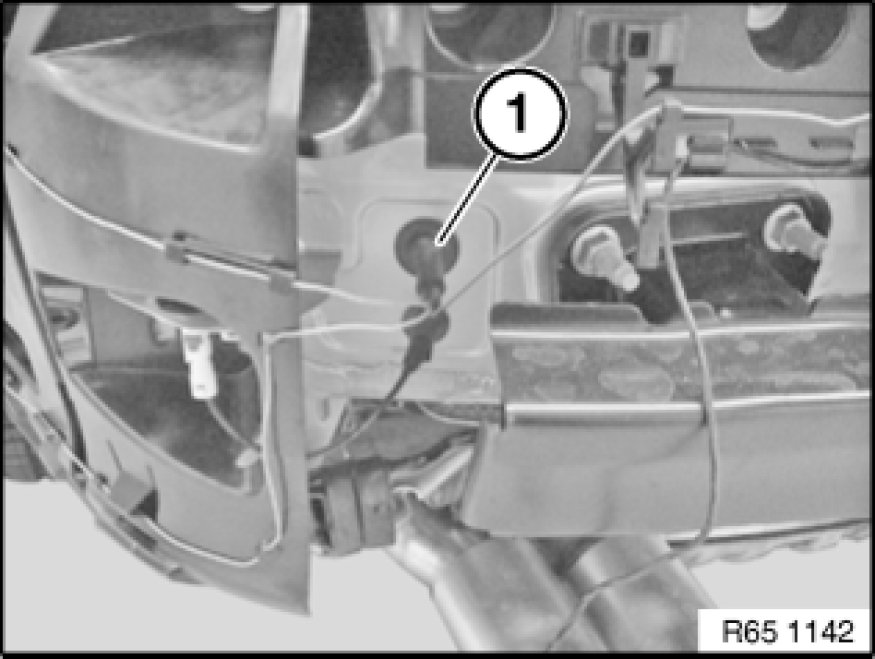

Make sure grommet (1) is correctly seated so as to avoid water ingress.





Note:
Picture shows E93.

Unclip cable fasteners (1).

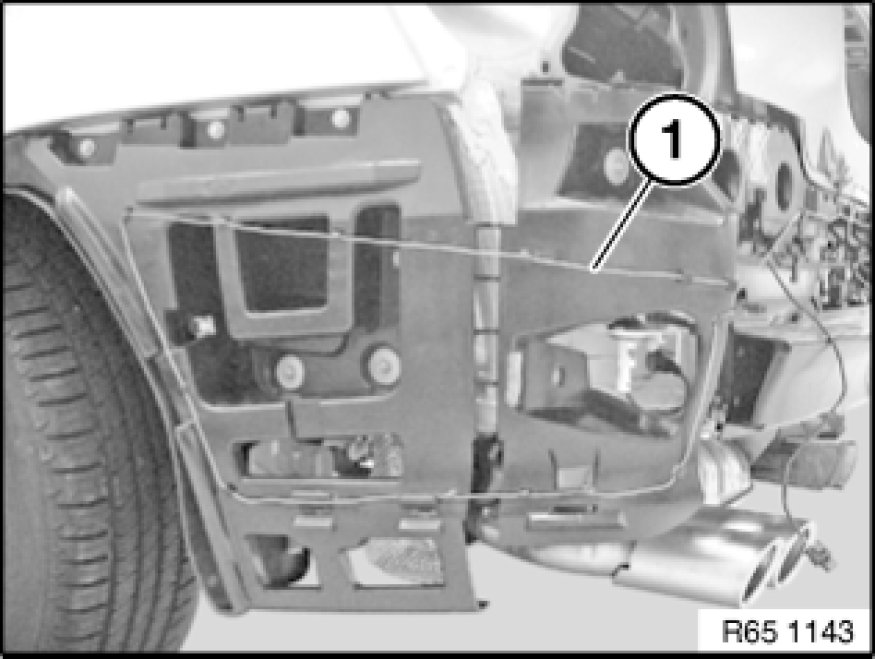

Disengage aerial cable (1) from bumper carrier mounting.

Installation:
Ensure correct lead routing.
