51 37 240 Removing and Installing/Replacing Outer Window Cavity Cover Strip For Rear Side

51 37 240 - Removing and installing/replacing outer window cavity cover strip for rear side window





Important!
The "Instructions on fitting window guides Service and Repair" serve as the basis for this repair instruction and must be observed without fail.





Necessary preliminary tasks:
- Partially open folding roof
- If necessary, open side window glass





Note:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

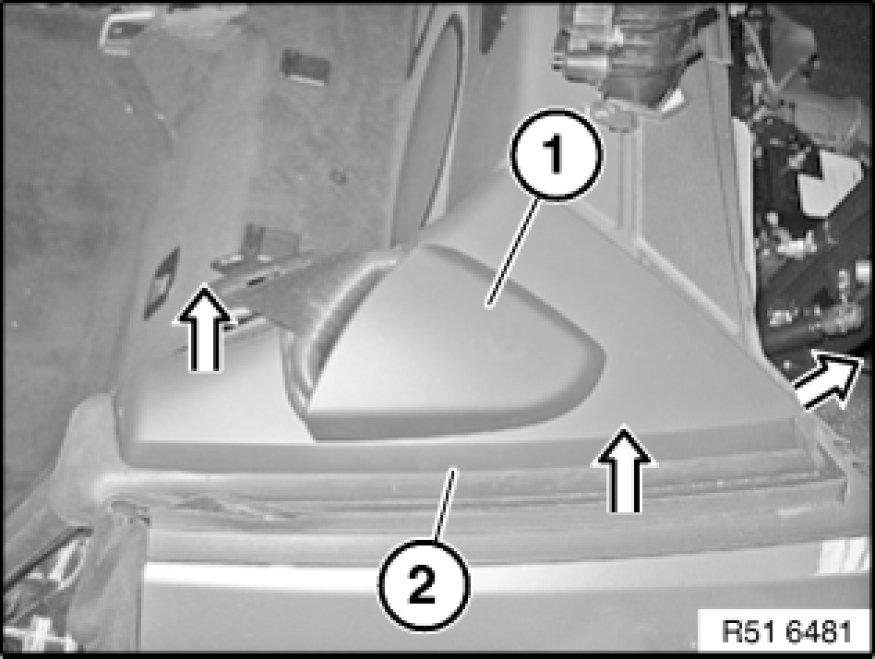

Unclip belt deflector trim (1).
Release outer window cavity cover strip (2) from side panel.





Installation Note:
Make sure window cavity cover strip (1) is correctly seated.
Window cavity cover strip (1) must not be damaged.
If necessary, moisten window cavity cover strip (1) prior to fitting with approved anti-friction agent Service and Repair.

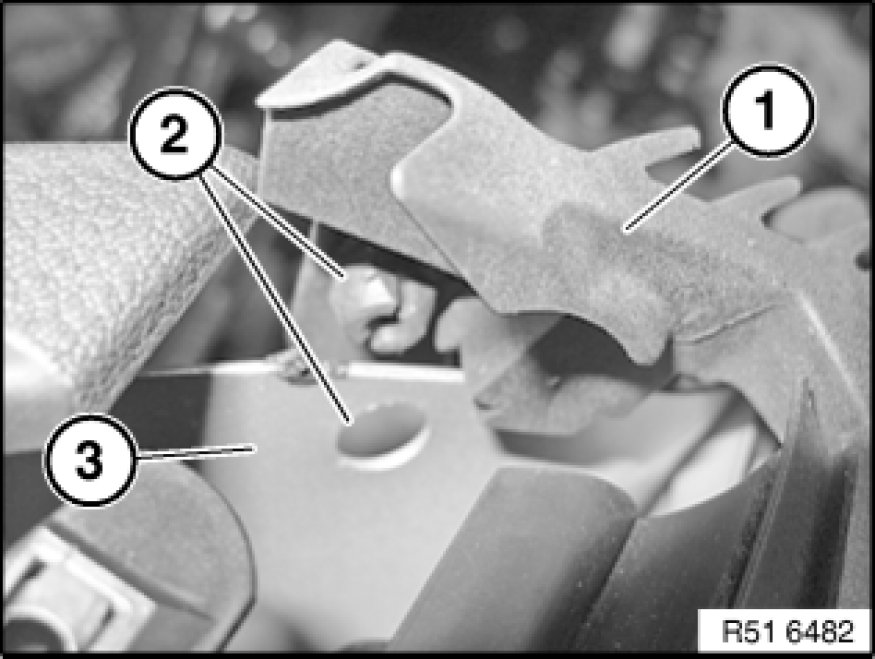

Secure window cavity cover strip (1) with clip (2) to body (3).
