25 11 071 Replacing Knob for Shift Lever

25 11 071 - Replacing knob for shift lever

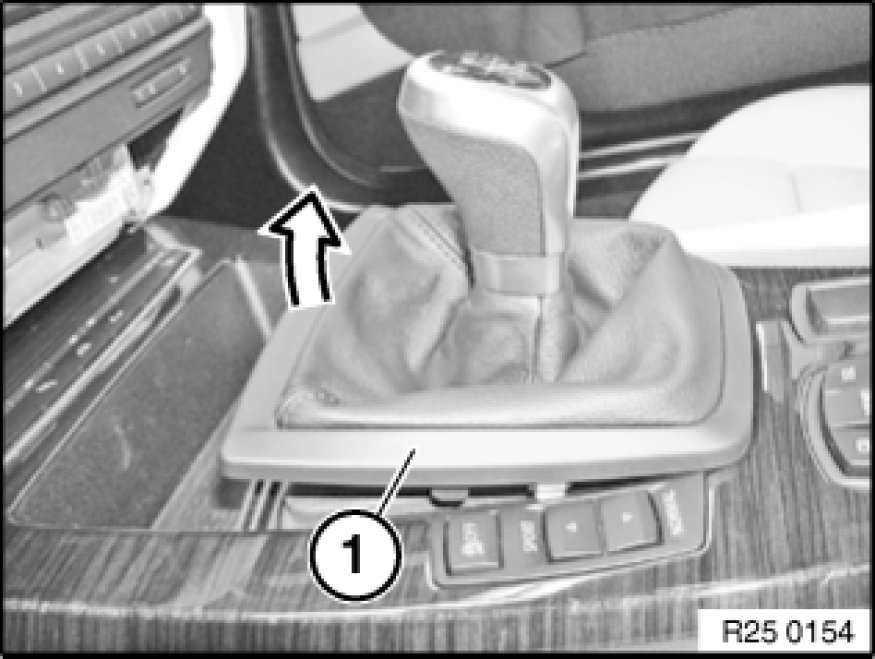

Pull installation frame of gaiter (1) from front upwards out of centre console.

Important!
Do not use a tool, as this would damage the installation frame or the centre console.





Note:
Do not twist knob during removal as this would cause the turning lock in the knob to shear off.

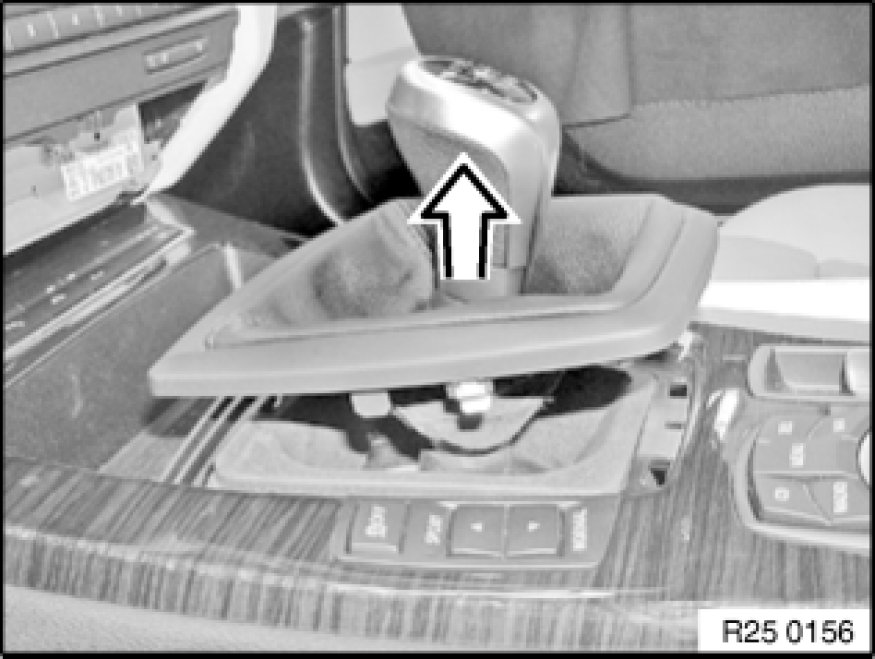

Tug firmly to remove knob.

Installation:
Fit knob on shift lever, align and press on until it snaps noticeably into place.
