23 .. ... Transmission Designations

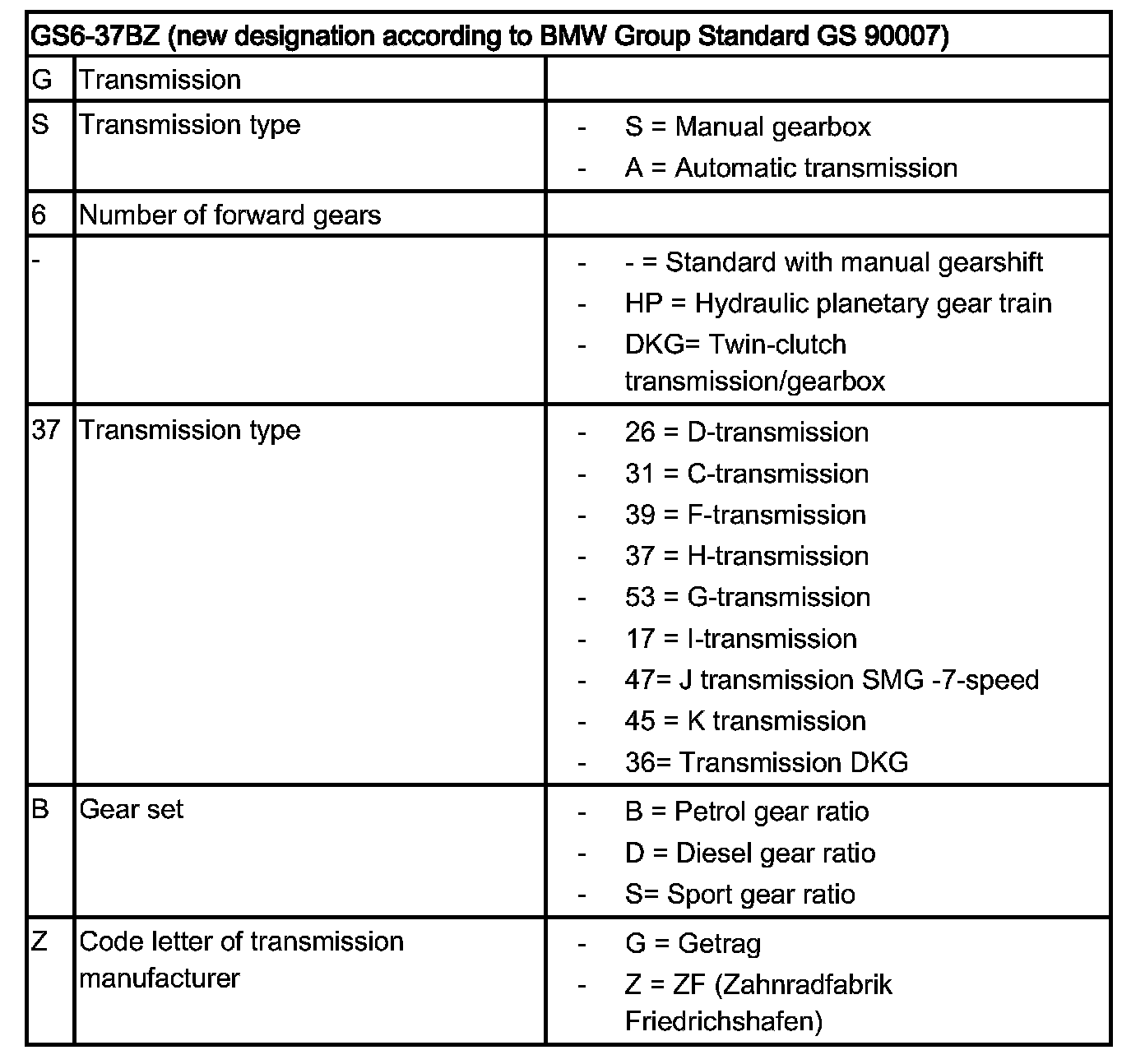

23 Transmission designations

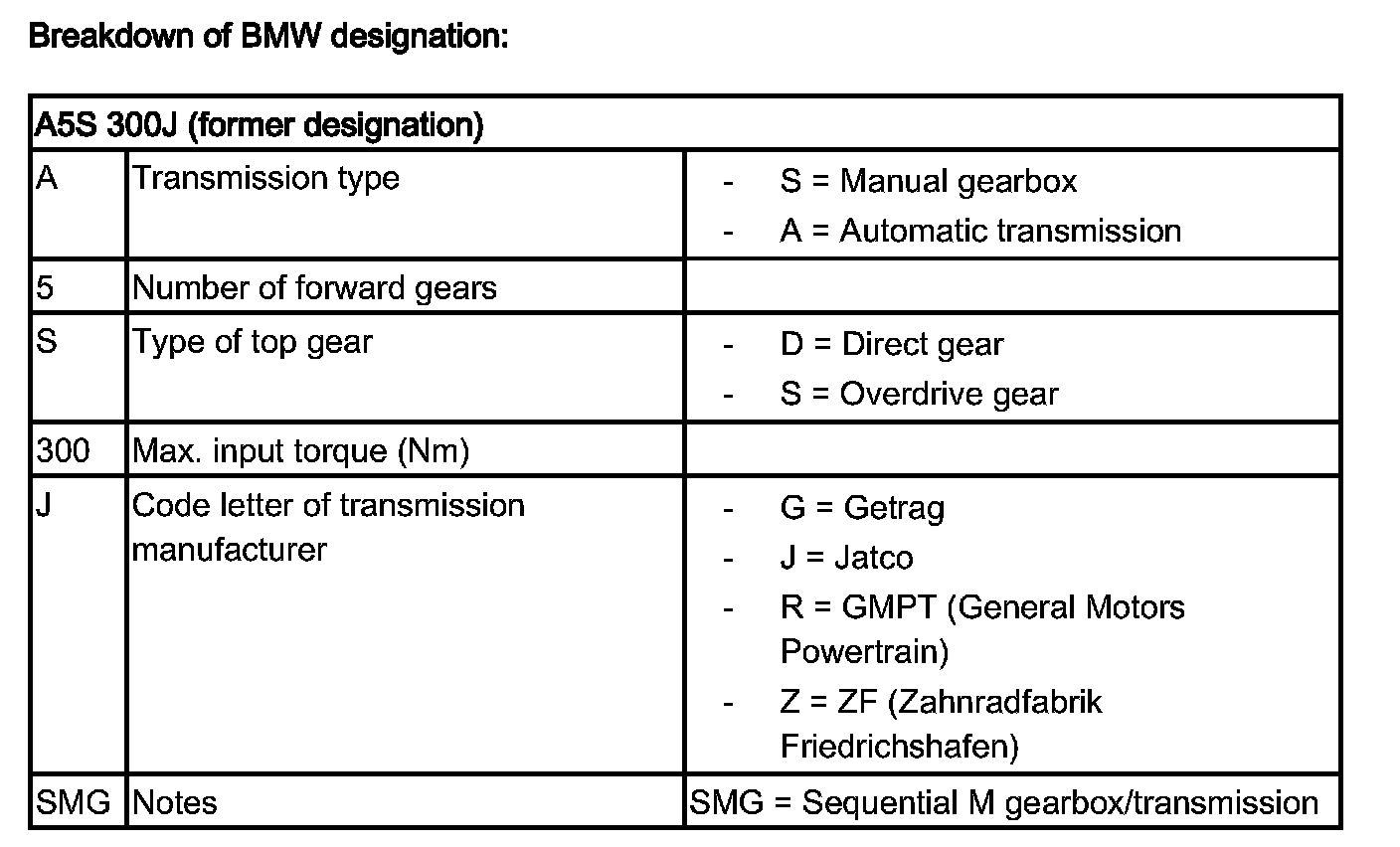

Breakdown of BMW designation:

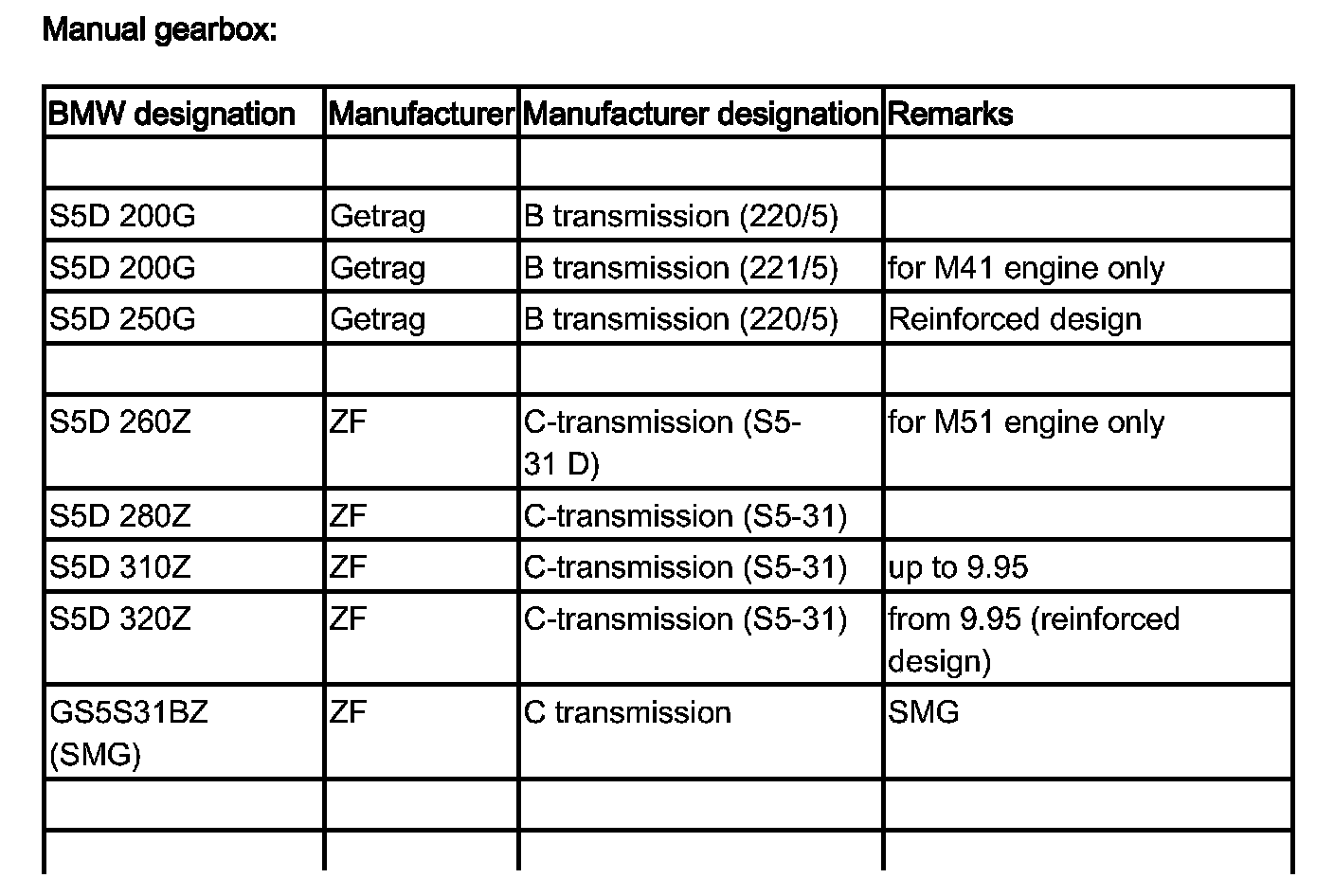

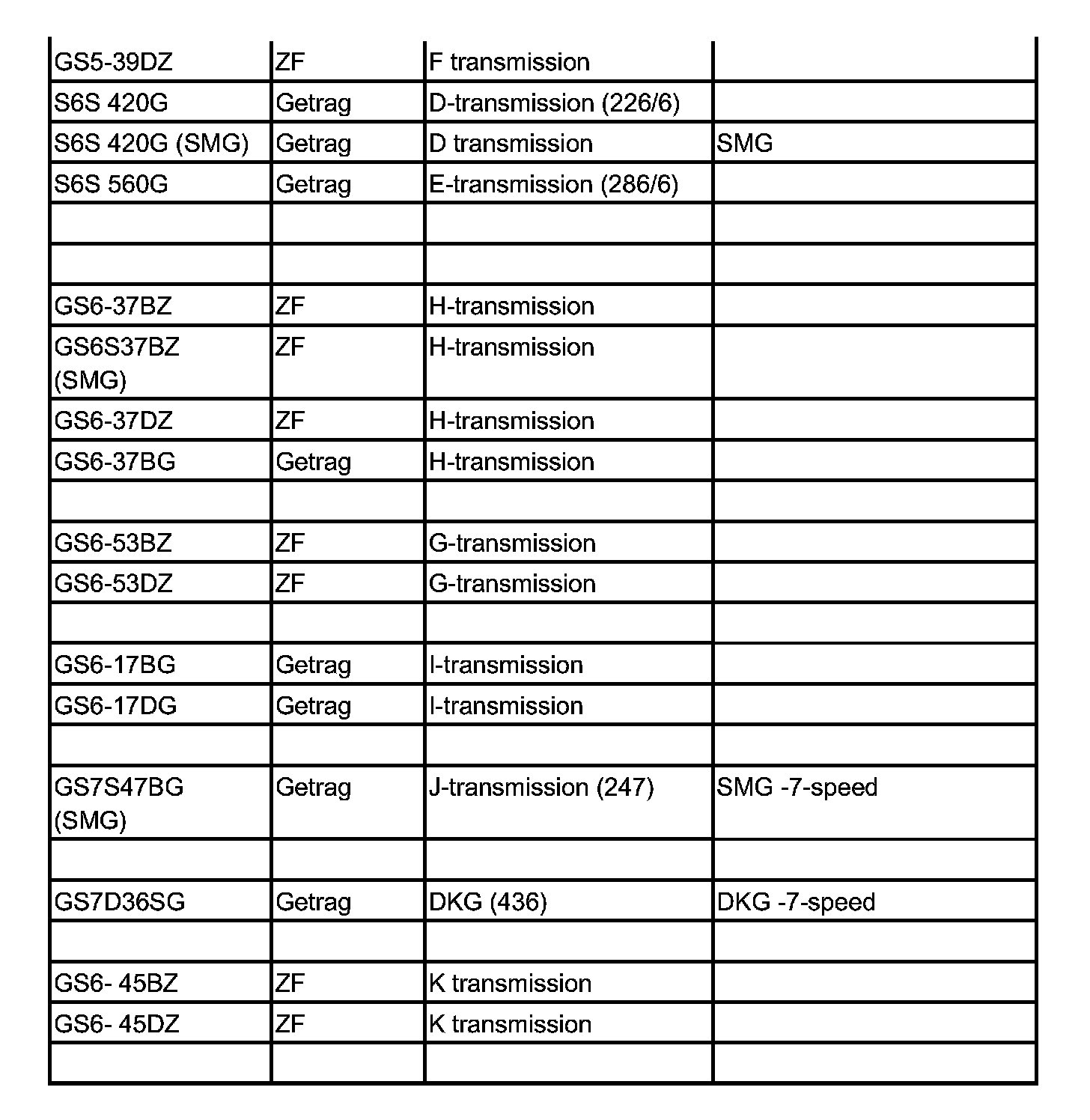

Manual gearbox:

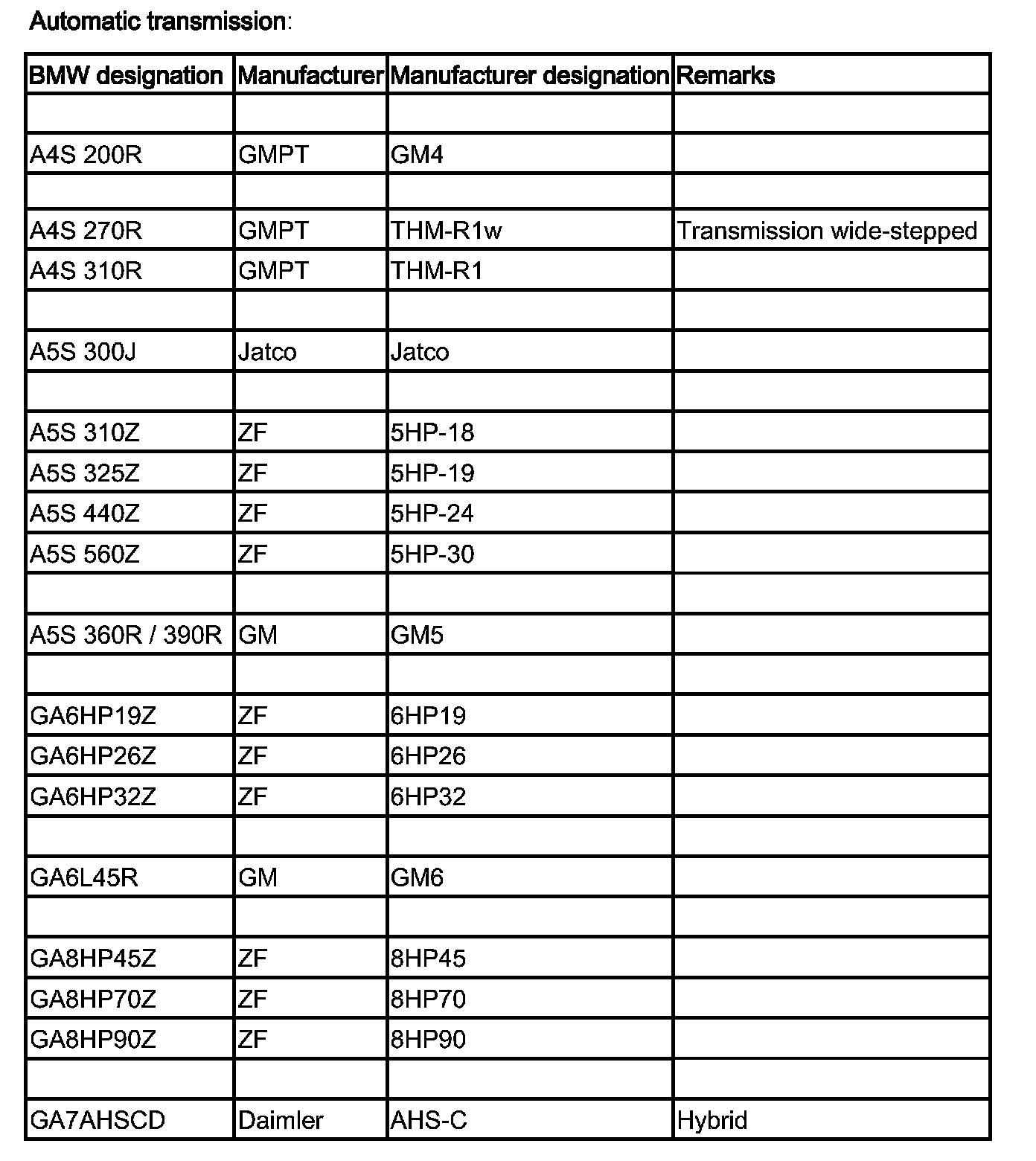

Automatic transmission:
