26 11 090 Removing and installing/replacing front centring mount for propeller shaft

Special tools required:





Necessary preliminary tasks:
^ Remove propeller shaft.





Completely fill centring bore (1) with viscous grease.

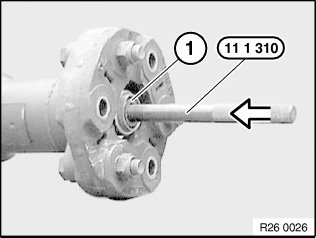

Drive special tool 11 1 310 with a plastic hammer into centring bore.

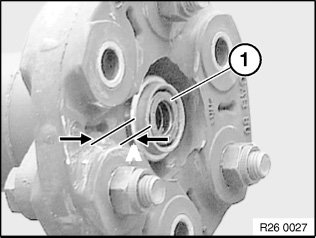

The centring mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

Note:
To drive out the mount, you can also fill the centring bore with water instead of grease.





Installation:
Remove grease/water from mount bore.

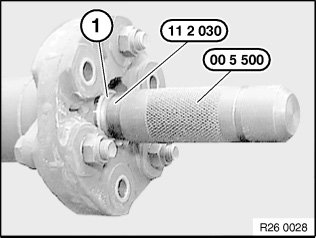

Drive in centring mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Grease centring mount.
- Grease: BMW Service Operating Fluids.





Installation:
Observe protrusion A = 4+2 mm of centring (1).
