37 14 512 Replacing Rear Ride-Height Sensor

37 14 512 - Replacing rear ride-height sensor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).

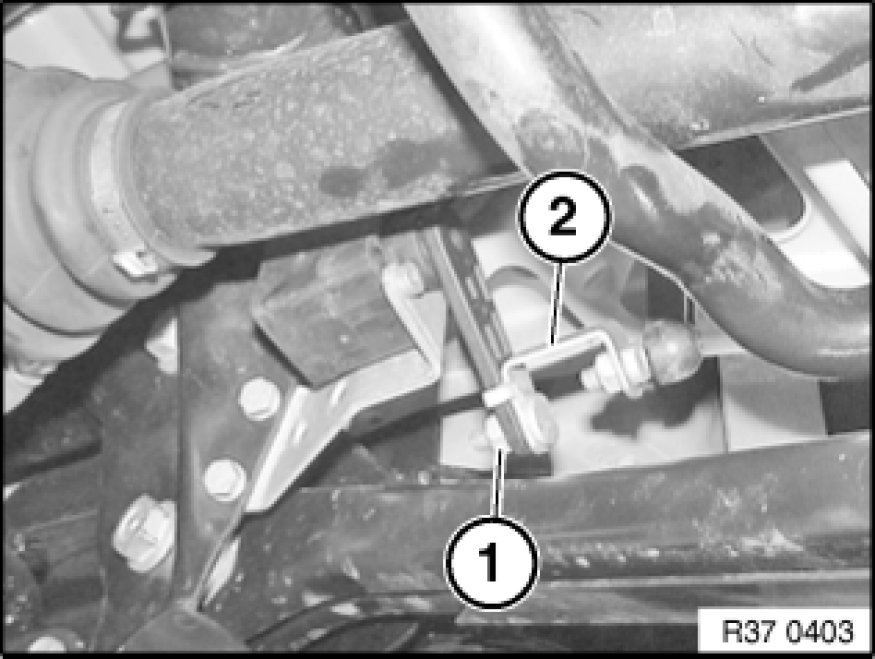

Release nut (1) and disengage jointed rod with lever extension (2).
Tightening torque 37 14 3AZ [1][2]Specifications.

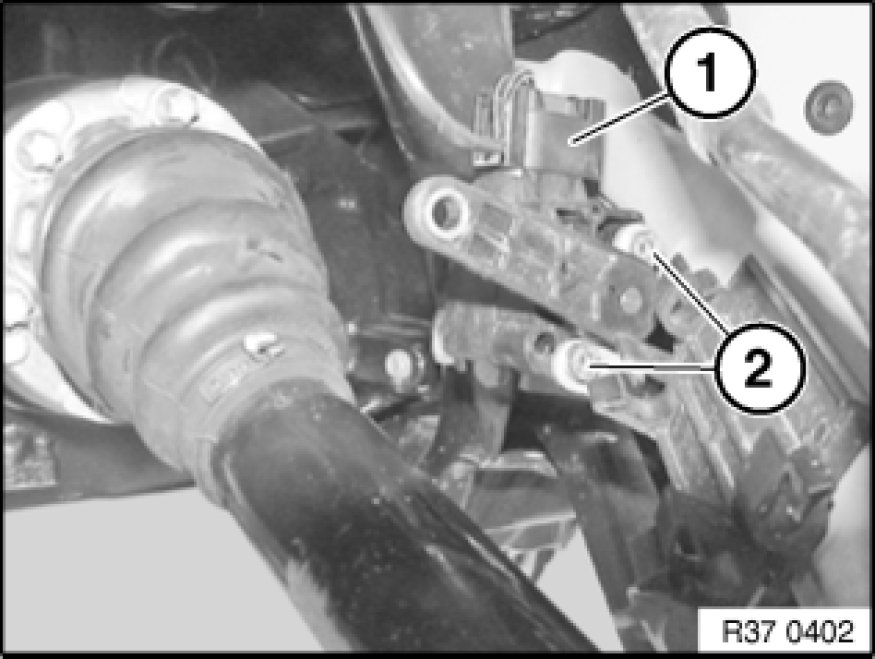

Unfasten plug connection (1) and disconnect.
Release screws (2) and remove ride-height sensor.
Tightening torque 37 14 1AZ [1][2]Specifications.

Installation Note:
Sensor lever (3) must point from ride-height sensor in direction opposite to direction of travel.
