Fuse Box Locations

Fuse Box Locations










The Fuse Box is located underneath the glove box compartment.

To gain access:

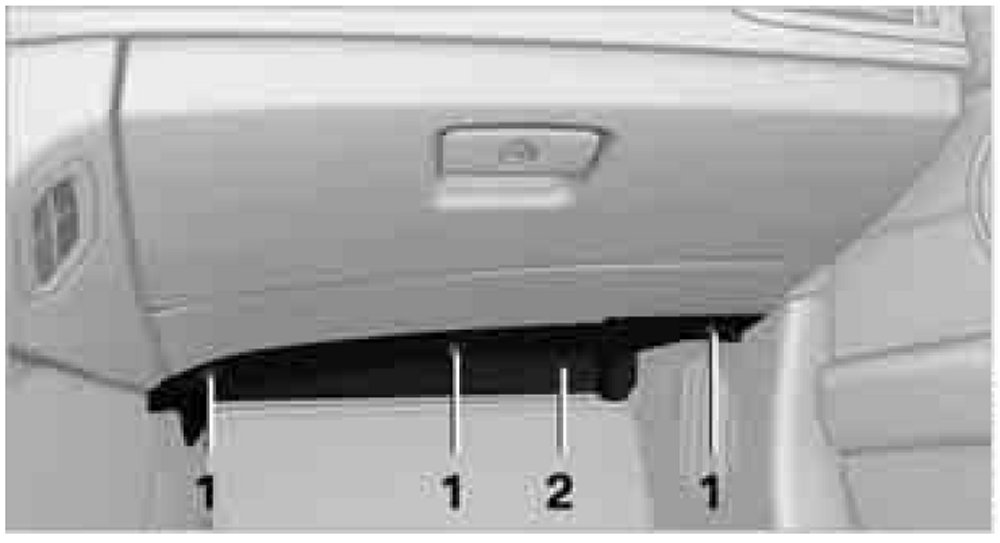

1. Remove the screws 1 using the screwdriver from the onboard vehicle tool kit.






2. Remove the cover 2, undwinding the cable to the footwell lamp*, if necessary.

3. Release the shiny fastner 3.

4. Fold the current distributor 4 downward and pull forward.

A pair of plastic tweesers is found on the current distributor.

See the inside of the cover for information on fuse assignment.

The cover is reinstalled in revers order.
