Home >> BMW >> 2009 >> Z4 sDrive35i (E89) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> F68

F68

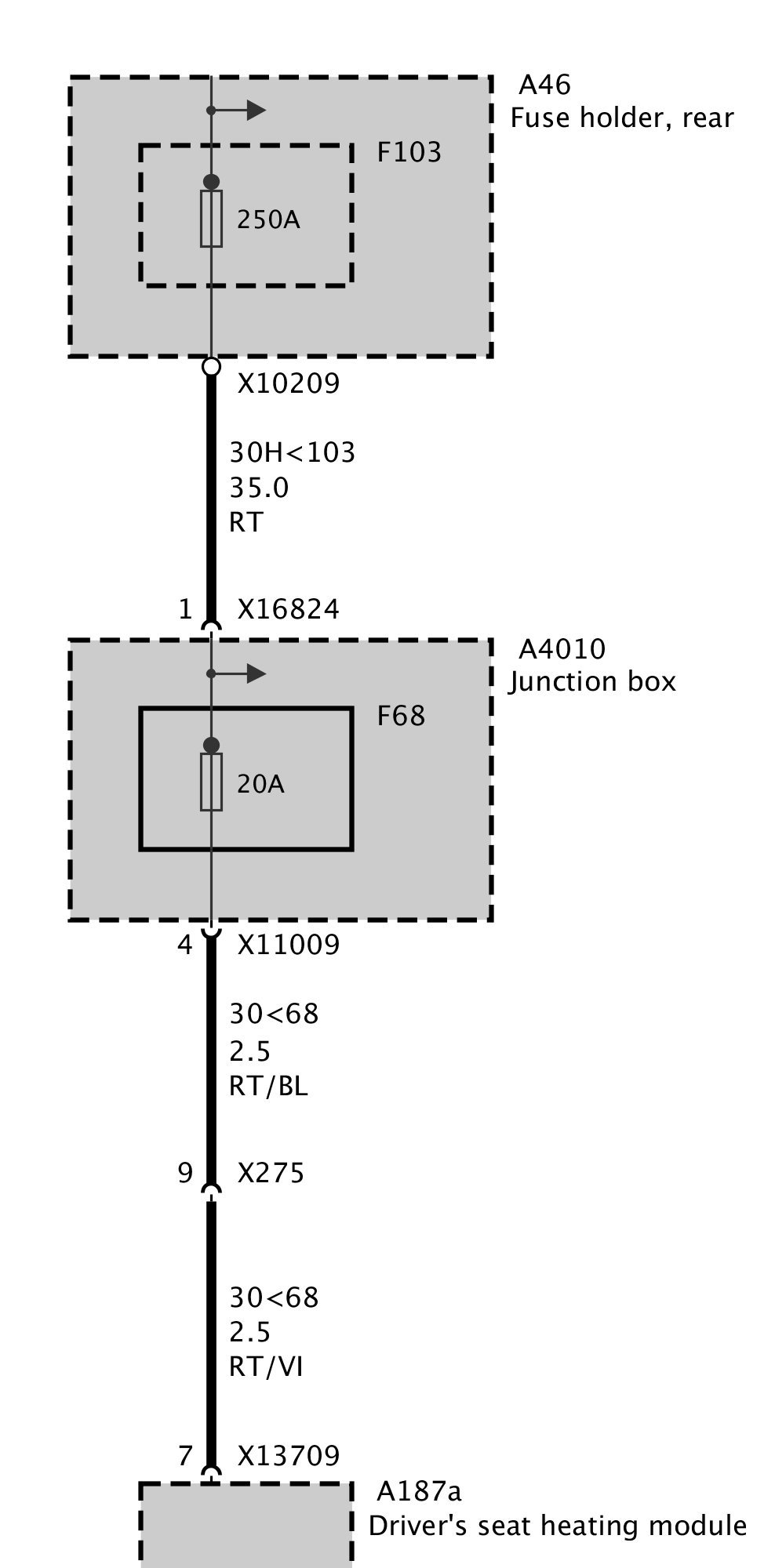

Fuse F68 (Z-Reihe_Z4-E89)
