Washer Fluid Level Switch: Service and Repair

61 31 492 - Replacing level switch for windscreen washer system





Unlock retaining lugs (1).
Remove fluid tank for windscreen washer system (2).

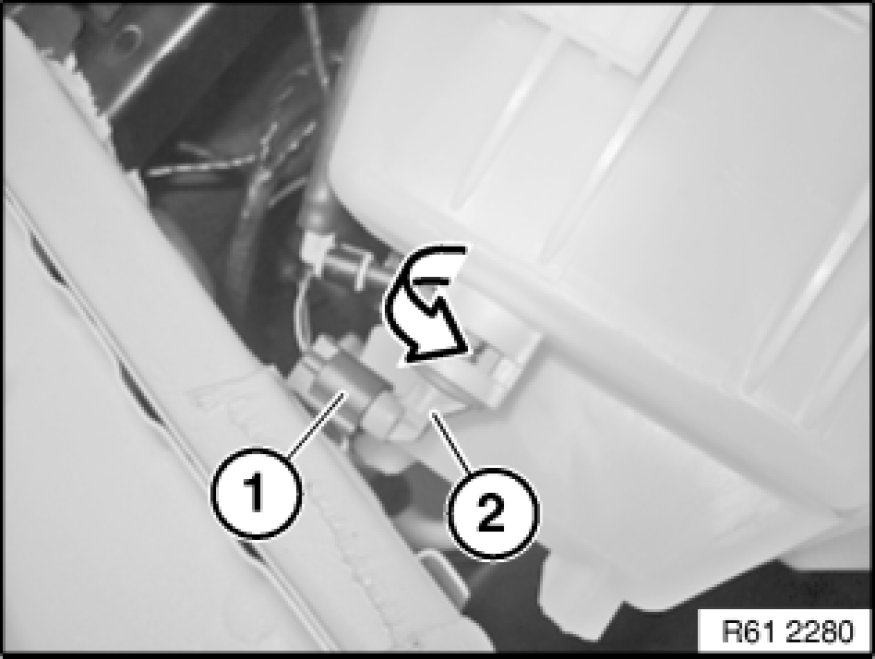

Unfasten plug connection (1) and disconnect.
Turn level switch for windscreen washer system (2) in direction of arrow through approx. 90° and pull out downwards.

Installation:
Make sure level switch for windscreen washer system (2) is correctly seated.
