Steering Wheel Heater Switch: Service and Repair




61 31 062 - Removing and installing/replacing button for steering wheel heating

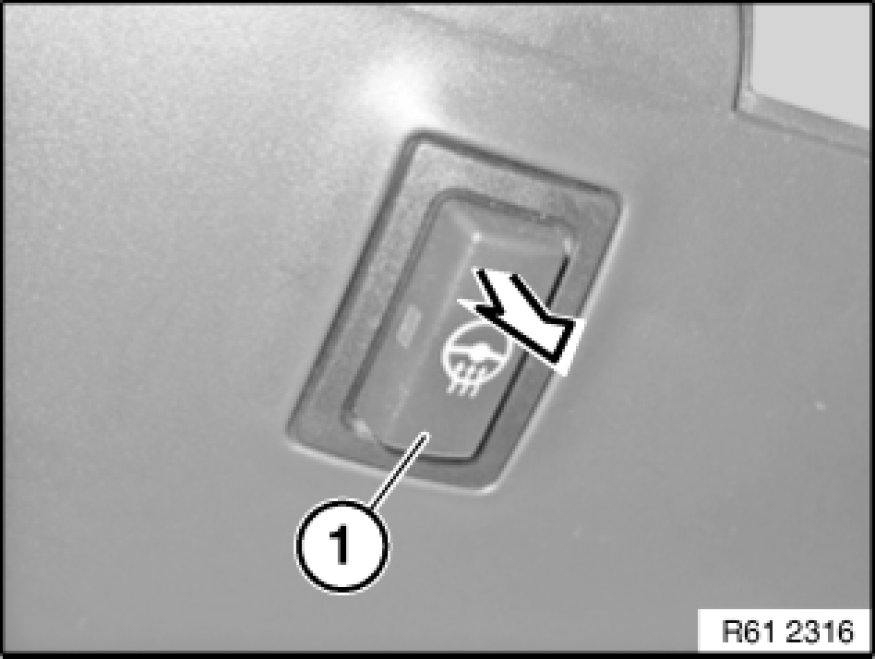

Lever out button for steering wheel heating (1) with suitable tool in direction of arrow.
Disconnect plug connection behind and remove button for steering wheel heating (1).
