Home >> BMW >> 2009 >> Z4 sDrive35i (E89) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Locations

Engine - Coolant Temperature Sensor/Switch: Locations

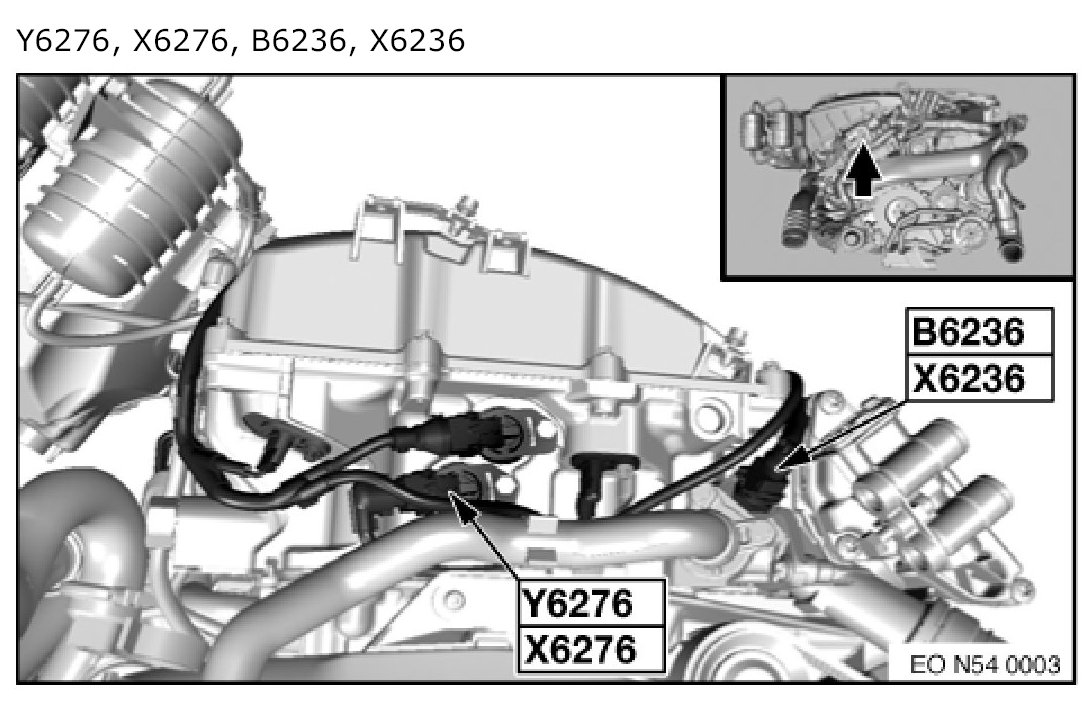

B6236a Engine Coolant Temperature Sensor

Y6276, X6276, B6236, X6236 (N54 Engine)
