51 24 146 Removing and Installing Button For Actuating Rear Lid

51 24 146 - Removing and installing button for actuating rear lid





Necessary preliminary tasks:
- Remove rear lid lock Service and Repair

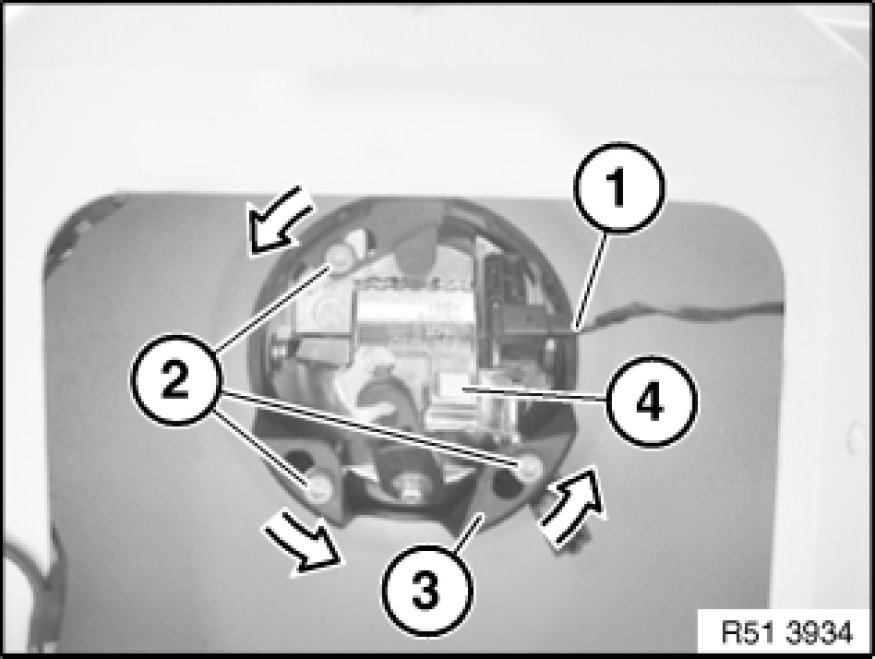

Disconnect plug connection (1) at microswitch.
Slacken screws (2) until retaining ring (3) can be turned.
Tightening torque 51 24 11AZ [1][2]Specifications.
Turn retaining ring (3) in direction of arrow and remove button (4) from rear lid.

Installation:
Perform function check with rear lid open.
