72 12 004 Removing and Installing/Replacing Airbag Module For Driver's Knee Protection

72 12 004 - Removing and installing/replacing airbag module for driver's knee protection





Warning!
Read and comply with safety regulations [1][2][3]72 00 ... Safety Precautions and General Information for handling airbag modules and pyrotechnic belt pretensioners.
Follow instructions for unlocking and locking airbag plug connections Service and Repair.
Incorrect handling can activate airbag and cause injury.





Important!
Operations on pyrotechnic devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.





Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 184 Removing and Installing/Replacing Panel For Pedals





Important!
Secure airbag module against falling out.

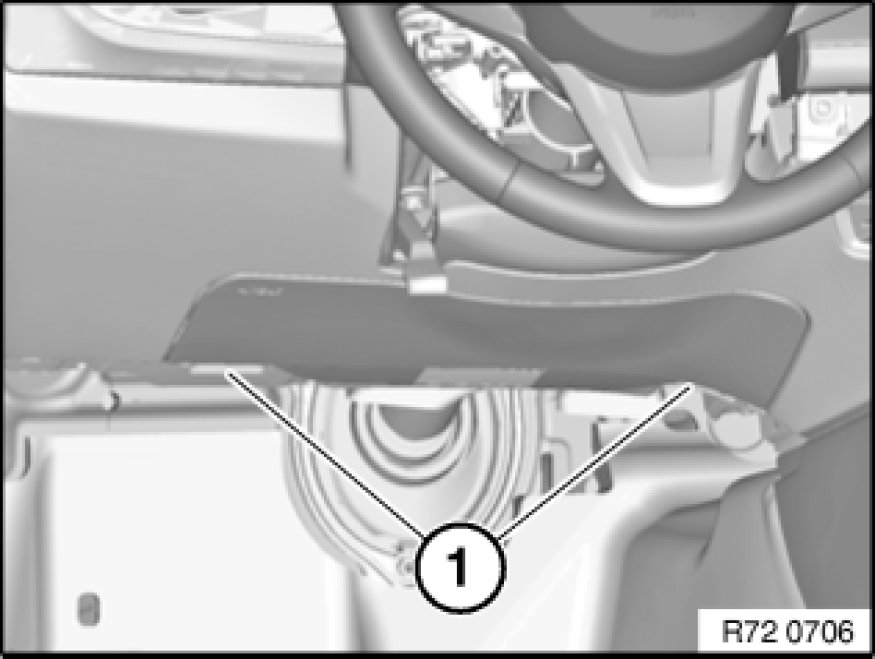

Unscrew nuts (1).

Tightening torque 72 06 02AZ 72 12 Airbag Modules.
Feed airbag module out of instrument panel trim and unlock and disconnect plug connection Service and Repair behind.





Installation Note:

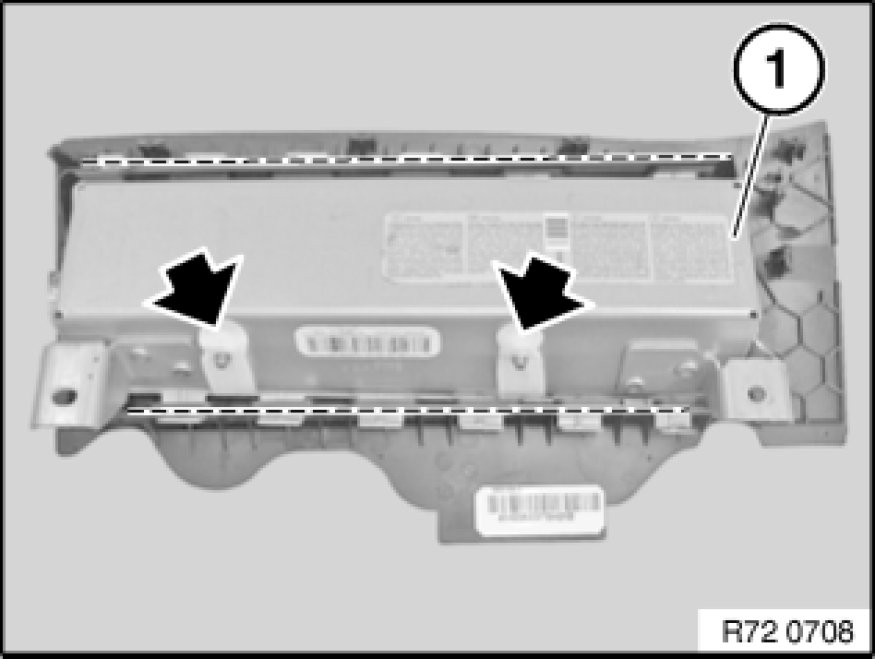

Make sure airbag module (1) is correctly seated in instrument panel trim.
Make sure lugs are correctly seated on threaded bolts.
