36 11 130 Removing and Installing/Replacing Front Left RDC Trigger Transmitter




36 11 130 - Removing and installing/replacing front left RDC trigger transmitter





Necessary preliminary tasks:
- Remove front left wheel arch trim 51 71 039 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Rear Section).

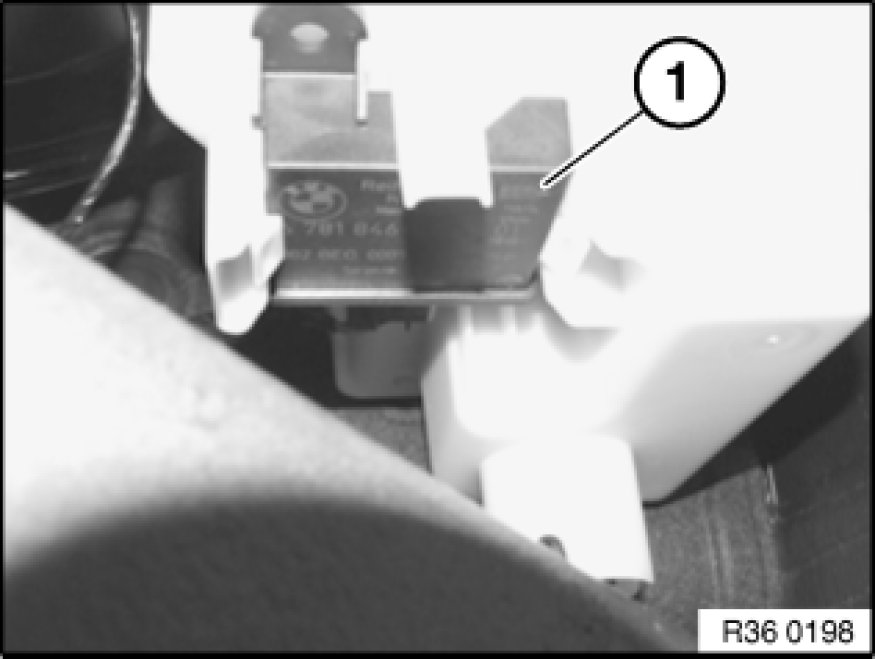

Unclip RDC transmitter (1).

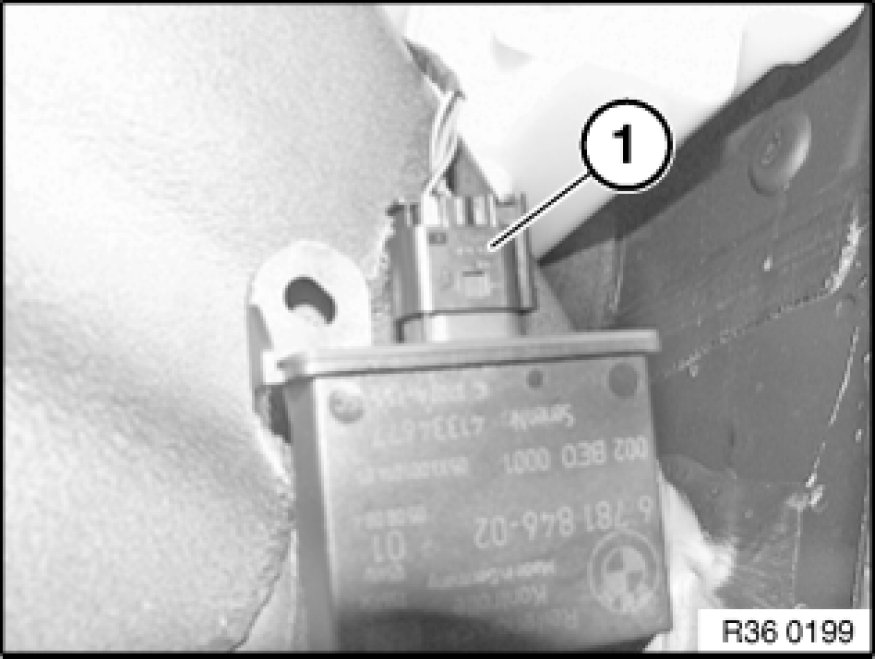

Disconnect plug connection (1).
