Tire Pressure Module: Service and Repair

36 11 105 Removing and installing/replacing RDC (Tyre Pressure Control) control unit






Necessary preliminary tasks:
- Remove right luggage compartment wheel arch panel

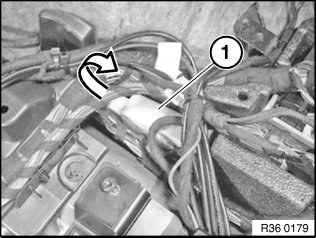

Swing out RDC control unit (1).

Disconnect plug connection and remove RDC control unit.
