64 11 871 Removing and Installing/Replacing Servodrive For Blending Flap (Right, Automatic Air Conditioning)

64 11 871 Removing And Installing/replacing Servodrive For Blending Flap (right, Automatic Air Conditioning)







Necessary preliminary tasks:
- Remove heater/air conditioner fan

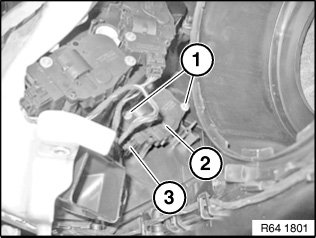

Release screws (1).
Pull out servodrive for blending flap (2).
Unlock plug connection (3) and disconnect.







Replacement:
Servomotors must be re-addressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Re-address flap motors
