A12 Multiple Restraint System Control Unit

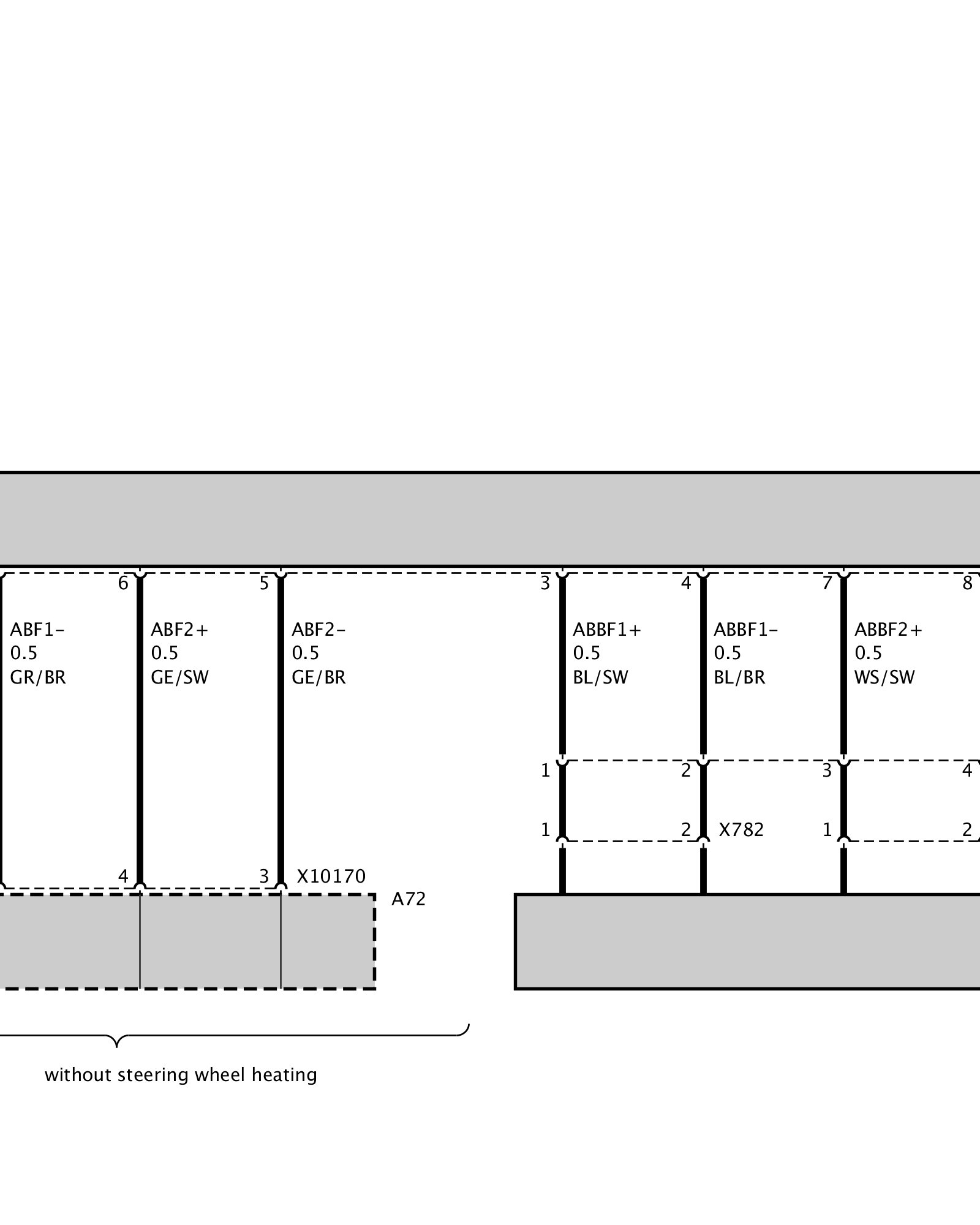

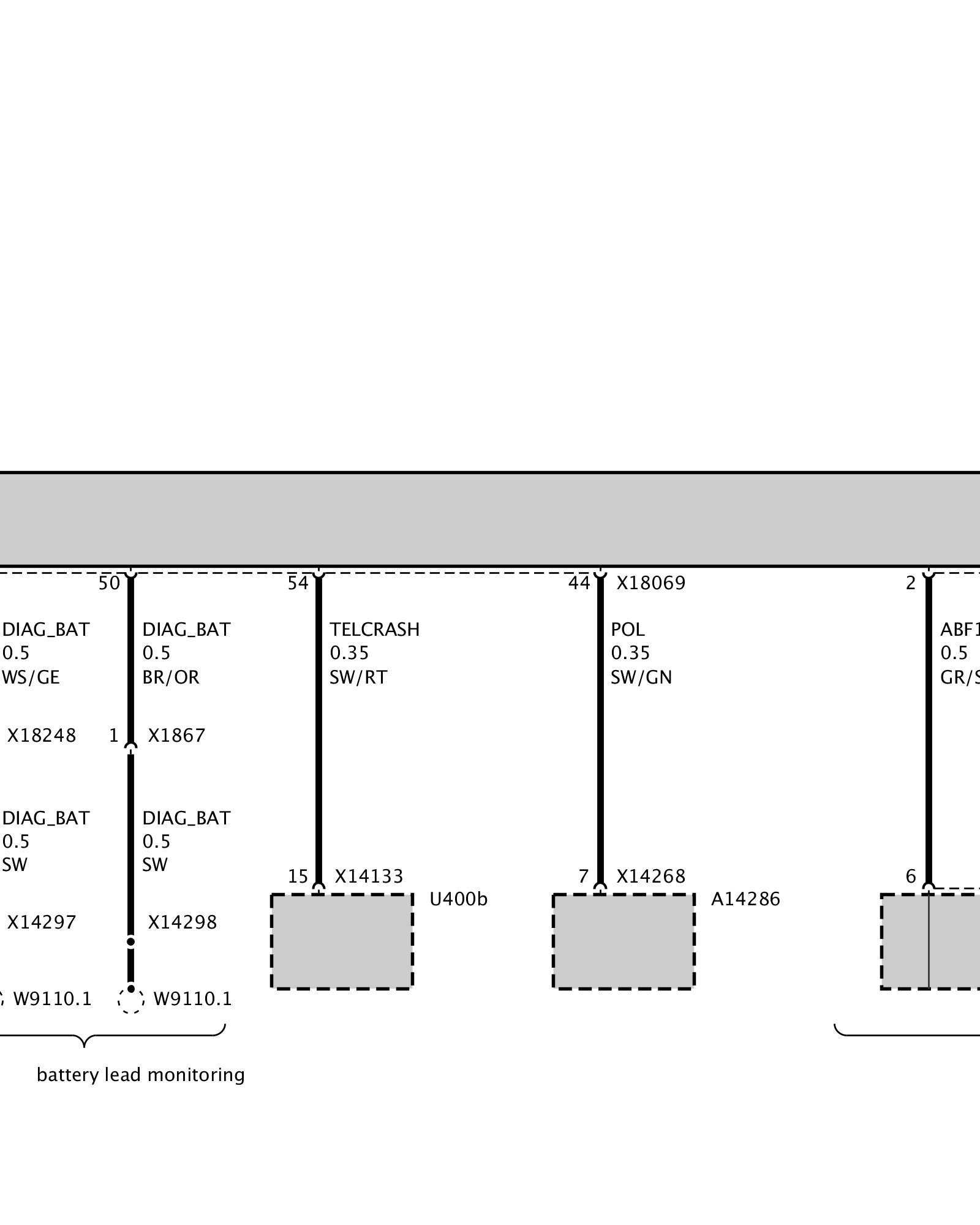

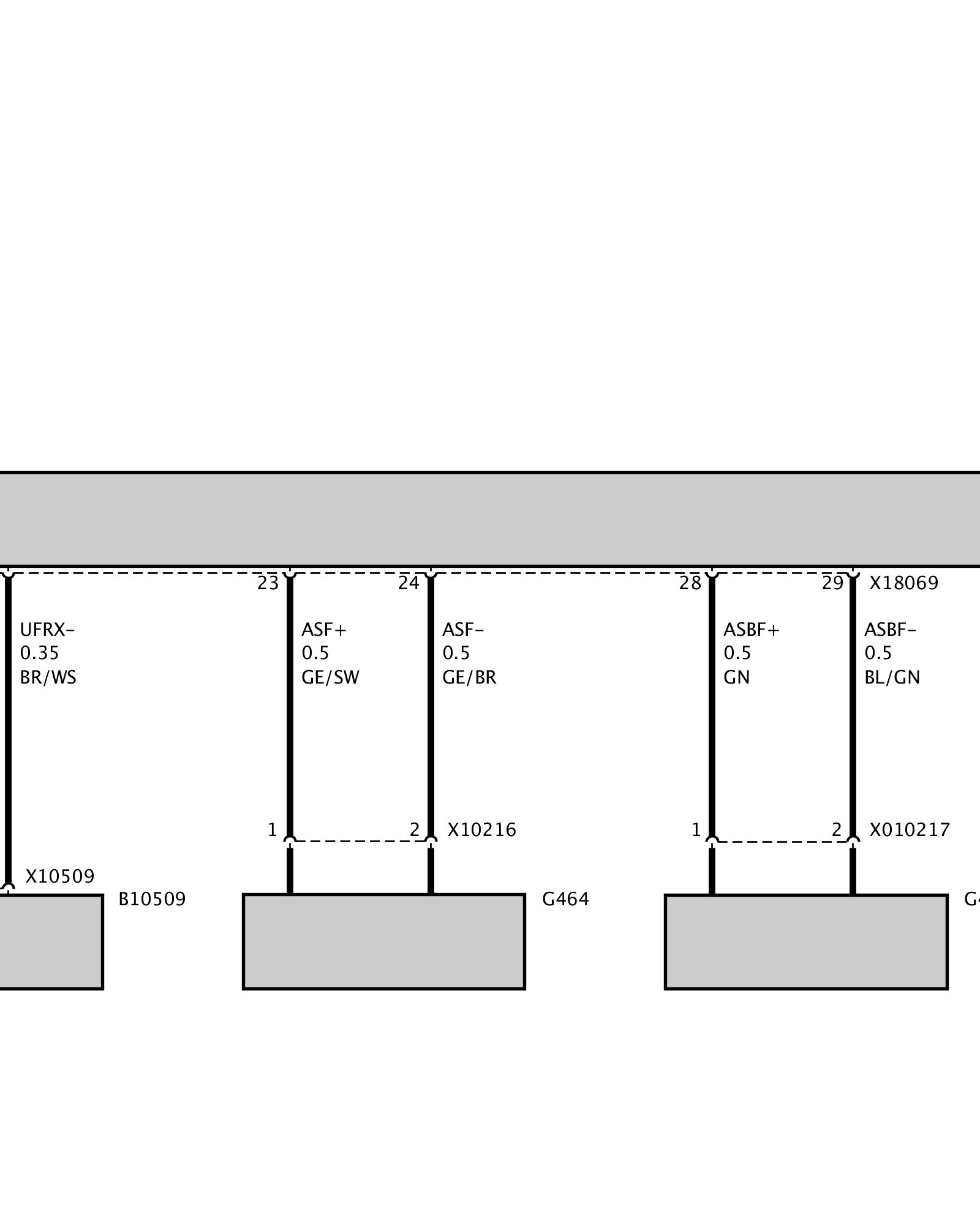

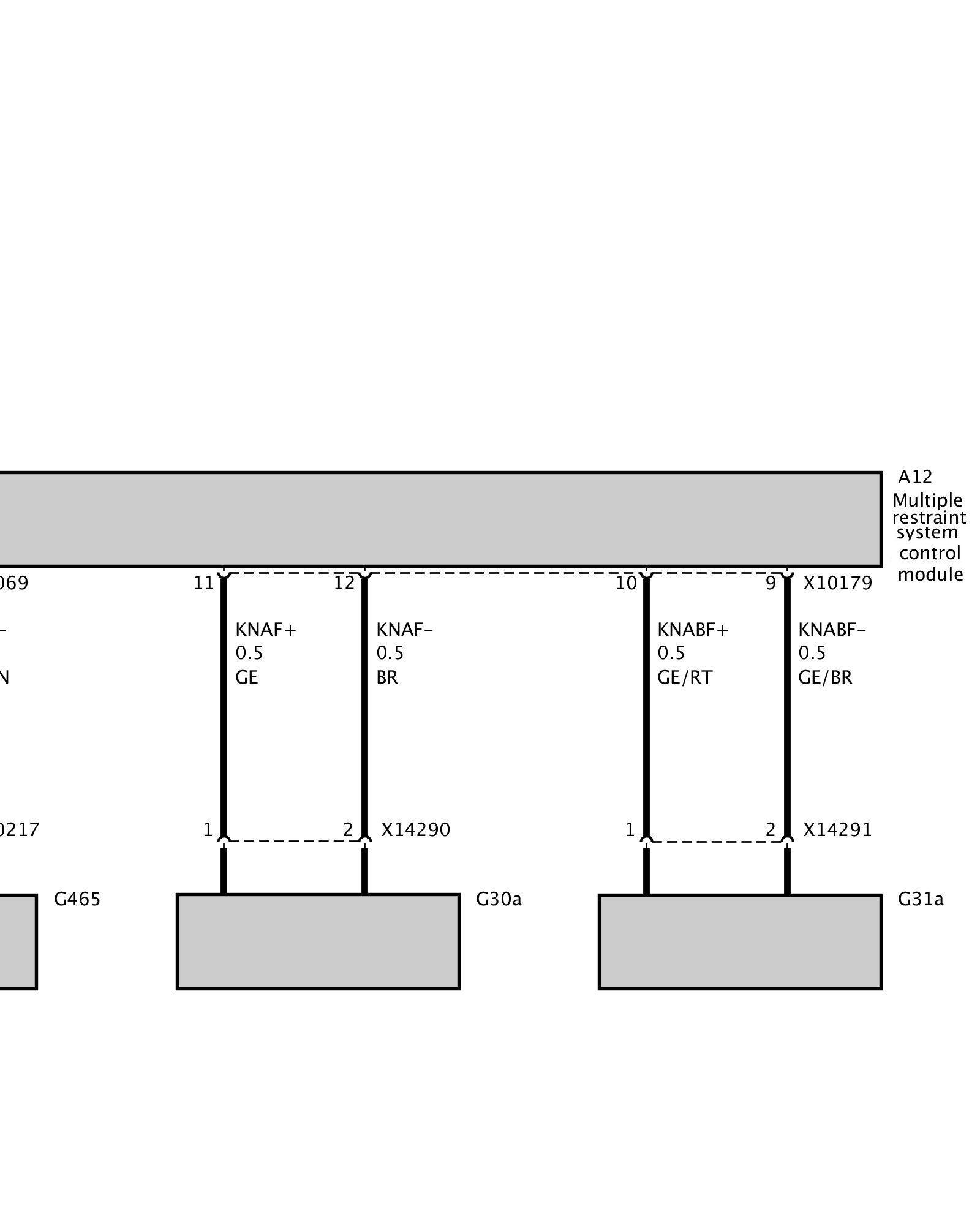

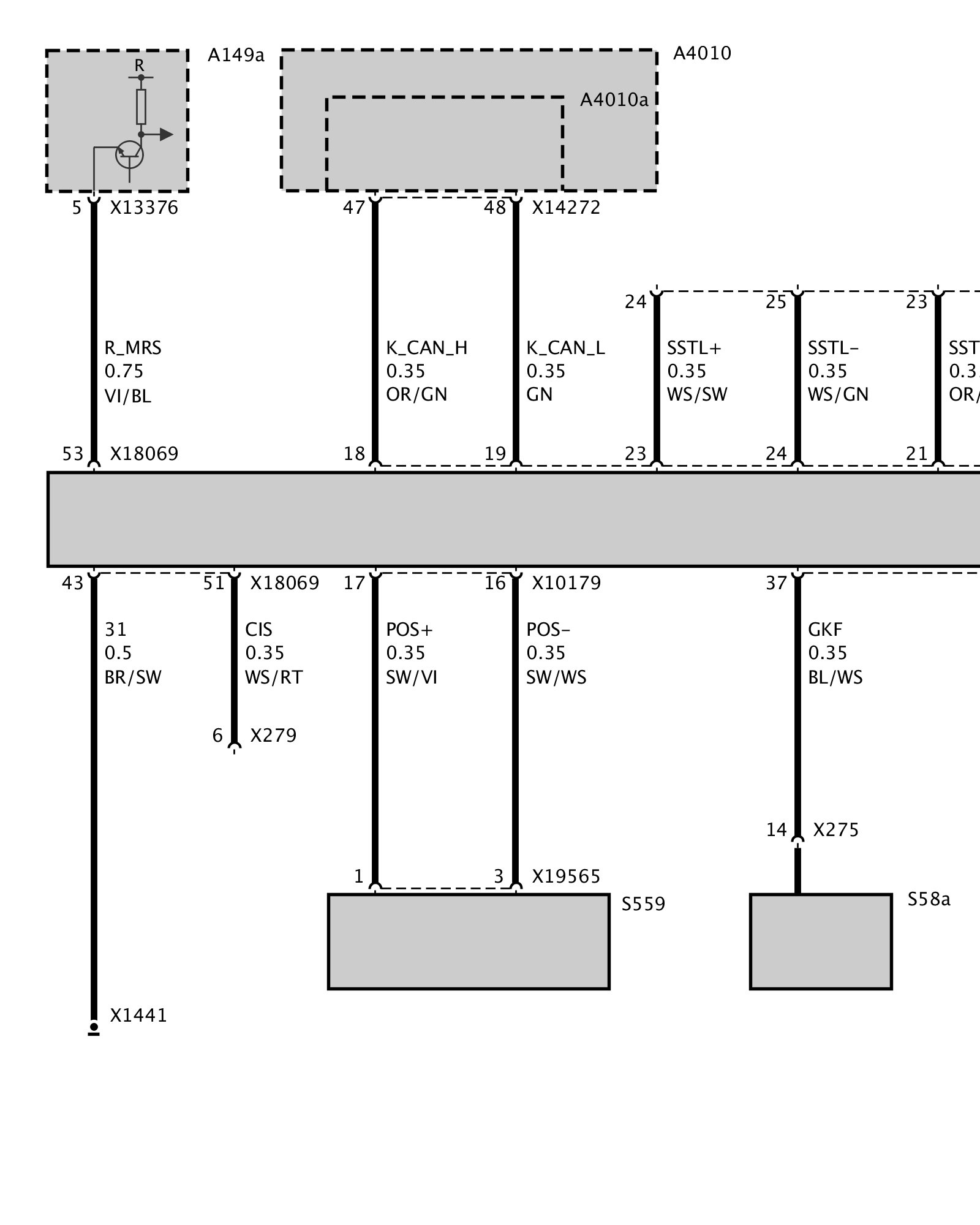

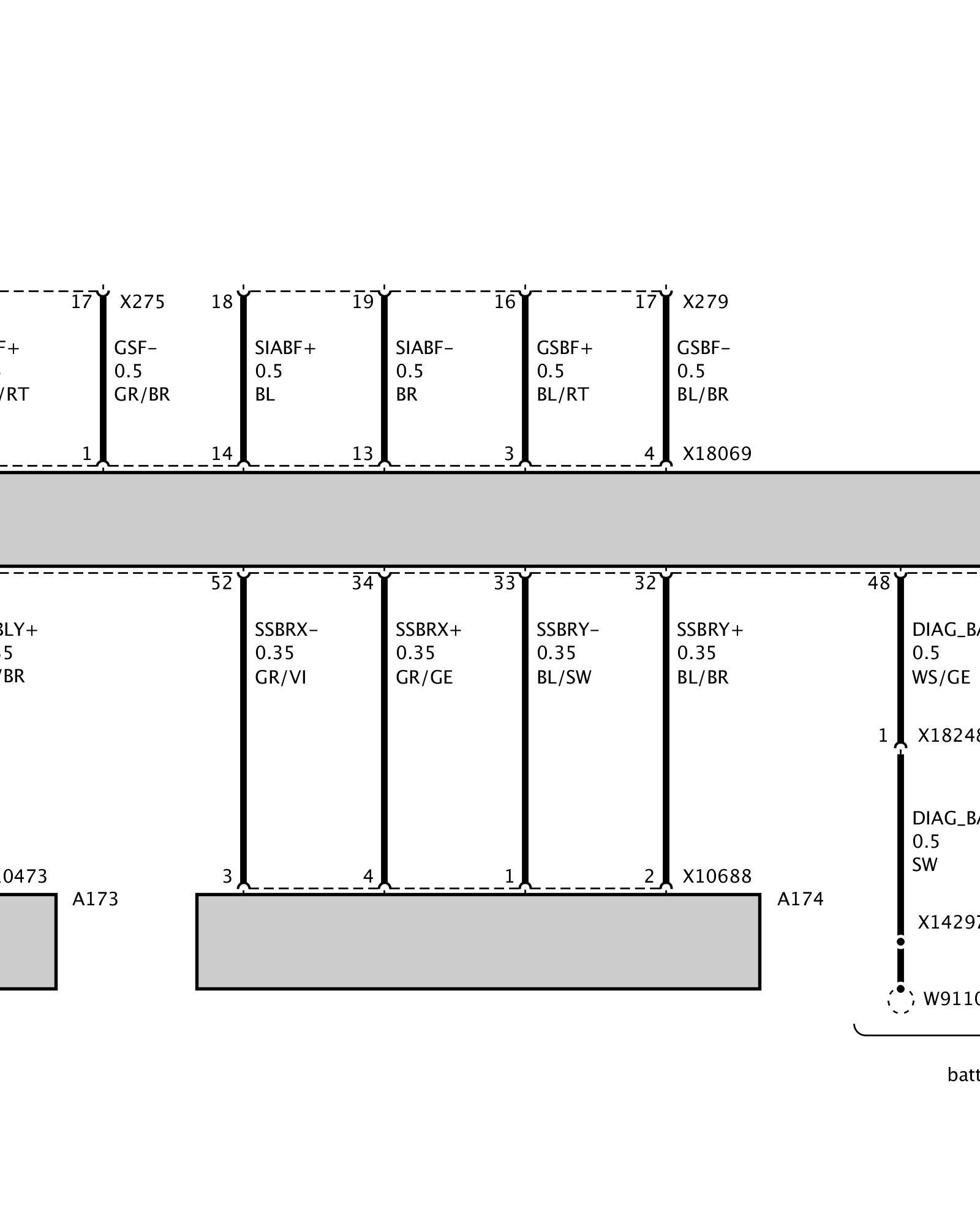

A12 Multiple Restraint System Control Unit (Z-Reihe_Z4-E89 With USA_LHD)


Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:




Part 7:




Part 8:




Part 9:
