Fuse F70 (As of 09/07 Without S65 Engine)
Fuse F70 (As of 09/07 Without S65 Engine)
Fuse F70 (As of 09/07 Without S65 Engine)

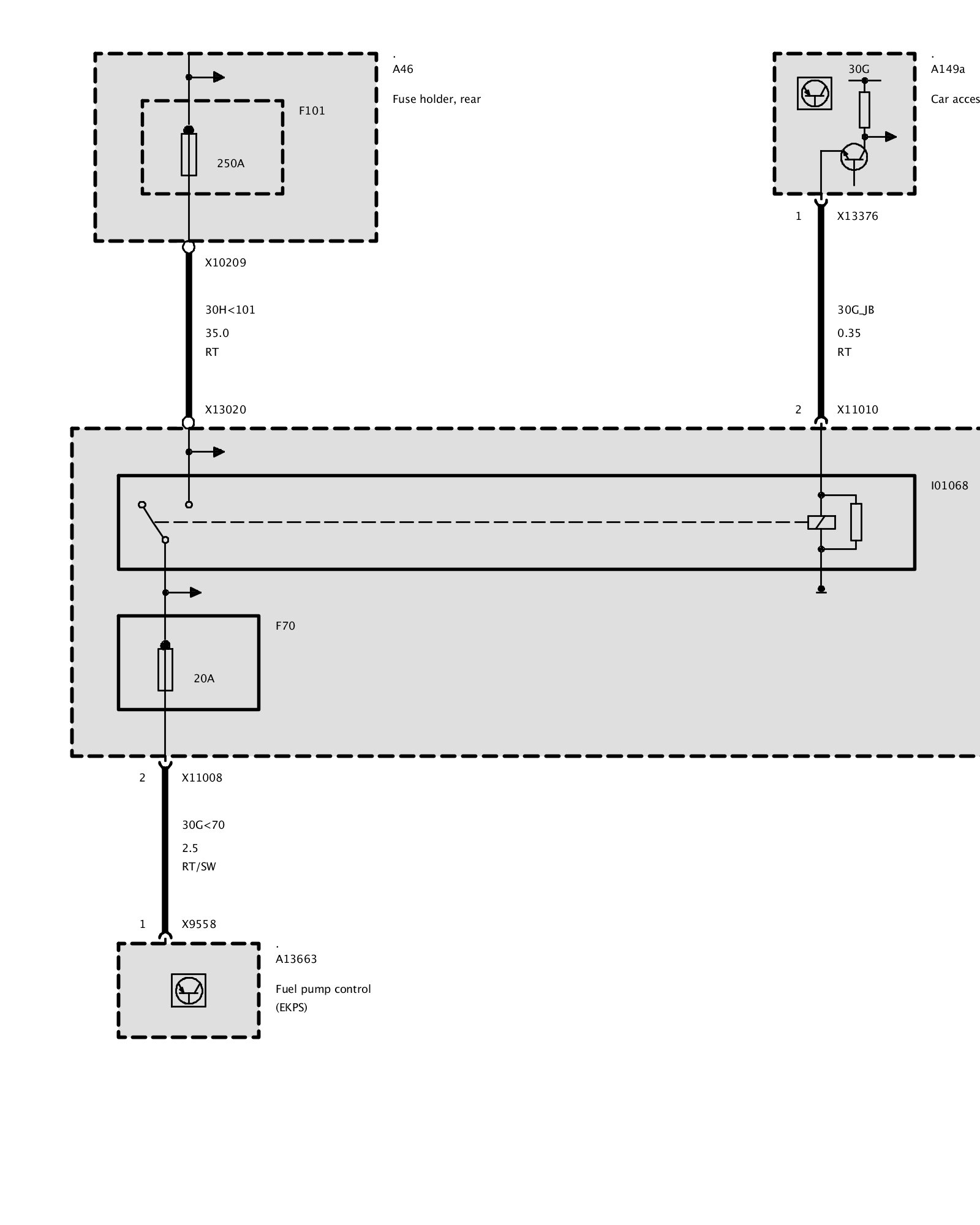

Part 1:

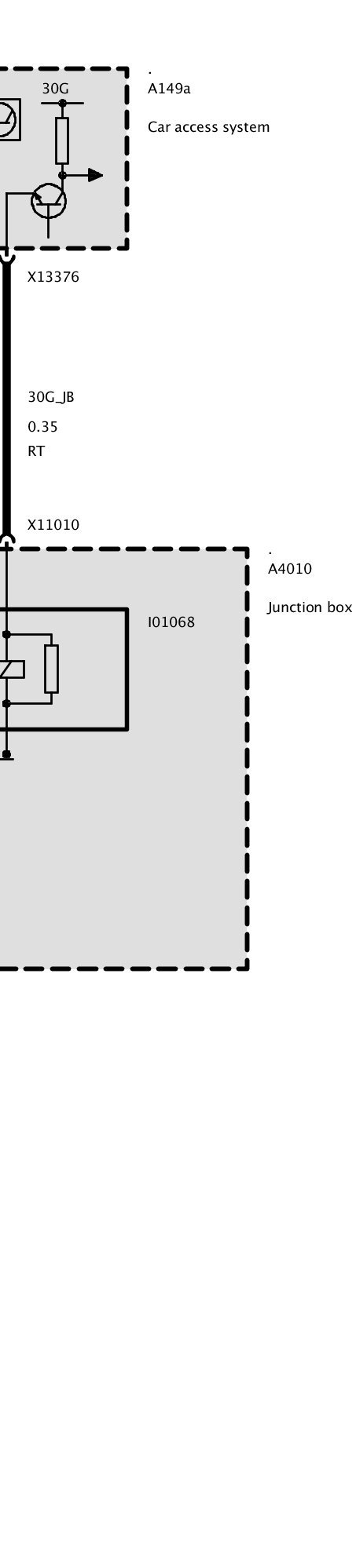

Part 2:
