Home >> BMW >> 2009 >> Z4 sDrive35i (E89) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X6 >> X60003 >> A6000 DME Control Unit (Without Automatic Engine Start-Stop)

A6000 DME Control Unit (Without Automatic Engine Start-Stop)

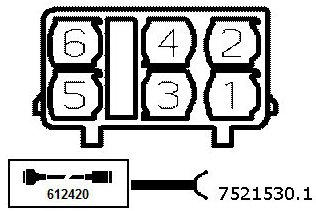

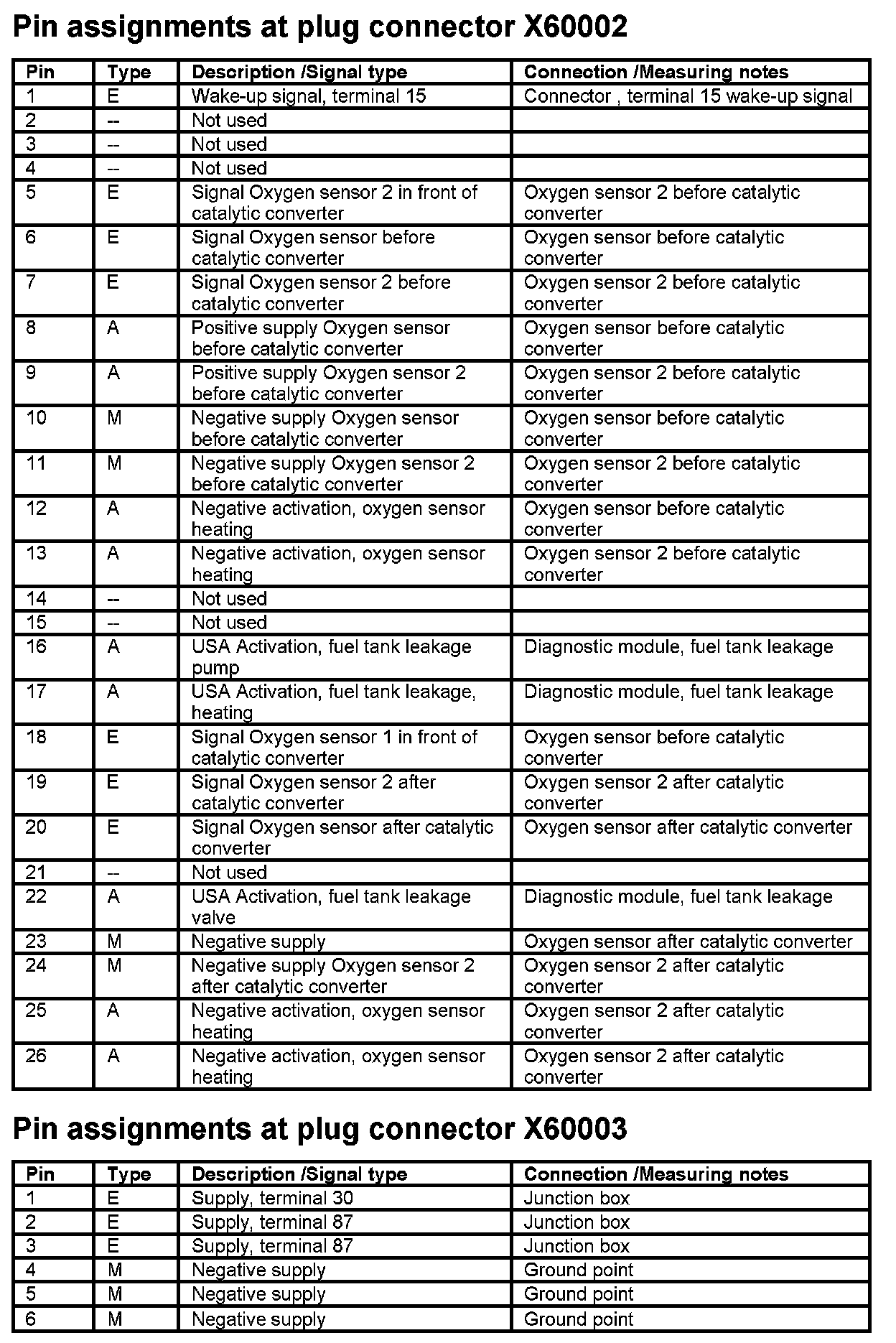

X60003








A6000 DME Control Unit
