Front Seat
>>
Longitudinal Adjustment
Longitudinal Adjustment
Forward / Rear Adjustment

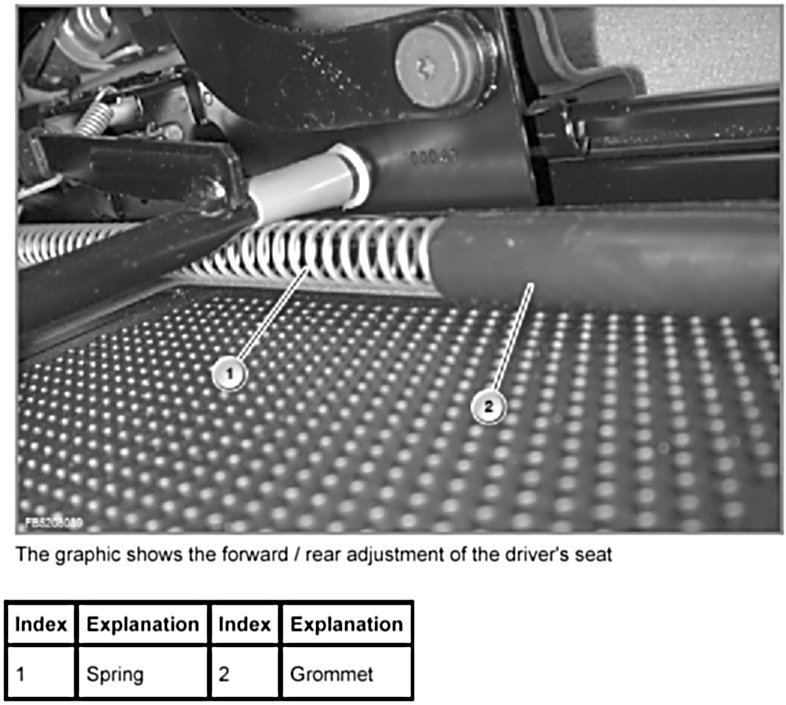

Repair instruction for noises during forward / rear adjustment
Cause:
Spring in grommet squeaks.
NOTE:
Only vehicles built up to week 31/2008 and vehicles with two doors.
