54 37 025 Replacing Rear Roof Shell Seal

54 37 025 - Replacing rear roof shell seal





Necessary preliminary tasks:
- Partially open Convertible top

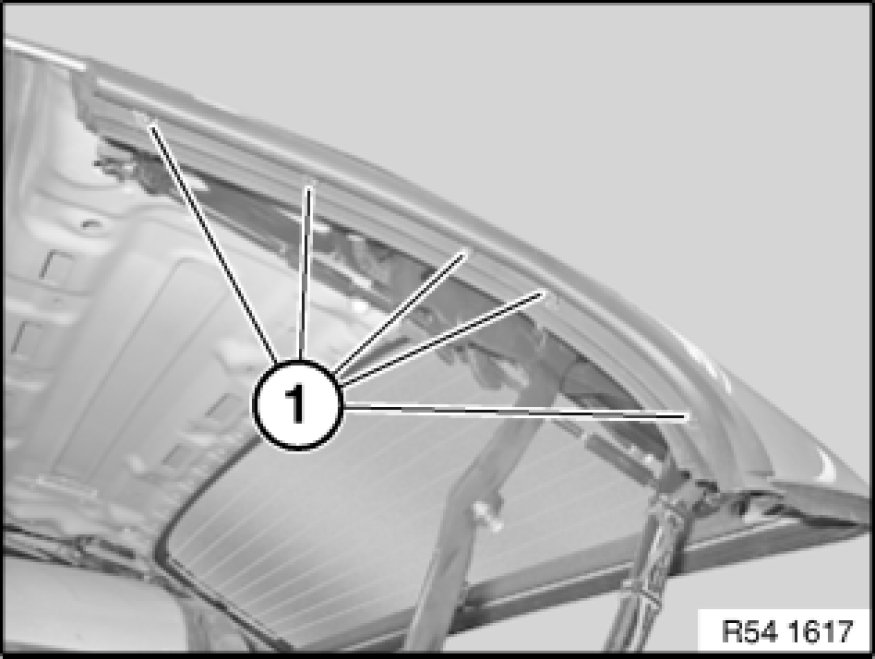

Remove seal (1).

Installation:
Make sure seal (1) is correctly seated on seal carrier.

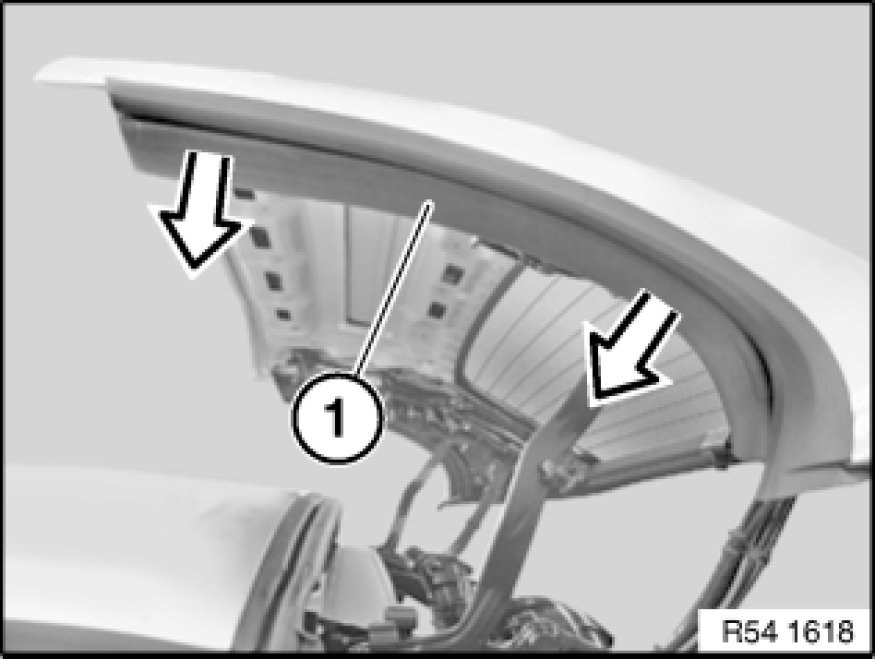

Release left and right screws (1).
Tightening torque 54 37 14AZ [1][2]Specifications.





Installation:
Seal carrier (1) must rest flush against front roof shell seal.

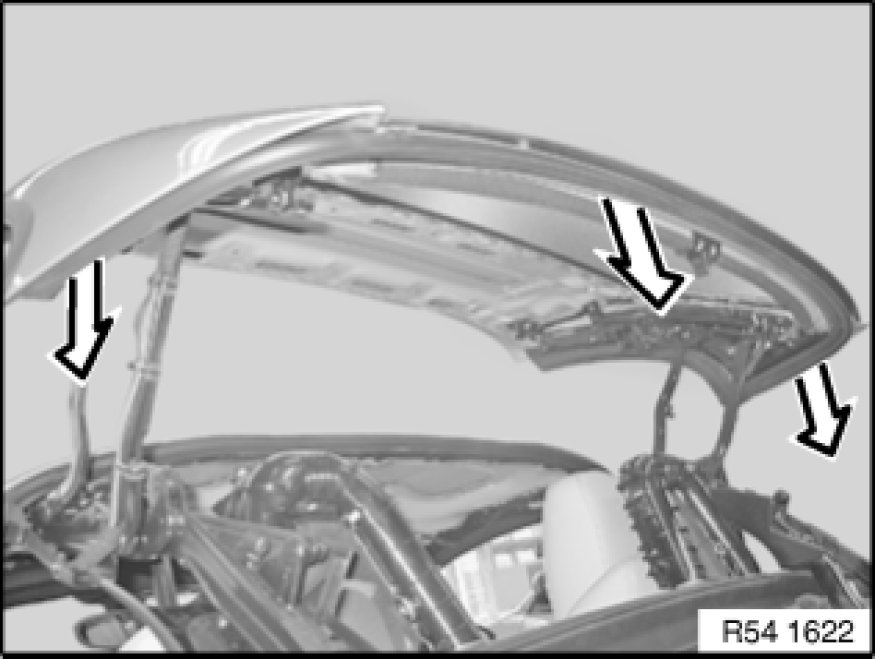

Detach seal (1) from seal carrier.

Installation:
Make sure seal (1) is correctly seated on seal carrier.





Check retraction depth of windows and adjust if necessary.
