51 45 195 Removing and Installing/Replacing Trim For Instrument Panel, Bottom Right

51 45 195 Removing And Installing/Replacing Trim For Instrument Panel, Bottom Right







Necessary preliminary tasks:
- Move front passenger seat completely towards rear







ECE only:
Release screws (1).
Pull back trim for instrument panel (2) Disconnect and unlock all plug connections.
Remove trim for instrument panel (2)

Installation:
Make sure trim for instrument panel (2) is correctly seated on footwell air outlet above.







US only:
Release screws (1).
Pull back trim for instrument panel (2)
Disconnect and unlock all plug connections.
Remove trim for instrument panel (2)

Installation:
Make sure trim for instrument panel (2) is correctly seated on footwell air outlet above.







Replacement

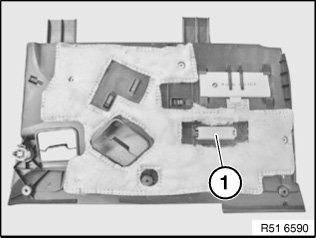

Remove footwell light (1).
