Trunk / Liftgate Weatherstrip: Service and Repair

51 71 360 - Removing and installing/replacing seal for rear lid





Necessary preliminary tasks:
- If necessary, open folding roof
- If necessary, open luggage compartment lid

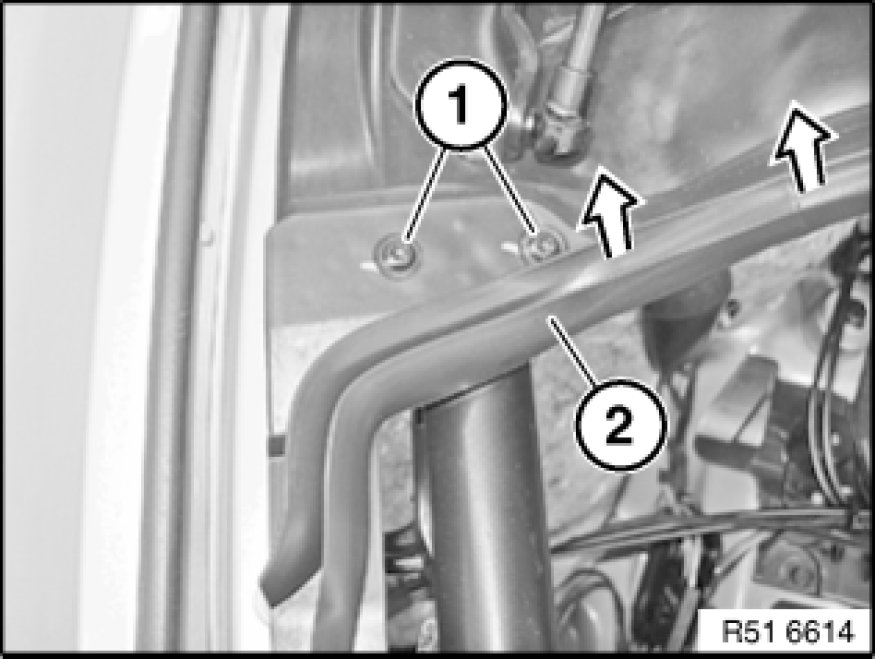

The right side is removed in the same way as the left side.
Release screws (1).
Remove seal (2).

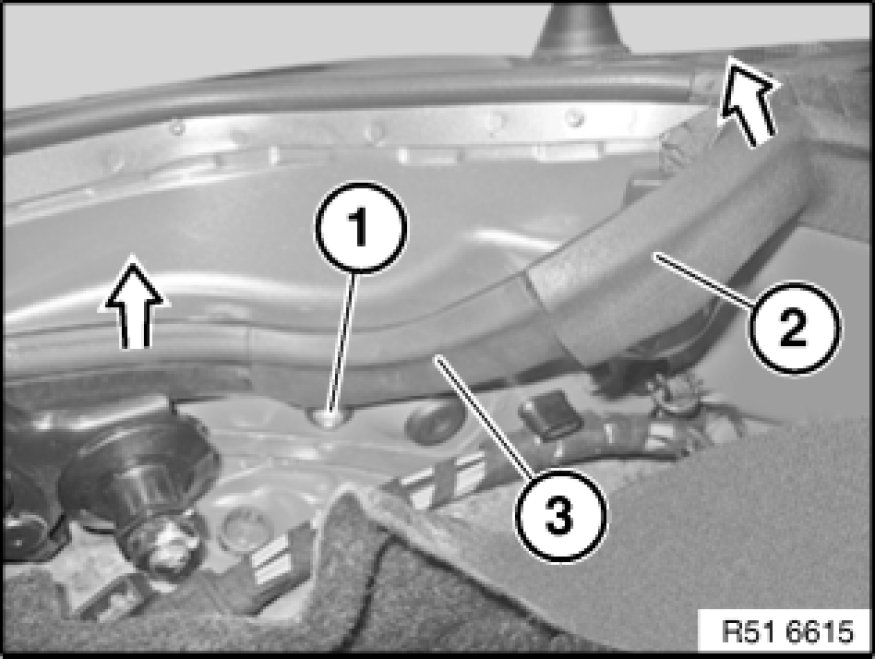

The right side is removed in the same way as the left side.
Release screw (1).
Lever off seal (2).
Lever off seal (3).

Installation:
- Observe fitting of seals 51 70 ... Fitting Seals
