41 5. ... Removing and Installing Door

41 5. ... - Removing and installing door





Important!
Do not damage adjoining body parts.

The illustrations are schematic representations and are to be applied to the relevant vehicle type.

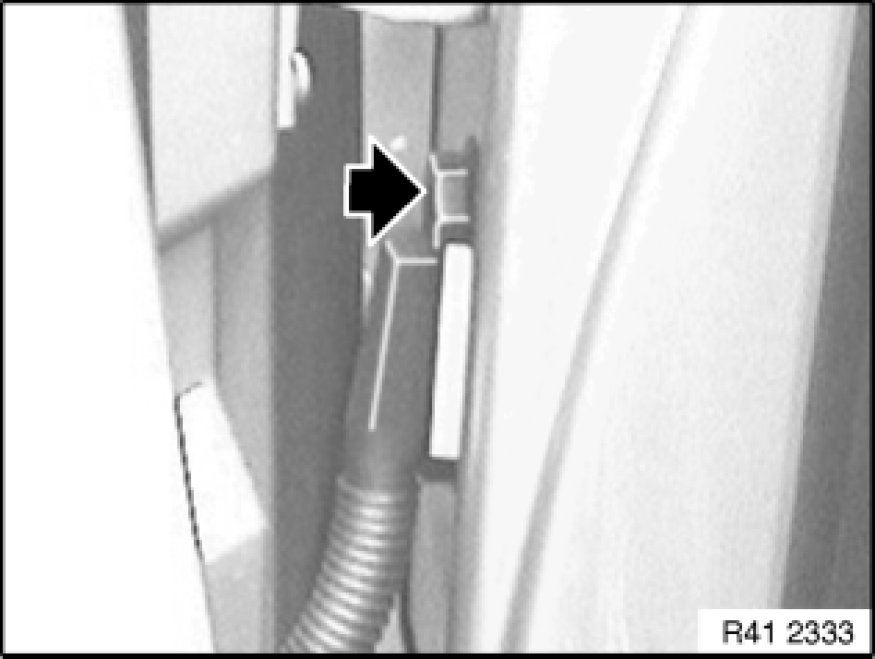

Release screw on connector frame.
Tightening torque 41 51 4AZ [1][2]Specifications.





Note:
Secure door against closing.

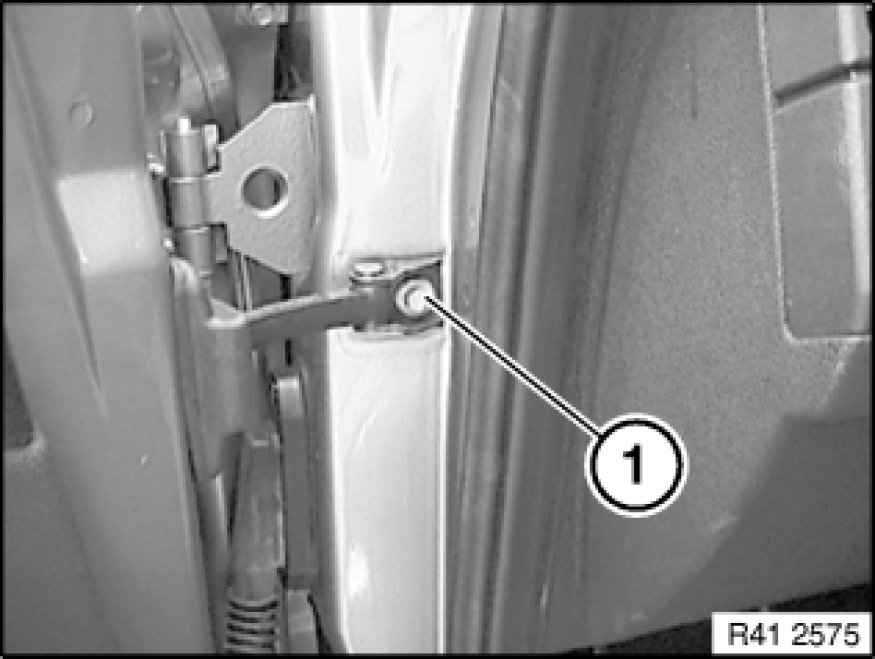

Release screw (1) on door retainer.
Tightening torque 51 21 3AZ [1][2]Door Locks.
Open door up to stop.

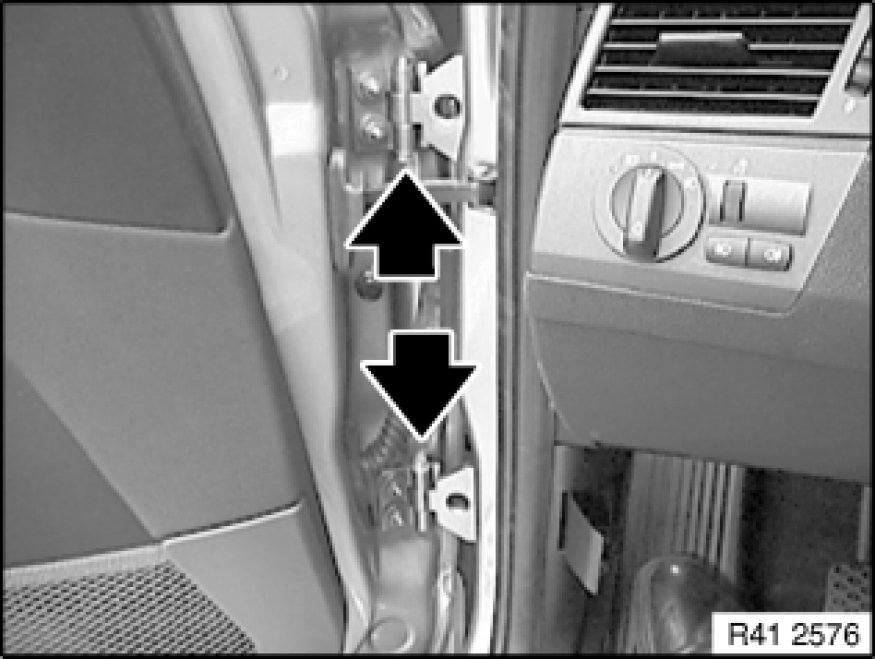

Release nuts between both hinge elements at top and bottom.
Tightening torque 41 51 1AZ [1][2]Specifications.

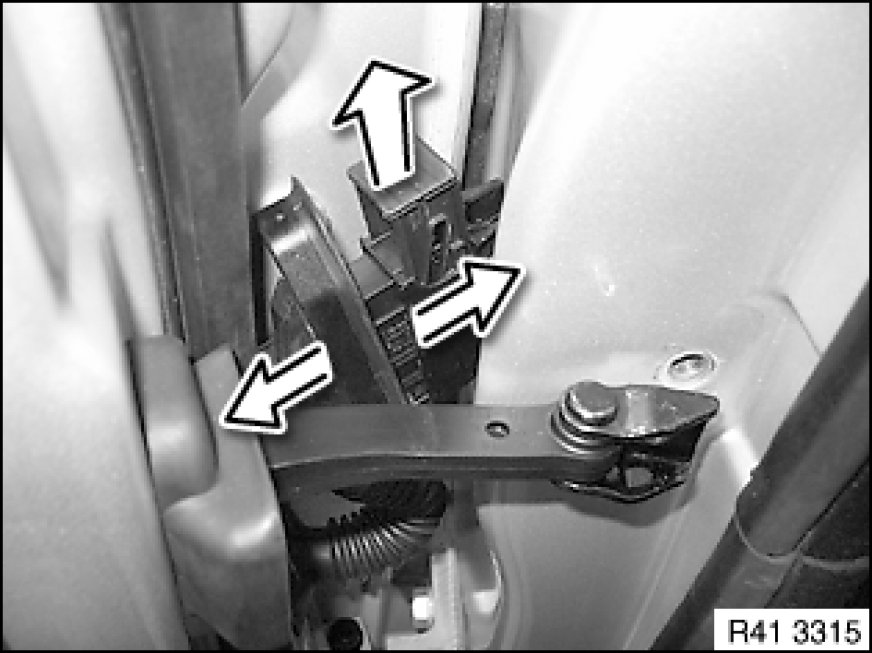

Pull plug connection from door pillar, unlock by pulling out bar and detach.
Unhinge door by moving upwards and placing it on a suitable surface.

Installation Note:
If necessary, adjust door Adjusting Door.
