Fault Profile M-ASK 1205 (M-ASK-BO User Interface or M-ASK-GW Gateway or M-ASK-NAV Navigation System)

Fault Patterns For Function Fault, Navigation System Business 12/05

The navigation system Business (M-ASK) is a complex control module with a large number of possible fault patterns. The following list shows known symptoms in the functional area M-ASK audio and navigation. Fault patterns from the functional areas of telephone and Telematic services as well as integrated heating / air conditioner control are not covered in this test module.

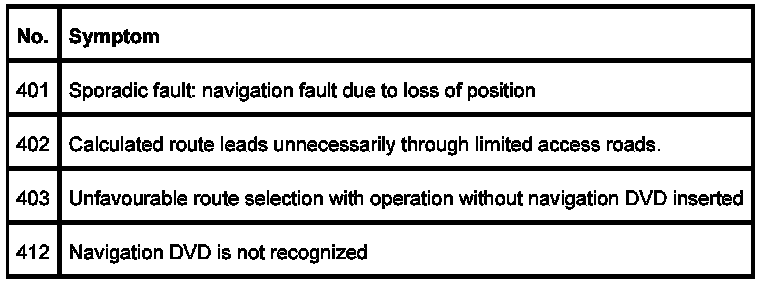

Navigation

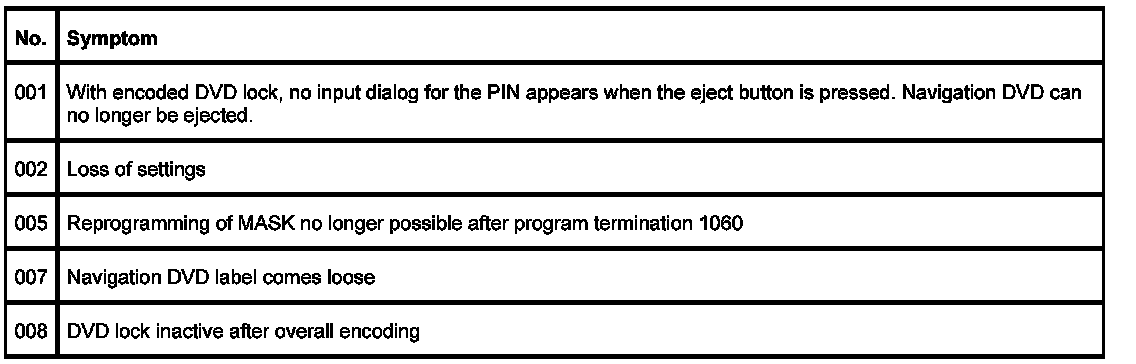

General

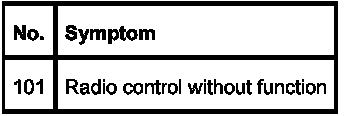

Operation

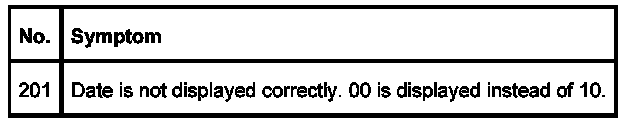

Display

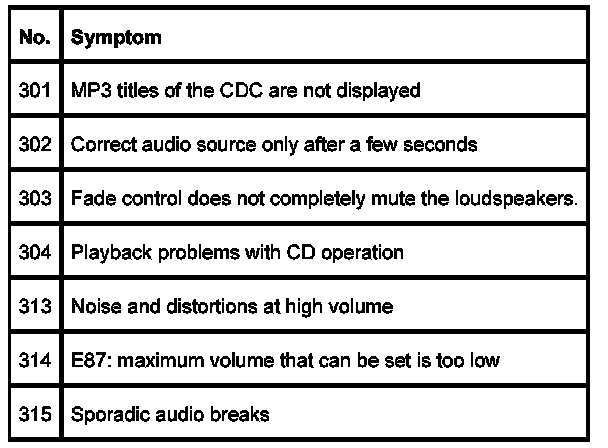

M-ASK audio
