65 13 100 Removing and Installing/Replacing Tweeter (In Upper Partition Panel)

65 13 100 Removing And Installing/replacing Tweeter (in Upper Partition Panel)

Special tools required:

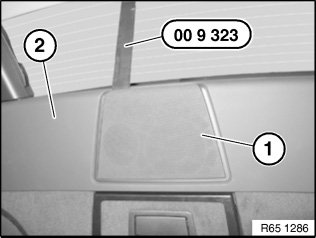

Lever out rear speaker cover (1) with special tool 00 9 323 from partition wall panel (2) and remove.







Installation:

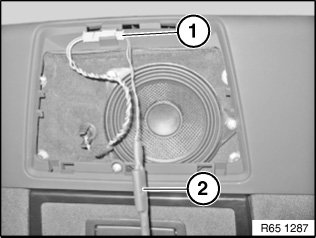

Lever out plug connection (1) at resistor (2) and disconnect.

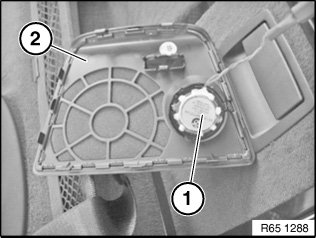

Unclip tweeter (1) from rear speaker cover (2) and remove.
