Antenna Amplifier: Service and Repair

65 20 110 Removing And Installing/replacing Aerial Amplifier (diversity)







IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary tasks:
- Remove luggage compartment trim on side panel

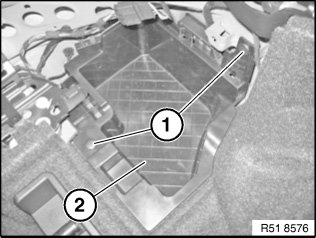

Lever out expansion rivets (1).
Feed out storage compartment (2) towards top.







Release screw (1).
Remove aerial amplifier (3).
Unlock plug connections (2) and disconnect.
If necessary, disconnect further plug connections.
