37 90 ... Troubleshooting, Leakage, Dynamic Drive
37 90 ... Troubleshooting, leakage, Dynamic Drive

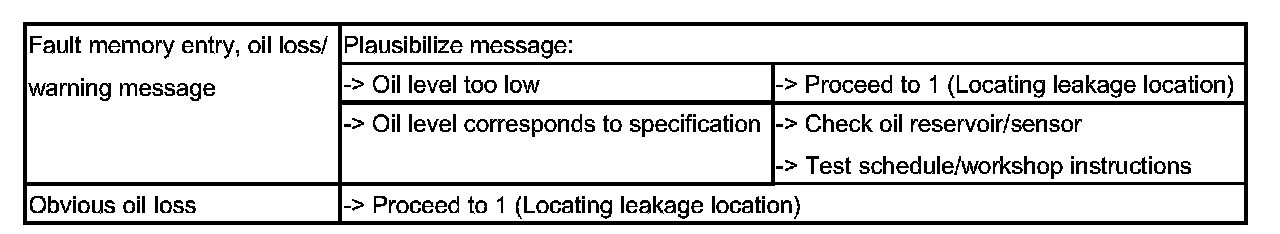

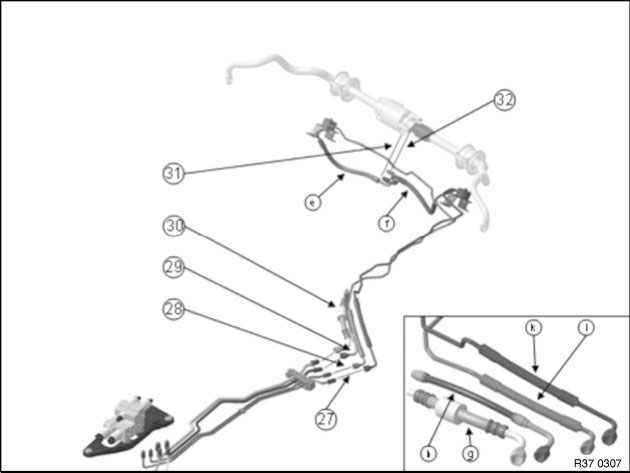

1. Locating leakage location, lines, front axle
Pressure lines:

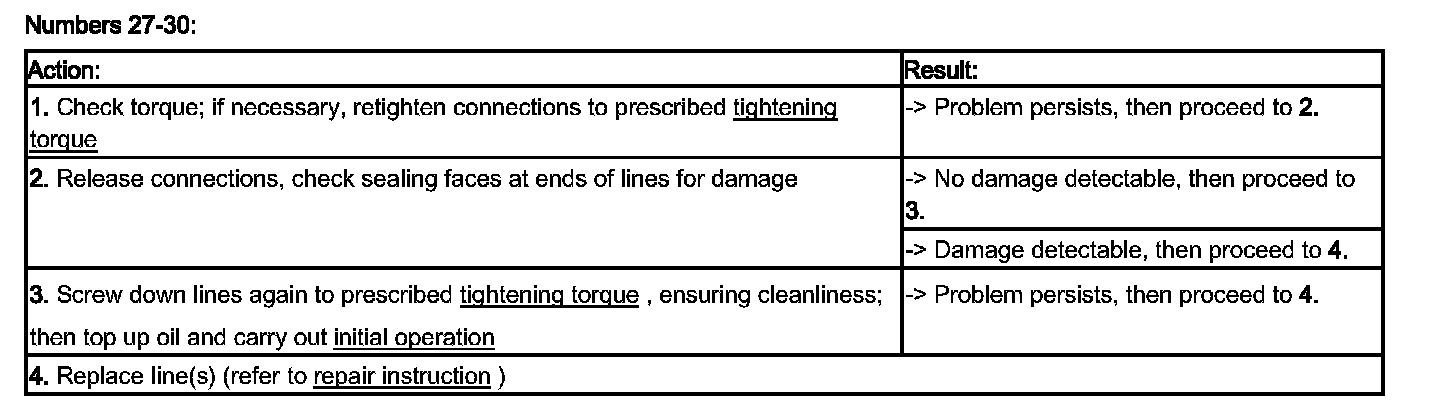

Numbers 27-30:

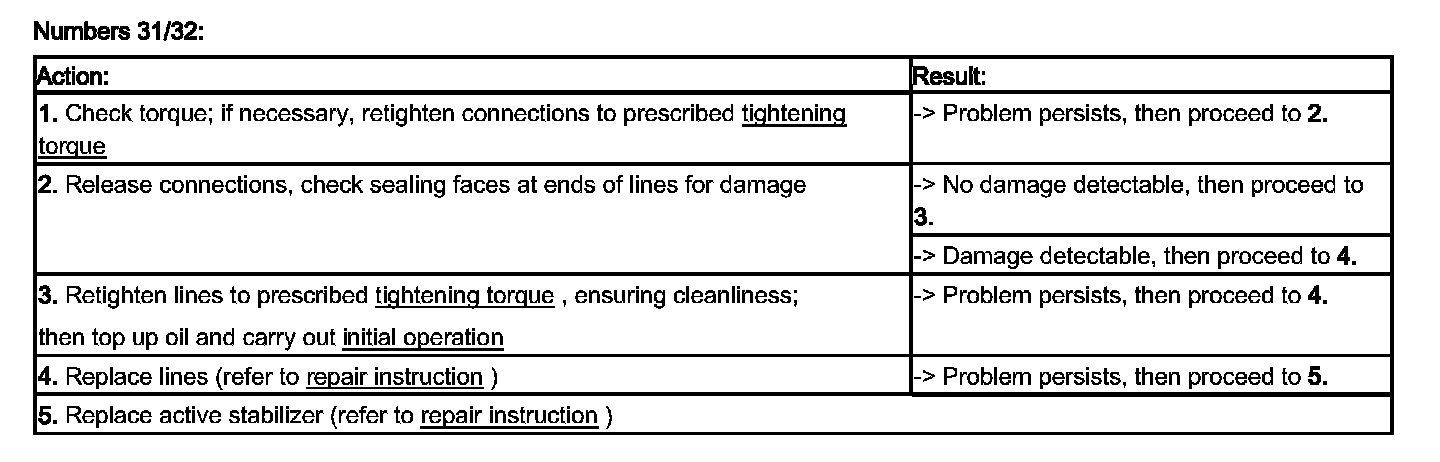

Numbers 31/32:

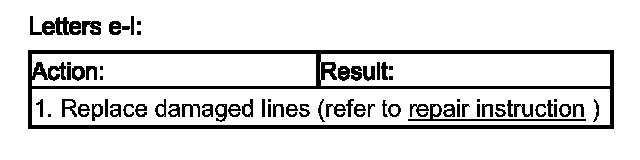

Letters e-l:
Lines, rear axle/underfloor
Numbers 1-6:

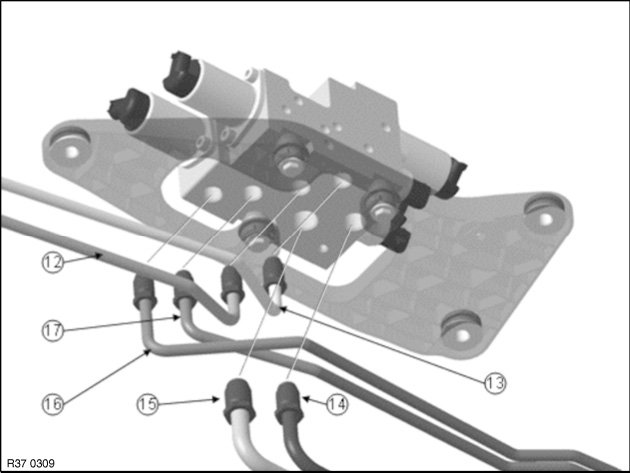

Valve block - connections:

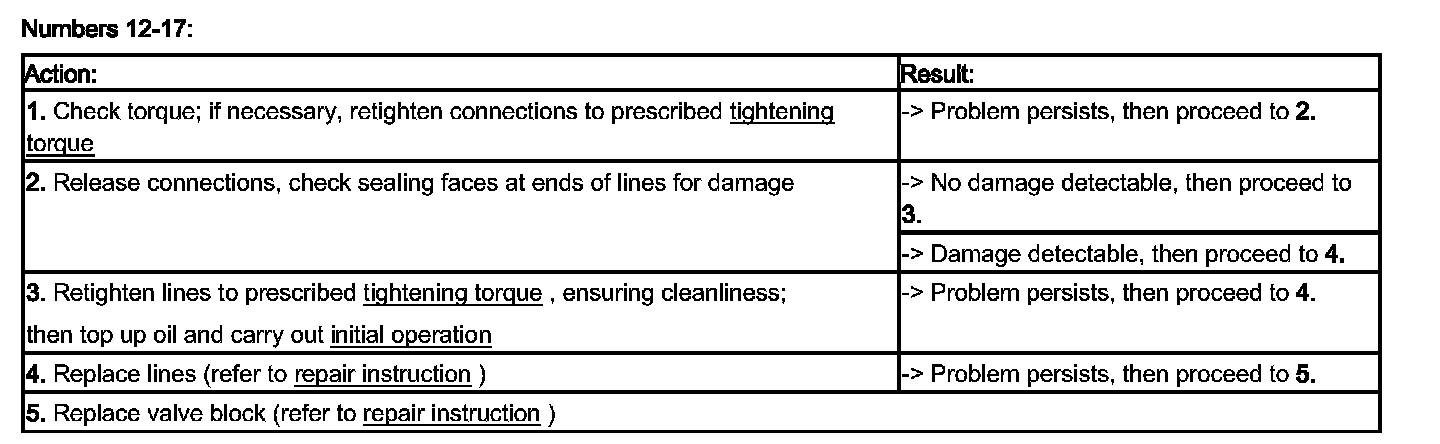

Numbers 12-17:

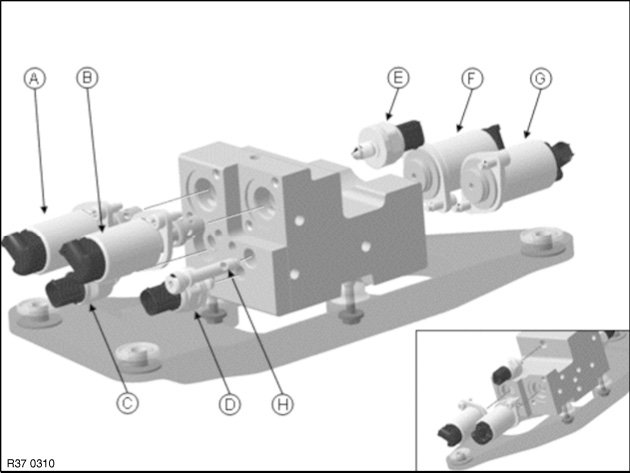

Valve block - add-on components:

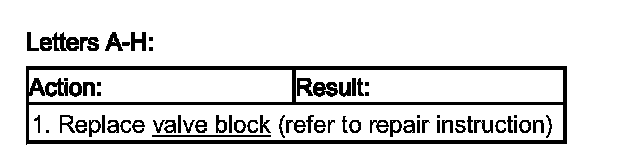

Letters A-H:

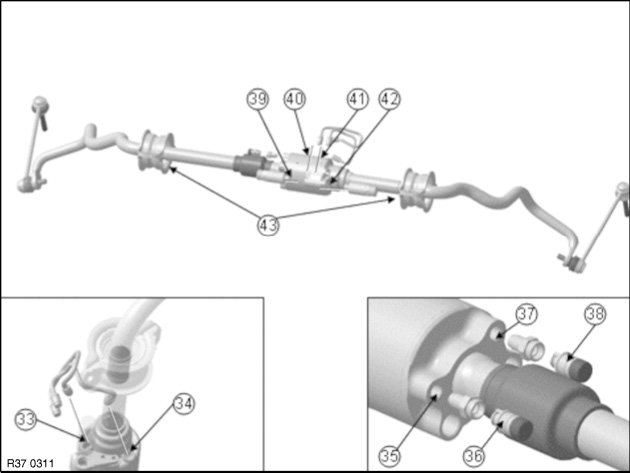

Active stabilizer, front axle

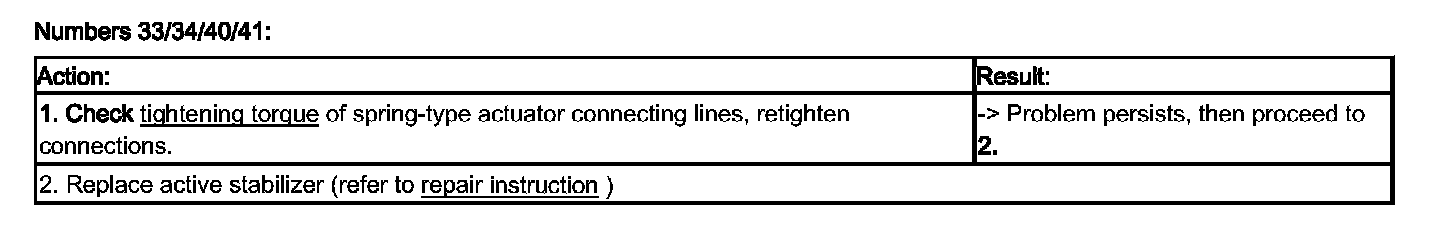

Numbers 33/34/40/41:

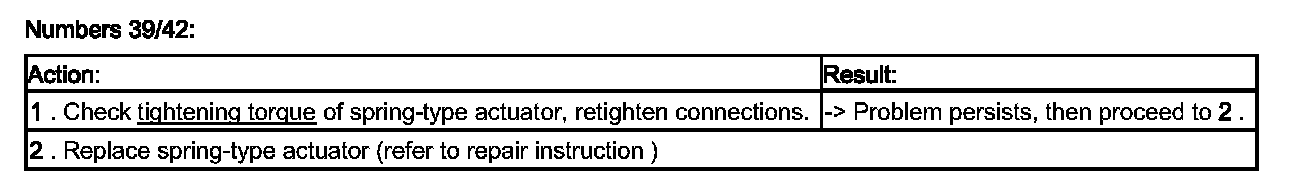

Numbers 39/42:
Numbers 35/37:

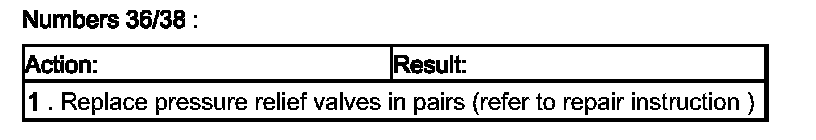

Numbers 36/38:

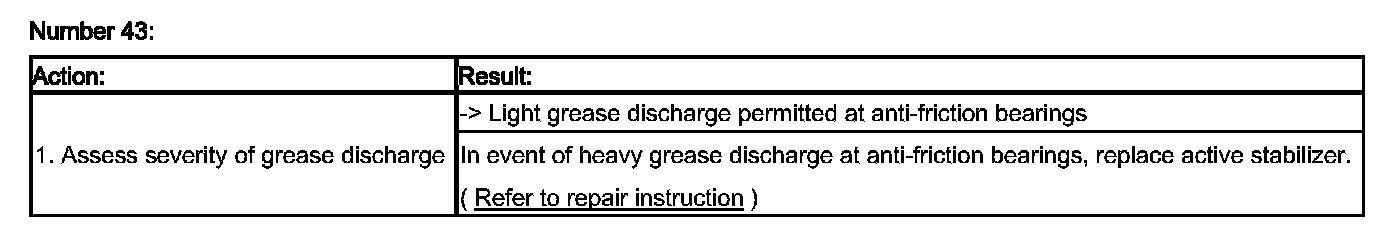

Number 43:

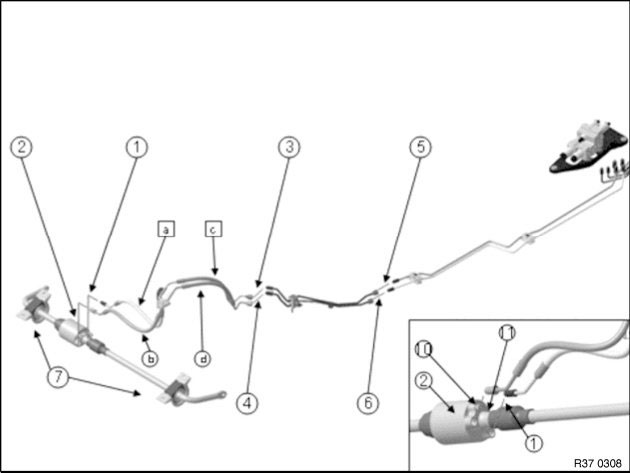

Active stabilizer, rear axle:

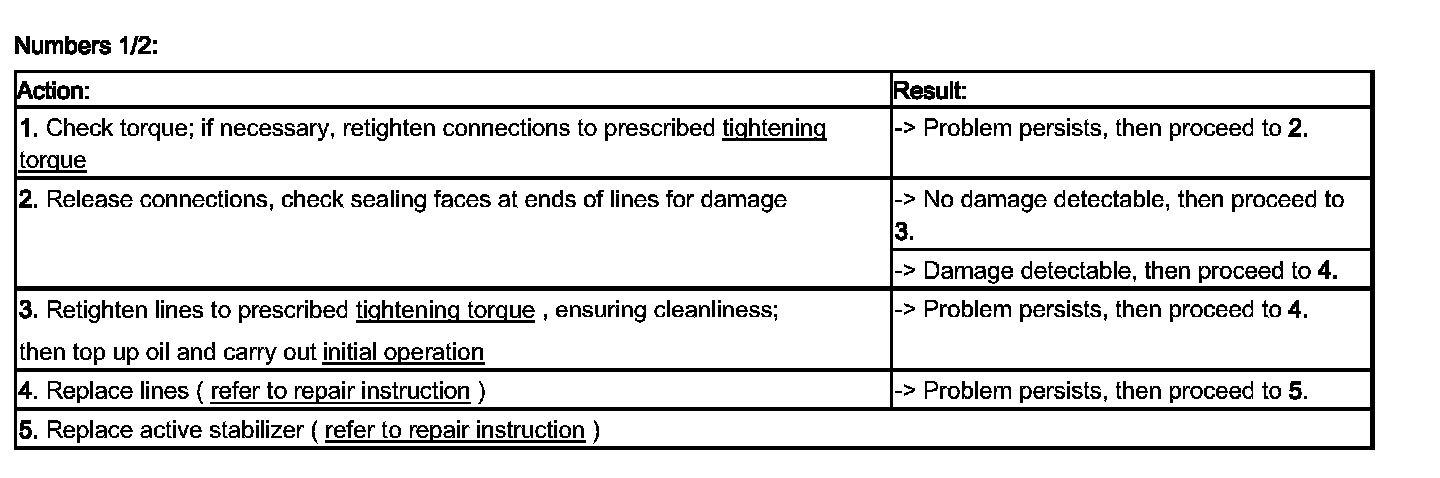

Numbers 1/2:

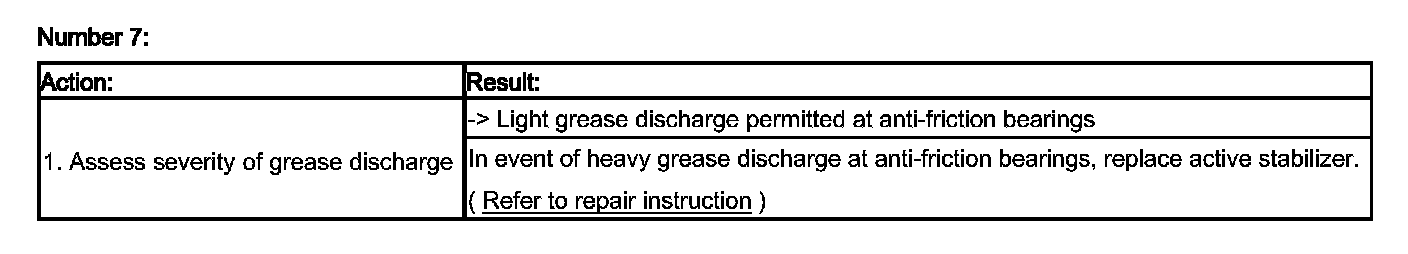

Numbers 7:

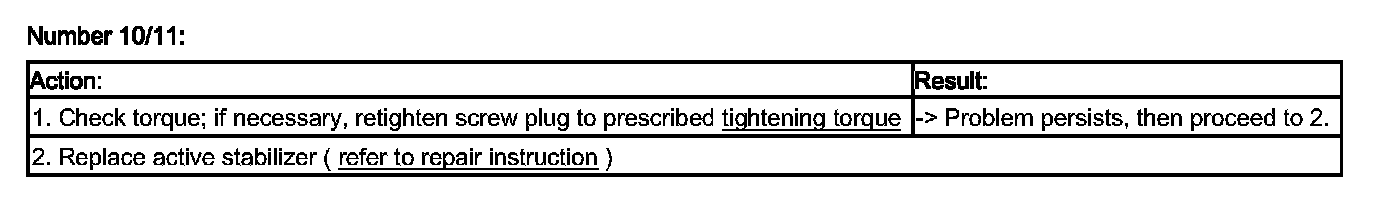

Number 10/11:
