84 21 541 Removing and Installing (Replacing) Hands-Free Charging Electronics (High)

84 21 541 Removing And Installing (Replacing) Hands-Free Charging Electronics (High)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Comply with notes and instructions on handling optical fibres.







Necessary preliminary tasks:
- Remove complete rear console

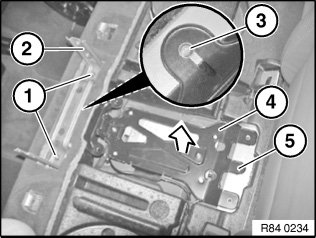

Release nuts (1) and remove rear console holder (2).
Release screw (3) and raise hands-free charging electronics holder (4) in direction of arrow.

Installation:
Make sure centering pin (5) is correctly seated in associated hold of hands-free charging electronics holder (4).

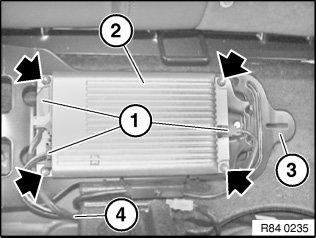

Disconnect plug connection (1).
Release all nuts.
Remove hands-free charging electronics (2) from hands-free charging electronics holder (3).

Installation:
Make sure wiring harness (4) is laid correctly.







Replacement:
Carry out vehicle programming/encoding.
If necessary, log mobile phone on to vehicle.
