Heater Core Temperature Sensor / Switch: Service and Repair

64 11 939 Replacing (One) Temperature Sensor For Heater







Necessary preliminary tasks:
- Remove front speaker carrier

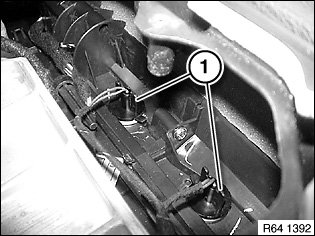

Unlock temperature sensor (1) and feed out.

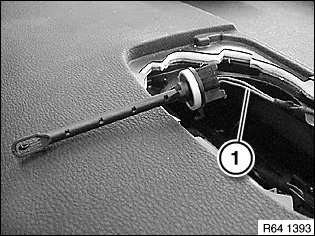

Disconnect cables (1).
Connect cables to new temperature sensor with butt connectors and heat-shrink sleeves.
Insulate cables with insulating tape.
