Discharge Air Temperature Sensor / Switch: Service and Repair

64 11 906 Removing And Installing/Renewing Ventilation Temperature Sensor (Centre Fresh-Air Grille)







Necessary preliminary tasks:
- Remove centre fresh-air grille

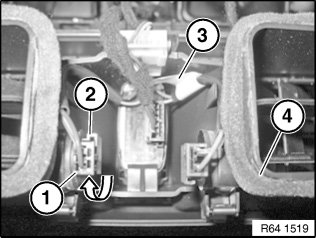

Disconnect plug connection (1).
Turn temperature sensor (2) in direction of arrow as far as it will go.
Remove temperature sensor (2) from centre fresh-air grille (4).

Installation:
On version with two temperature sensors, pay attention to lead identification (3):
- Always connect lead identification (3) on right from driver's viewpoint
Make sure temperature sensor (2) is correctly engaged in middle fresh-air grille (4).
