66 20 535 Removing and Installing/Replacing Rear Right Ultrasonic Transducer

66 20 535 Removing And Installing/Replacing Rear Right Ultrasonic Transducer







WARNING:
Scalding hazard.
Work on the exhaust system may only be carried out when it has cooled down.

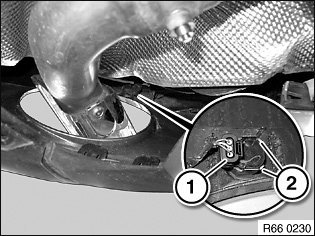

Disconnect plug connection (1) and unclip ultrasonic sensor from retaining tabs (2).

Installation:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation:

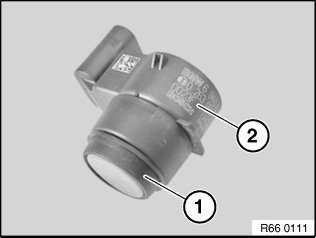

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).
