66 20 516 Removing and Installing/Replacing A Front Right Ultrasonic Sensor

66 20 516 Removing And Installing/Replacing A Front Right Ultrasonic Transducer







Necessary preliminary tasks:
- N54: Remove front bumper trim
- M57T2: Remove ornamental grille in bumper trim at front left

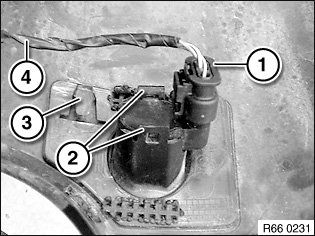

Disconnect plug connection (1).
Unlock catches (2) and remove ultrasonic transducer from holder.

Installation:
Make sure electrical lead (4) is correctly guided in cable fastener (3).







Installation:

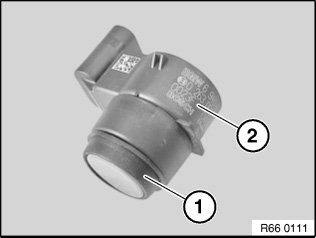

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
